Armadio rack 19' Equip Eco Mount, 12U, 540X400MM, RAL9005 nero

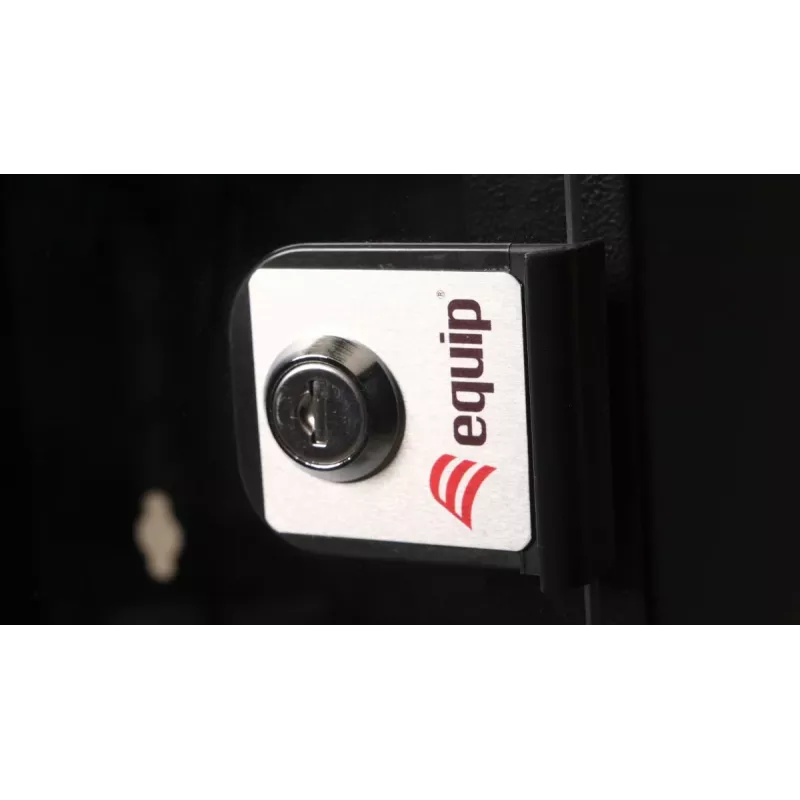

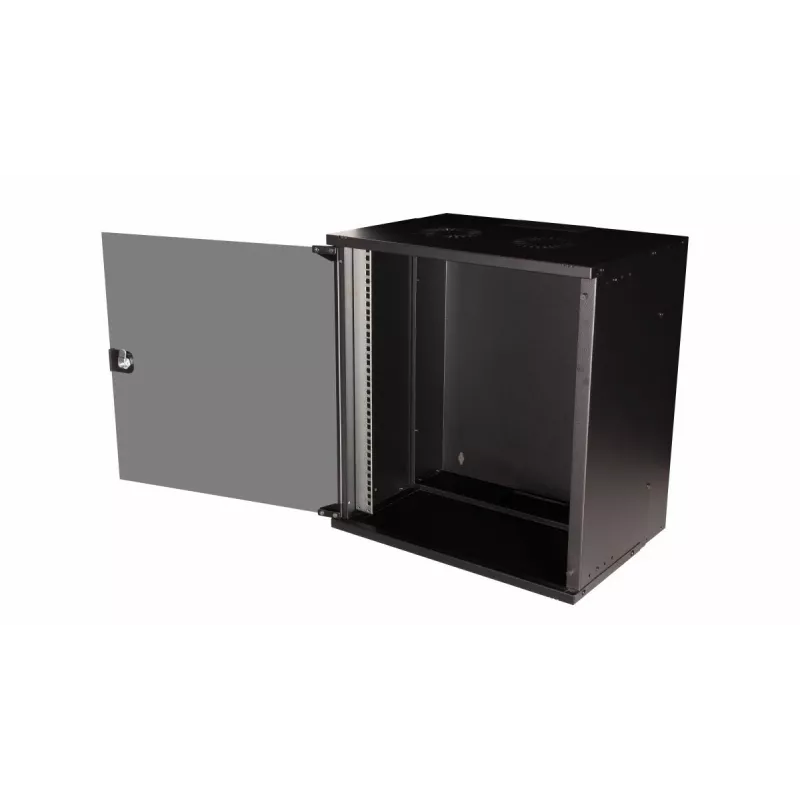

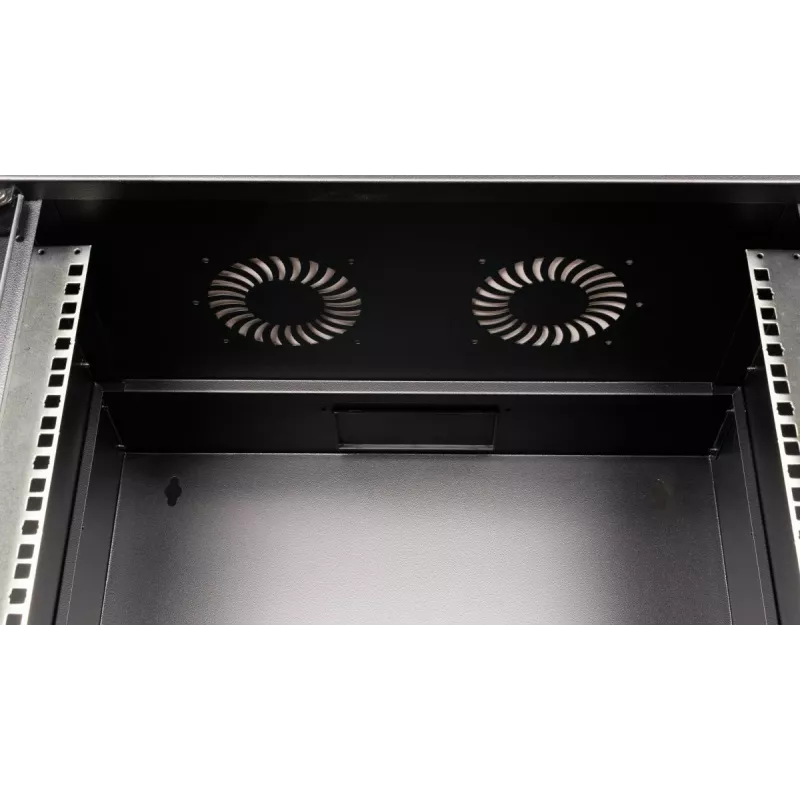

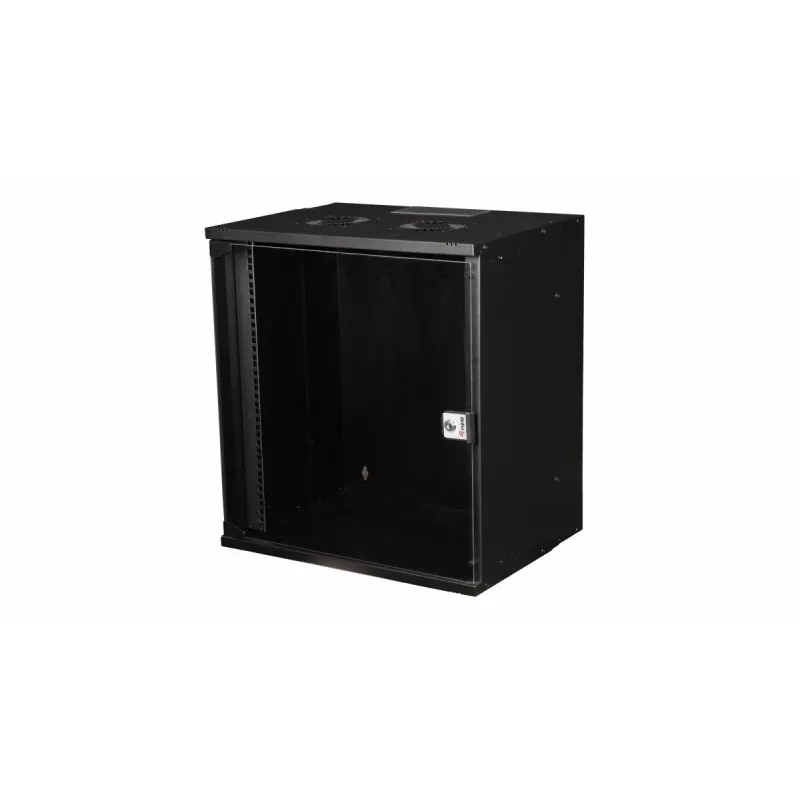

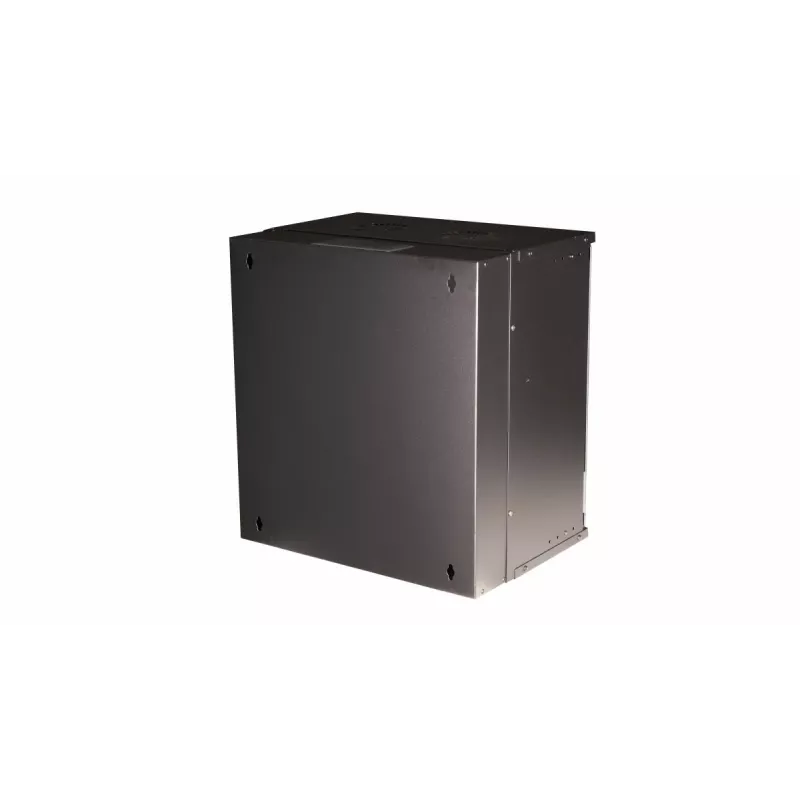

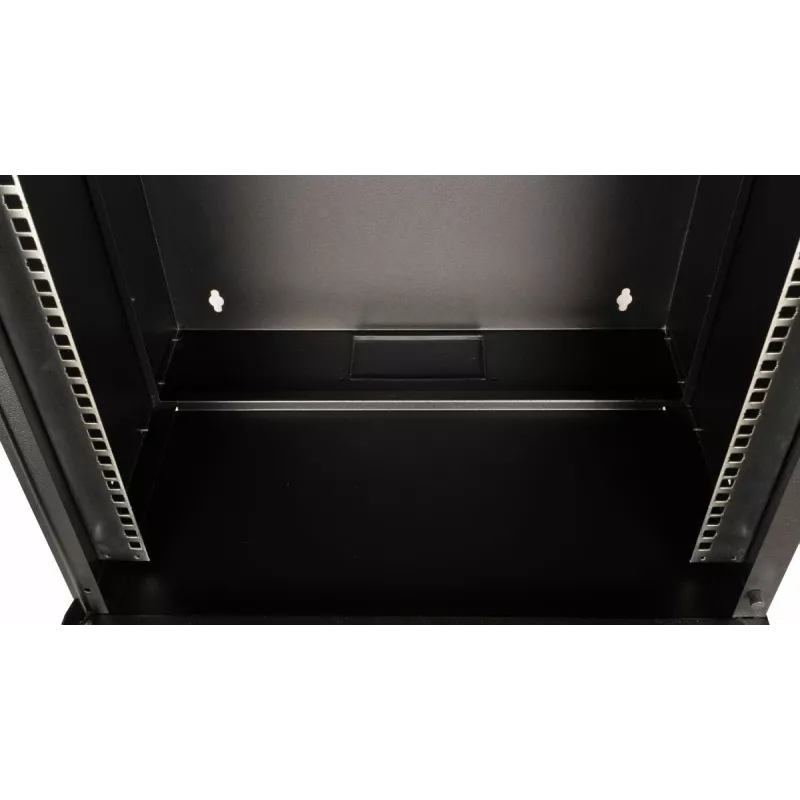

The Equip Eco Mount Wall mounted rack EWM-12-5440-B is a 19", 12U wall cabinet designed to organize and protect network equipment in compact spaces. Made from 1.5 mm steel, this black (RAL 9005) cabinet includes a key lock for security, top ventilation slots, and removable plastic covers for cable entry at both the top and bottom. The door can be reoriented from right to left. Maximum mounting depth is 380 mm; cabinet dimensions are 596 mm (height) × 149 mm (width) × 400 mm (depth) with a net weight of 12.5 kg. The cabinet is supplied unassembled with an instructional video for straightforward assembly.

Advantages

The Equip Eco Mount cabinet provides robust protection due to its 1.5 mm steel construction and a fitted key lock. Its compact 12U form factor and available 19" format make it suitable for space-efficient installations. Built-in ventilation slots and removable cable-entry covers support reliable airflow and neat cable routing. The reversible door and available accessories such as shelves and cable management tools increase installation flexibility and usability.

Suitable for

• Small server or network equipment installations in offices or server rooms
• Wall-mounted networking points in retail, branch or utility spaces
• Patching panels, switches and small UPS units within a 12U capacity

Key specifications

• Model: Equip Eco Mount EWM-12-5440-B
• Rack capacity: 12U, 19"
• Material thickness: 1.5 mm steel
• Colour: Black (RAL 9005)
• Mounting depth (max): 380 mm
• Dimensions (H×W×D): 596 × 149 × 400 mm
• Weight: 12.5 kg
• Lock: key lock included

How to use

Mount the cabinet securely to a suitable wall structure using appropriate anchors and fasteners (not included), observing the maximum mounting depth of 380 mm for installed devices. Route cables through the removable plastic covers at the top or bottom and secure them using cable management accessories. Install 19" equipment into the 12U rack space following standard rack-mounting practices. Use the door reorientation option if a different hinge side is required. Follow the provided assembly video and instructions for safe and correct assembly.

Recommendations

For best results, install the cabinet on a load-bearing wall and allow clearance for ventilation at the top. Use recommended cable management accessories and avoid overloading the cabinet beyond its intended 12U and mounting depth limits.
