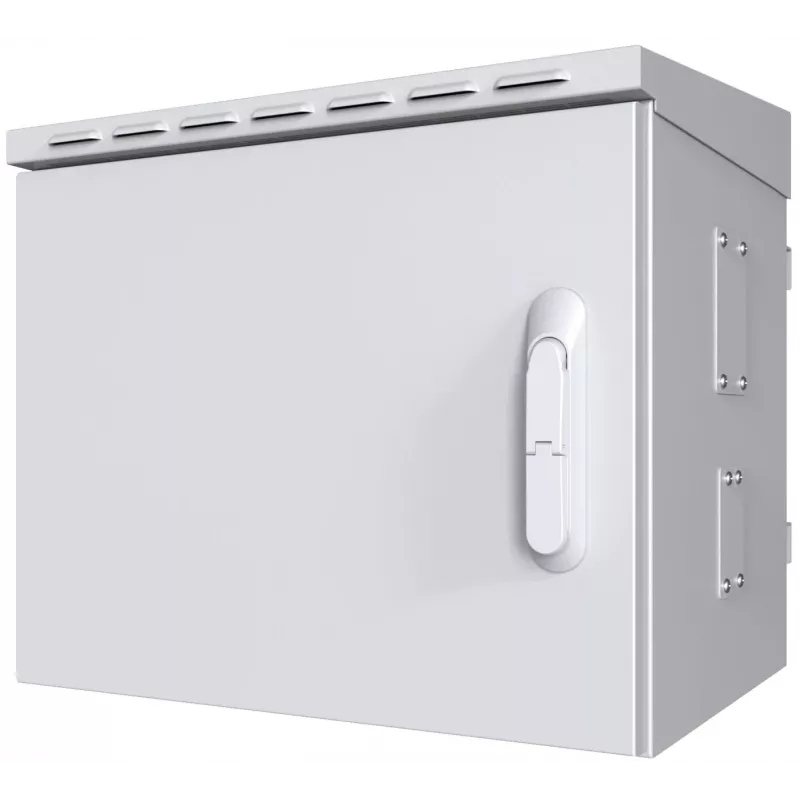

Armadio rack Lanview RCCTV005 0U bianco

The Lanview RCCTV005 Pole Type Camera Cabinet is a weatherproof outdoor rack cabinet (0U) designed for reliable protection and mounting of surveillance equipment. Constructed from galvanized steel and finished in RAL7035, the cabinet measures W:575 x D:425 x H:500 mm, weighs 29 kg and provides IP66 protection to shield internal devices from dust and water.

Advantages

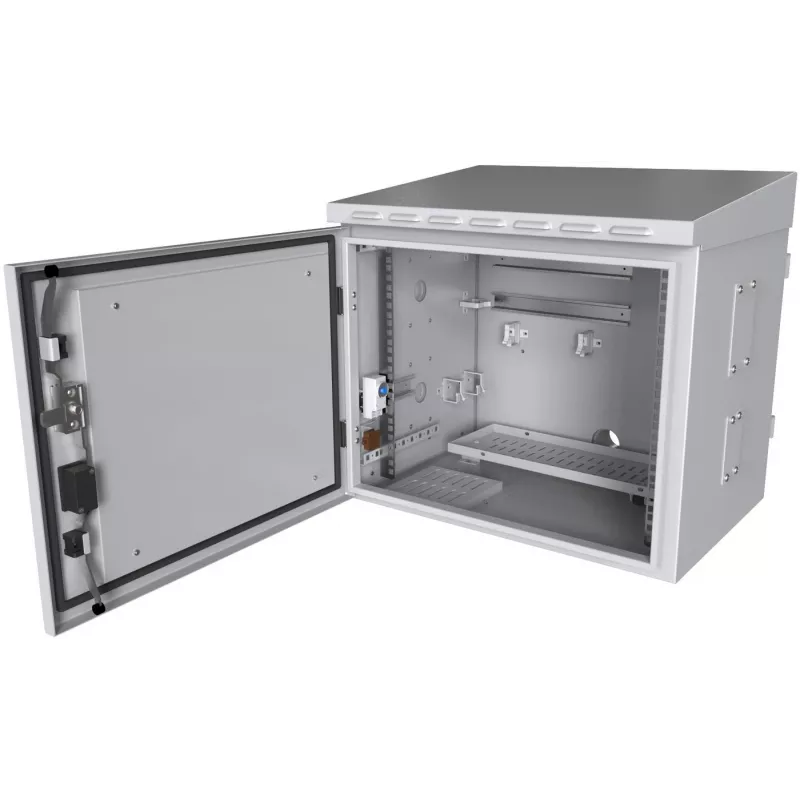

The cabinet features a double-wall structure with gaskets on the doors and top cap to create an insulated barrier against weather and dust. A fan module with two fans, a thermostat and a replaceable ventilation filter maintains airflow and helps control internal temperature while preventing dust and water ingress. DIN rails are fitted for secure mounting of electrical equipment and devices, and the hinged top cap allows internal access to fan modules and components without removing the entire top. Pole mounting brackets are included for straightforward installation.

Suitable for

• Outdoor CCTV camera enclosures
• Mounting network and surveillance equipment on poles
• Protecting active devices in harsh or dusty environments
• Small outdoor telecom or security installations requiring IP66 protection

Key specifications

• Model: Lanview RCCTV005
• MPN: RCCTV005, EAN: 5420016861689
• Material: Galvanized steel
• Finish: RAL7035
• Protection rating: IP66
• Dimensions (W x D x H): 575 x 425 x 500 mm
• Weight: 29 kg
• Capacity: 0U (pole type camera cabinet)
• Features: Double wall, door and top cap gaskets, fan module (2 fans + thermostat), replaceable ventilation filter, DIN rails, hinged top cap, pole mounting brackets included

How to use

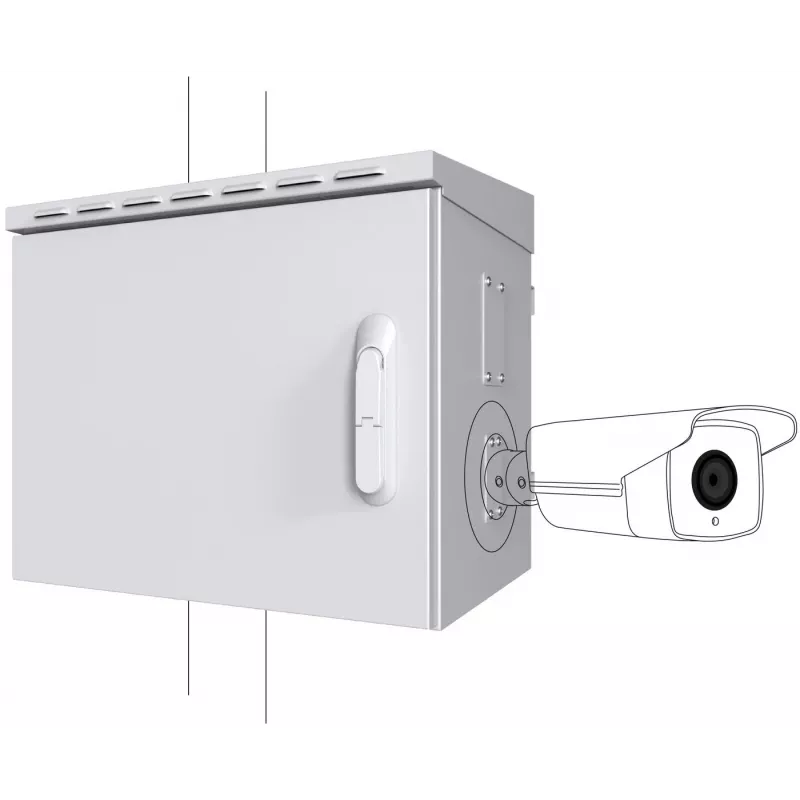

Mount the cabinet to a suitable pole using the included pole mounting brackets and the cabinet's connection apparatus. Install surveillance devices and electrical equipment on the provided DIN rails and connect power and signal cabling through the cabinet openings according to local wiring standards. Ensure the fan module and thermostat are connected and set to the required temperature range. Replace the ventilation filter as needed to maintain airflow while preventing dust and water ingress. Use the hinged top cap to access fan modules and internal components for maintenance.

Recommendations

Install the cabinet at a height and orientation that minimizes direct exposure to extreme elements where possible, follow local regulations for pole-mounted equipment, and perform periodic checks of gaskets, filters and the fan module to ensure continued IP66 protection and reliable operation.
