Armadio rack Lanview RDL36U88BL 36U nero 600kg IP20

With a static load capacity of 600 kg, this 36U rack cabinet is built to house dense networking and server equipment without compromise. The Lanview RDL36U88BL offers a spacious 800 mm width and 800 mm depth, providing ample room for cable management and high-density patching. Its IP20 rating and lockable doors ensure your hardware stays protected from dust and unauthorized access.

Overview

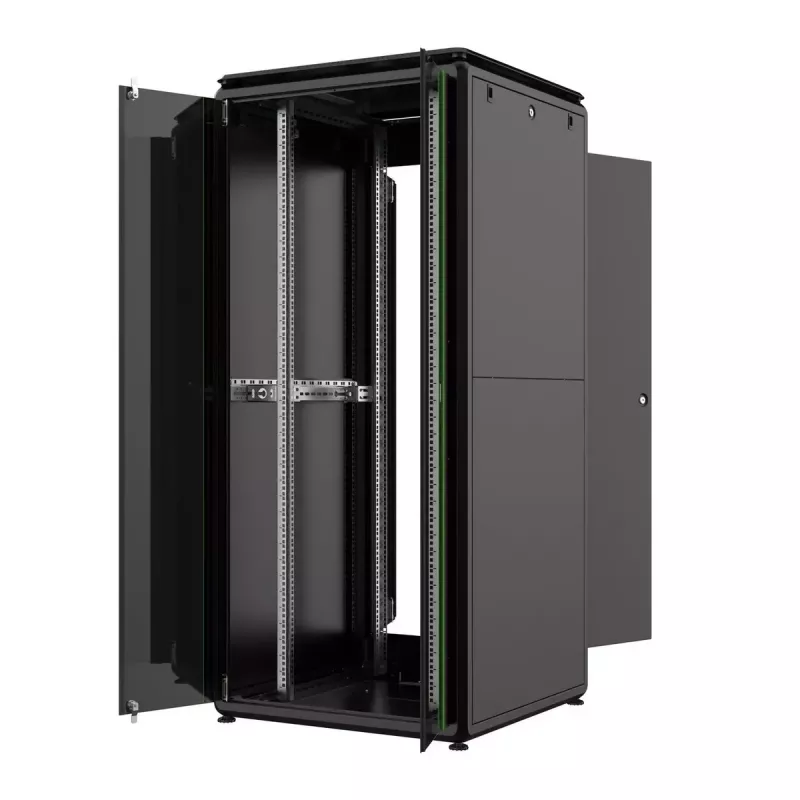

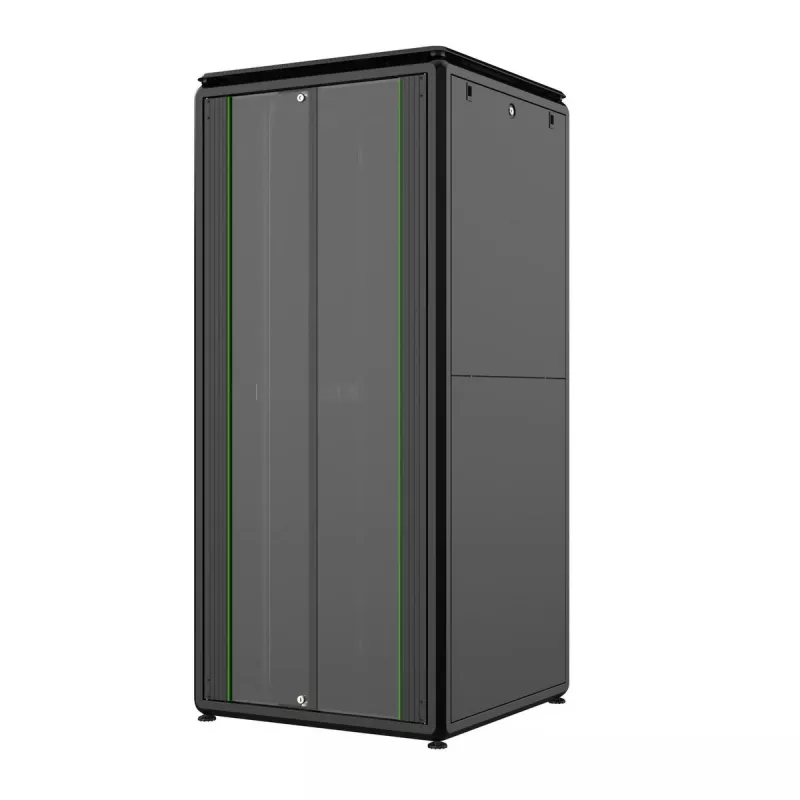

The Lanview RDL36U88BL is a free-standing 19-inch rack cabinet engineered for small to medium data rooms and IT closets. The cabinet features a welded steel frame with a powder-coated finish in black (RAL 9005), delivering durability and a professional appearance. The front door is made of tempered glass (4 mm, smoke-coloured) within a decorative metal frame, allowing visual monitoring of equipment while keeping it secure. The rear door is solid steel, and both doors, as well as the removable side panels, are lockable for controlled access.

What stands out

• Adjustable 19-inch mounting rails (front and rear) with a usable depth of approximately 680 mm, accommodating a wide range of equipment depths.
• Integrated cable management: wide bottom cable entry with rubber-edged sliding module and side tie-up brackets for neat routing.
• Passive ventilation with fan cutouts on the top panel, promoting airflow for heat dissipation.
• Flatpack option available for cost-effective shipping and easy on-site assembly.
• Includes adjustable leveling feet and heavy-duty castors for mobility and stability.

Technical details

• Rack capacity: 36U
• External dimensions (W x D x H): 800 x 800 x 1786 mm
• Static load capacity: 600 kg
• IP protection class: IP20
• Material: SPCC cold rolled steel, powder coated
• Front door: tempered glass, lockable
• Rear door: solid steel, lockable
• Side panels: removable, lockable
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Colour: Black (RAL 9005)

Our verdict

A robust and secure rack cabinet that balances load capacity, accessibility, and cable management—ideal for growing IT environments.
