Armadio rack Lanview RDL42U61BL 42U nero 600 kg IP20

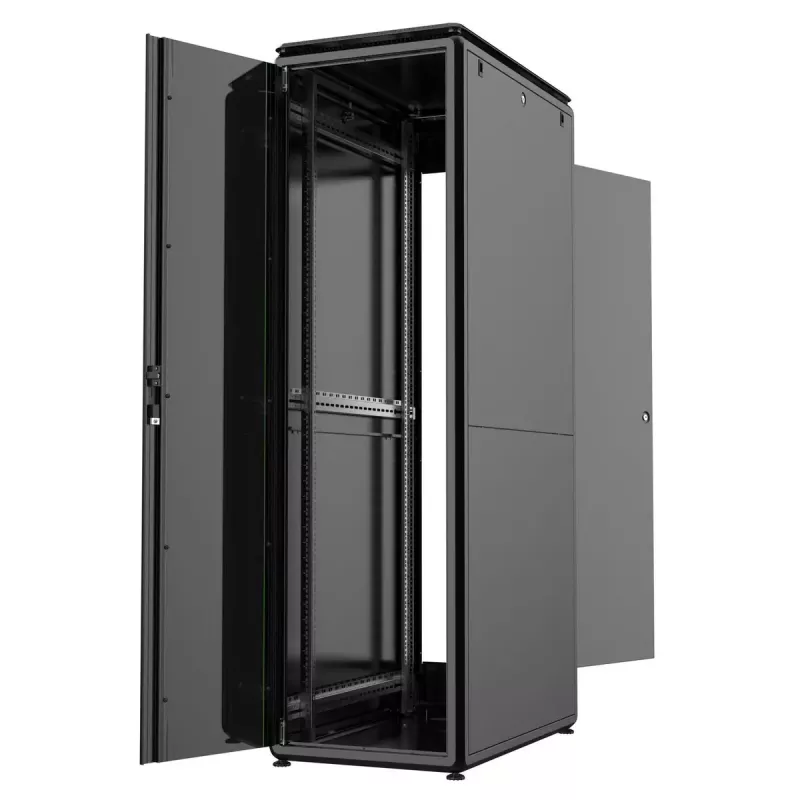

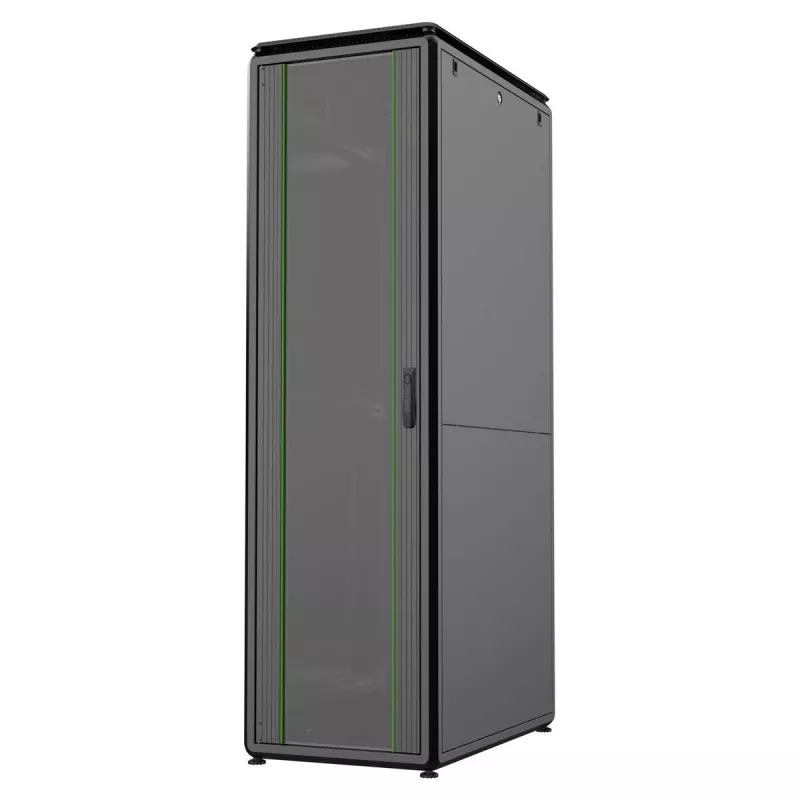

The Lanview RDL42U61BL is a freestanding 42U rack cabinet designed for indoor use (IP20) to house and organize networking and server equipment. It measures W:600 x D:1000 x H:2053 mm, supports up to 600 kg of load and comes in a black finish. The cabinet is built from a strong, robust frame with adjustable installation rails and a profile design that enables easy assembly and space-saving flatpack transport.

Advantages

The cabinet provides adjustable installation rails for depth flexibility and integrates vertical cable management modules to handle large cable masses. It features a wide rubber-edged sliding cable entry at the bottom chassis for protected cable routing and uses Tire-Up structured side brackets for secure cable fixation. Front access is via lockable, horizontally split tempered 4 mm smoke-coloured glass doors with metal frames, while removable rear and side panels use barrel-locking mechanisms for straightforward maintenance and relocation. The structure includes extra support points and cube omega reinforcements for improved strength.

Suitable for

• Server rooms and data centres with 19" rack equipment
• Office network closets and telecommunications rooms
• Environments requiring organized cable management and secure equipment storage
• Installations where flatpack transport or space-efficient storage is needed

Key specifications

• Model: Lanview RDL42U61BL
• Rack capacity: 42U
• Dimensions (W x D x H): 600 x 1000 x 2053 mm
• Maximum load: 600 kg
• IP rating: IP20 (indoor use)
• Weight: 97.3 kg
• Colour: Black
• Front door: Horizontally split, 4 mm tempered anti-static smoke glass, lockable

How to use

Place the freestanding rack on a level surface and assemble using basic tools following the included instructions; the flatpack option reduces shipping volume and simplifies transport. Adjust the installation rails to match equipment depth, fit the 19" devices into the rails, and secure them with standard cage nuts and screws. Route cables through the rubber-edged bottom entry and into the integrated vertical cable management modules, then fix cables with the provided side Tire-Up brackets to maintain order and strain relief. Use the lockable front door and removable side and rear panels for secure access during installation and maintenance.

Recommendations

For safe operation, keep the cabinet indoors in a dry, temperature-controlled environment consistent with IP20 protection. Distribute equipment weight evenly and do not exceed the 600 kg maximum load. Ensure proper airflow for heat-generating equipment and leave sufficient clearance around the cabinet for service access and ventilation.
