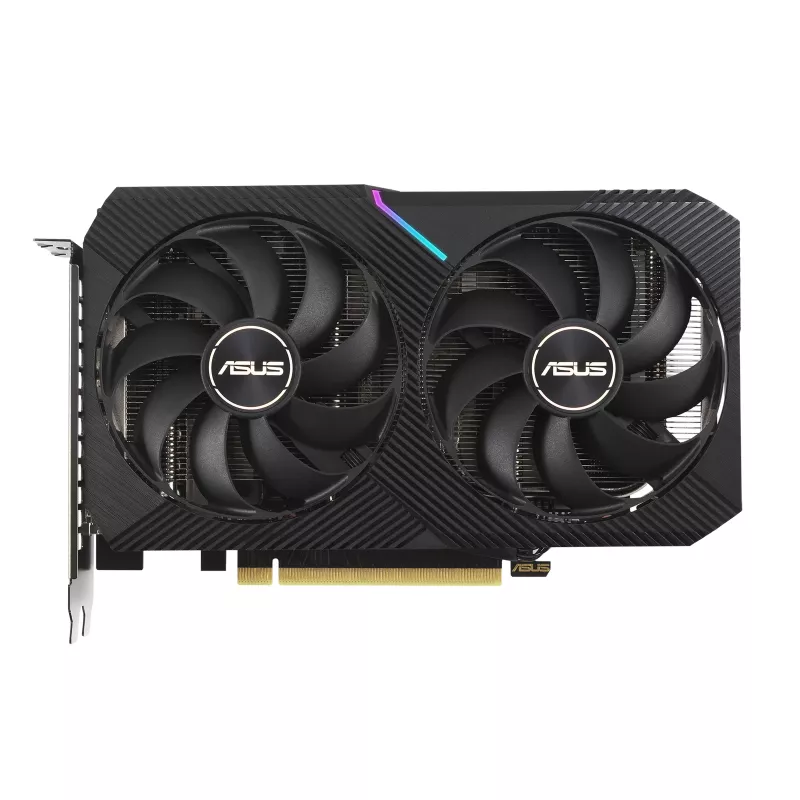

ASUS Dual GeForce RTX 3060 12GB GDDR6 scheda grafica

With 3584 CUDA cores and a boost clock of 1867 MHz in OC mode, the ASUS Dual GeForce RTX 3060 12GB GDDR6 delivers a massive leap in 1080p and 1440p gaming performance. Built on the NVIDIA Ampere architecture, it features 2nd gen RT cores for real-time ray tracing and 3rd gen Tensor cores for AI-accelerated DLSS.

Overview

The ASUS Dual GeForce RTX 3060 V2 is a dual-fan graphics card that combines robust cooling with a compact 2.7-slot design. It is equipped with 12GB of GDDR6 memory on a 192-bit bus, providing ample bandwidth for high-resolution textures and demanding workloads. The card supports PCI Express 4.0 and offers one HDMI 2.1 and three DisplayPort 1.4a outputs, enabling multi-monitor setups up to 4 displays.

What stands out

• Axial-tech fan design with 0dB technology for silent operation under light loads
• Auto-Extreme manufacturing ensures premium reliability and consistent quality
• Protective backplate reinforces the PCB and improves heat dissipation
• Dual BIOS switch for choosing between performance and quiet profiles
• GPU Tweak III software for real-time monitoring and overclocking

Technical details

• Graphics Engine: NVIDIA GeForce RTX 3060
• Video Memory: 12GB GDDR6
• Memory Interface: 192-bit
• Memory Speed: 15 Gbps
• Engine Clock (OC Mode): 1867 MHz (Boost)
• Engine Clock (Gaming Mode): 1837 MHz (Boost)
• CUDA Cores: 3584
• Bus Standard: PCI Express 4.0
• Outputs: 1x HDMI 2.1, 3x DisplayPort 1.4a
• HDCP Support: 2.3
• Maximum Digital Resolution: 7680 x 4320
• Maximum Display Support: 4
• Recommended PSU: 650W
• Power Connectors: 1x 8-pin
• Slot: 2.7 Slot
• Cooling: Dual Axial-tech Fans
• OpenGL: 4.6

Our verdict

The ASUS Dual RTX 3060 V2 is a well-rounded choice for gamers seeking high frame rates at 1080p with ray tracing enabled. Its efficient cooling and quiet operation make it suitable for small form factor builds, while the 12GB VRAM future-proofs it for upcoming titles.
