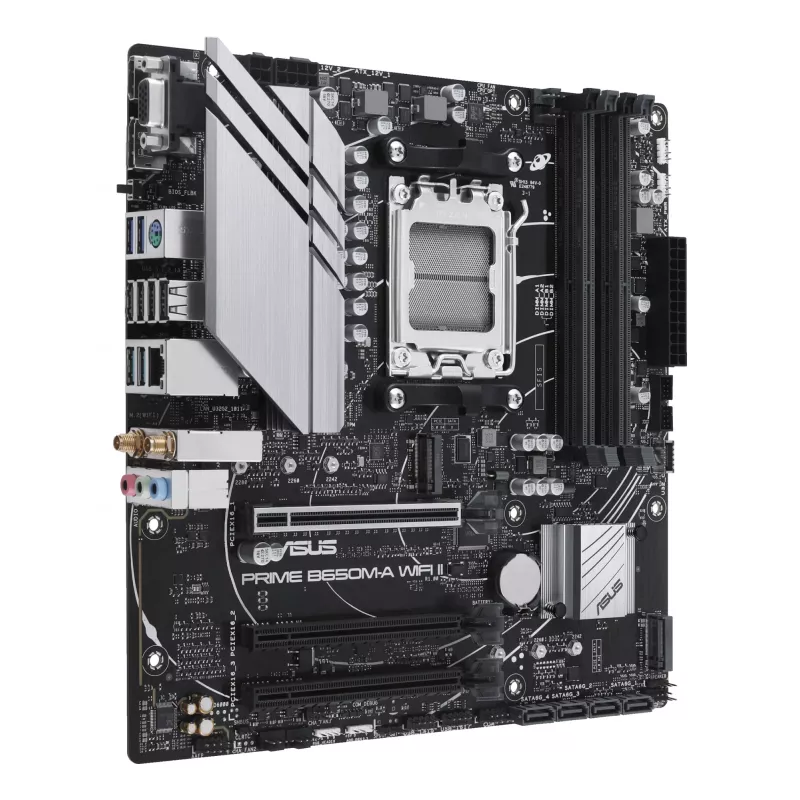

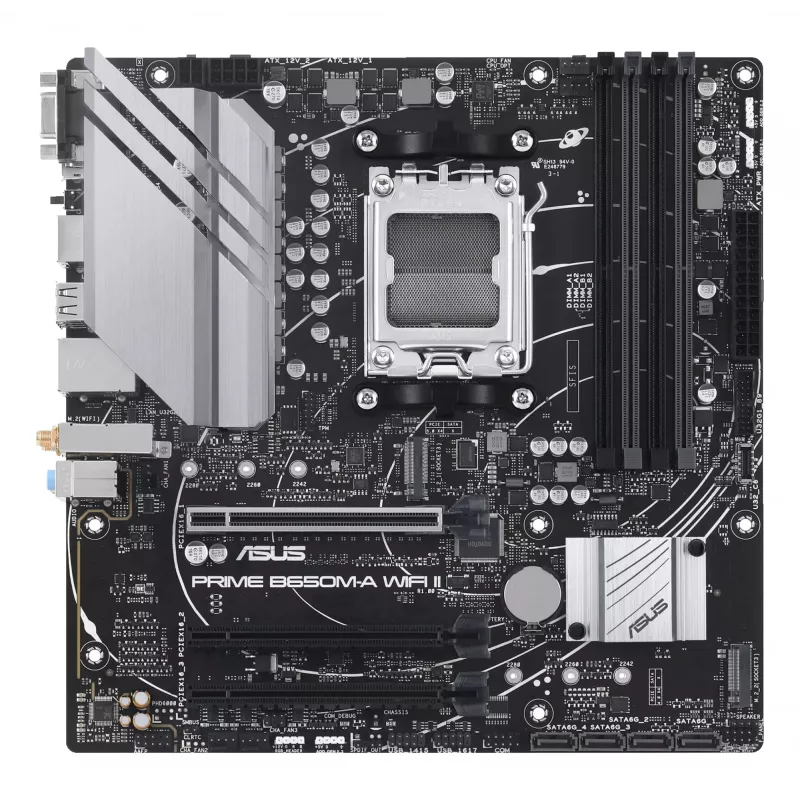

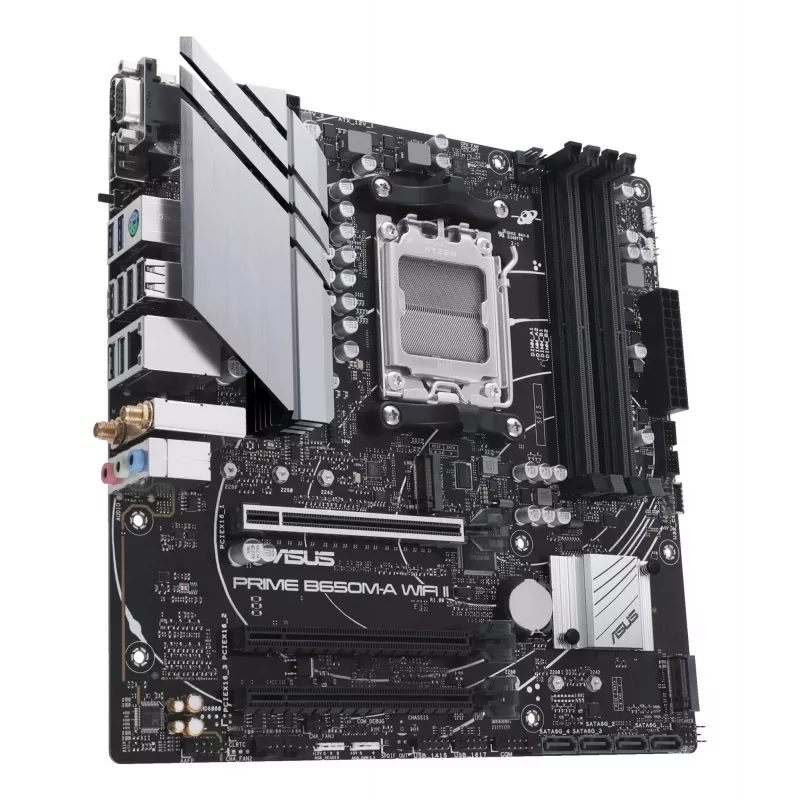

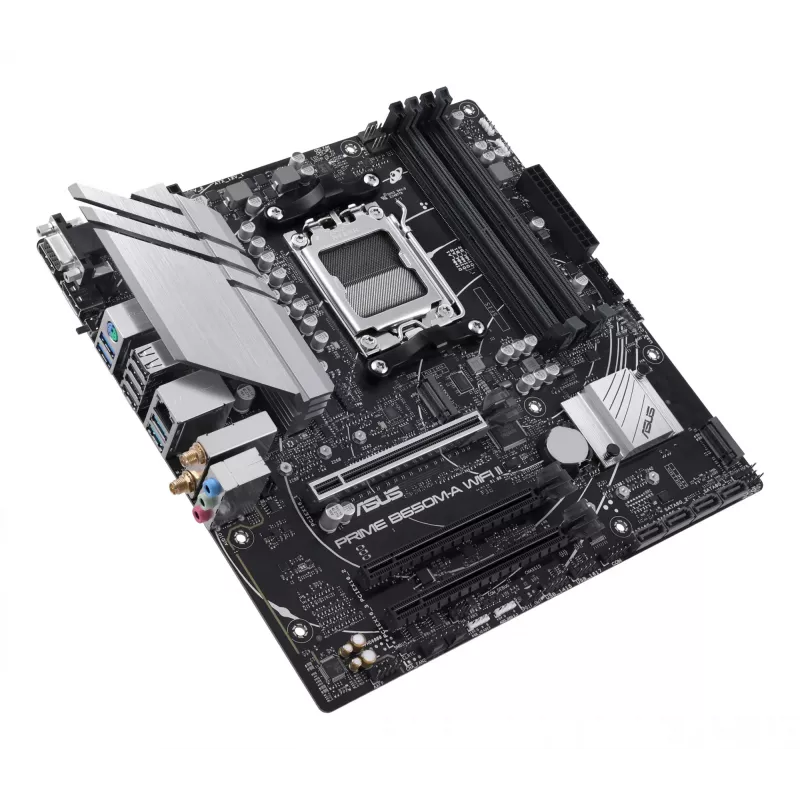

Name: ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
Brand: ASUS
SKU: 309753
Price: 153.31 EUR
Availability: InStock

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

36 mesi

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

0 recensioni • Scrivi una recensione

153,31 €

Guadagni +0,54 €

B650M-A WIFI IIASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI II provides users and PC DIY builders with a ran... Leggi di più

Qtà

Aggiungi al carrello

Aggiungi alla lista dei desideri Confronta questo prodotto

Stock 1 Codice 309753 Marca ASUS Modello 90MB1EG0-M0EAY0 Garanzia 3 anni

Spedizioni e resi

Consegna stimata Venerdì, Ottobre 16

Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato

Opzioni di pagamento

Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Anteprima rapida

Scheda madre ASRock Z790 PG Lightning DDR5 ATX LGA1700

163,15 €

IVA esclusa:133,73 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 ATX, DDR5, 4x DIMM, 4x M.2, Wi-Fi 7, LAN 2.5Gb

243,78 €

IVA esclusa:199,82 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre MSI B550M PRO-VDH AMD B550 Socket AM4 micro ATX

114,42 €

IVA esclusa:93,79 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre GIGABYTE A620M DS3H, A620, AM5, ATX

105,73 €

IVA esclusa:86,67 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre GIGABYTE X870E AORUS MASTER, AMD, socket AM5, ATX

517,19 €

IVA esclusa:423,93 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASRock B860M Pro RS WiFi — Intel B860, LGA 1851, micro ATX, DDR5, 4 DIMM, 3x M.2, 2.5Gb LAN, Wi‑Fi, Bluetooth

145,27 €

IVA esclusa:119,07 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASRock B850M Riptide WiFi AM5 AMD B850 4 X DDR5 1 X HDMI 2.1 Tmds/frl 8g 1 X DisplayPort 1.4 With DSC mATX

181,00 €

IVA esclusa:148,36 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre ASUS X870 MAX GAMING WIFI7 ATX — AMD X870, socket AM5, DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, Bluetooth 5.4, 3 M.2, 2x USB4 Gen3x2

307,05 €

IVA esclusa:251,68 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

ASRock B850M Pro-A AM5 scheda madre Micro-ATX

130,14 €

IVA esclusa:106,67 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

Anteprima rapida

Scheda madre MSI PRO B850M-P WIFI micro ATX, AMD B850, Socket AM5, 4×DDR5 DIMM, 3×M.2, Wi‑Fi 7, 5Gb LAN

164,16 €

IVA esclusa:134,56 €

Aggiungi al carrello Aggiungi alla lista dei desideri Confronta questo prodotto

B650M-A WIFI II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING

PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Six-Layer PCB Design

Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.

Stack Cool 3+

2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

Cooler by Design

Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options

DDR5 Performance Enhancement

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A WIFI II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. arrow.

For those who want to fly past stock DDR5 speeds, the PRIME B650M-A WIFI II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI

ASUS PRIME B650M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Punti salienti

AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
AMD Socket AM5 AMD Ryzen™ 7
PC micro ATX AMD B650 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA RAID support Number of storage drives supported: 2
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.2

Specifiche

Bluetooth

Yes

Canali di memoria

Dual-channel

Canali di uscita audio

7.1 channels

Caratteristiche speciali

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen^™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Cavi inclusi

SATA

Chipset scheda madre

AMD B650

Compatibilità ECC

ECC & Non-ECC

Componente per

Connettore audio

Yes

Connettore di alimentazione 12V

Yes

Connettore di alimentazione ATX (24 pin)

Yes

Connettore di alimentazione EPS (8 pin)

Yes

Connettore di alimentazione ventola

Yes

Connettore pannello frontale

Yes

Connettore TPM

Yes

Connettore uscita S/PDIF

Yes

Connettore ventola CPU

Yes

Connettori di alimentazione periferiche (Molex) (4 pin)

Connettori USB 2.0

Connettori USB 3.2 Gen 1 (3.1 Gen 1)

Connettori USB 3.2 Gen 2 (3.1 Gen 2)

Dimensione memoria BIOS

256 Mbit

Ethernet LAN

Yes

Famiglia chipset scheda madre

AMD

Formato scheda madre

micro ATX

Header pin LED RGB

Yes

Ingresso linea

Yes

Ingresso microfono

Yes

Interfacce delle unità di archiviazione supportate

M.2, PCI Express 4.0, PCI Express 5.0, SATA

Larghezza

244 mm

Livelli RAID

0, 1, 10

Memoria interna massima

192 GB

Memoria unbuffered

Yes

Numero di connettori COM

Numero di connettori per ventole case

Numero di connettori SATA

Numero di connettori SATA III

Numero di HDD supportati

Numero di porte DisplayPort

Numero di porte DVI-D

Numero di porte HDMI

Numero di porte USB 2.0

Numero di porte USB 3.2 Gen 1 (3.1 Gen 1) Type-A

Numero di porte USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Numero di porte USB 3.2 Gen 2 (3.1 Gen 2) Type-A

Numero di porte USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Numero di porte VGA (D-Sub)

Numero di slot di memoria

Numero di slot M.2 (M)

Numero di unità di archiviazione supportate

Numero totale di connettori SATA

Porte Ethernet LAN (RJ-45)

Produttore del processore

AMD

Profondità

244 mm

Pulsante Clear CMOS

Yes

Serie di processori compatibili

AMD Ryzen™ 7

Sistemi operativi Windows supportati

Windows 10, Windows 11

Slot PCI Express x16 (Gen 4.x)

Socket del processore

Socket AM5

Software in dotazione

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Standard Wi-Fi

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Standard Wi-Fi massimo supportato

Wi-Fi 6 (802.11ax)

Supporto RAID

Yes

Tipi di memoria supportati

DDR5-SDRAM

Tipi di unità di archiviazione supportate

HDD & SSD

Tipo di BIOS

UEFI AMI

Tipo di connettore USB

USB Type-A

Tipo di fonte di alimentazione

ATX

Tipo di interfaccia Ethernet

2.5 Gigabit Ethernet

Tipo di slot di memoria

DIMM

Uscita audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

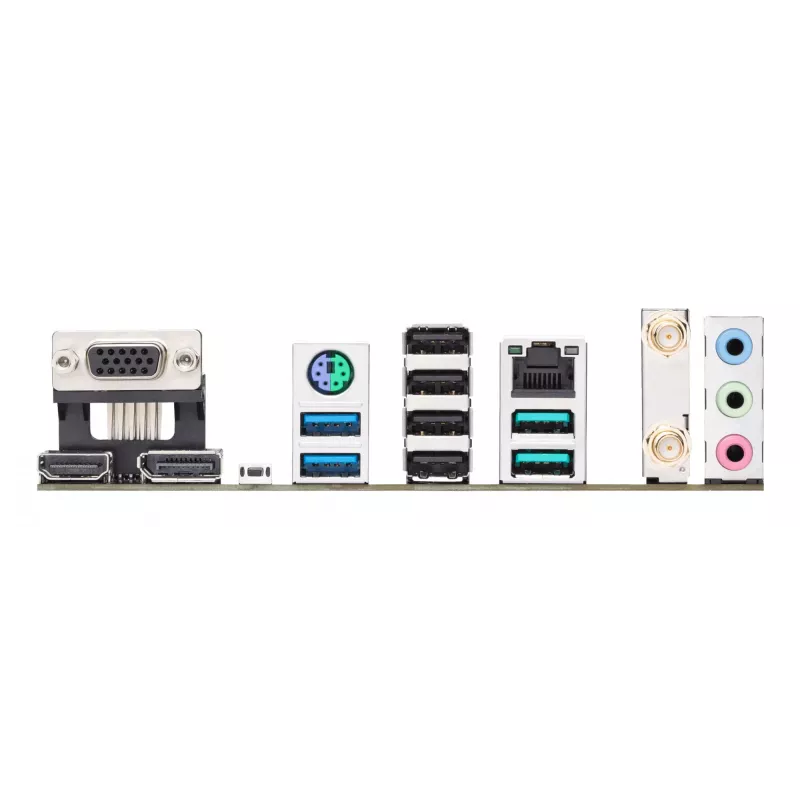

Uscita grafica

1 x DisplayPort**
1 x VGA port
1 x HDMI^® port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^® 2.1.

Uscite cuffie

Velocità di clock della memoria supportate

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Versione Bluetooth

5.2

Wi-Fi

Yes
