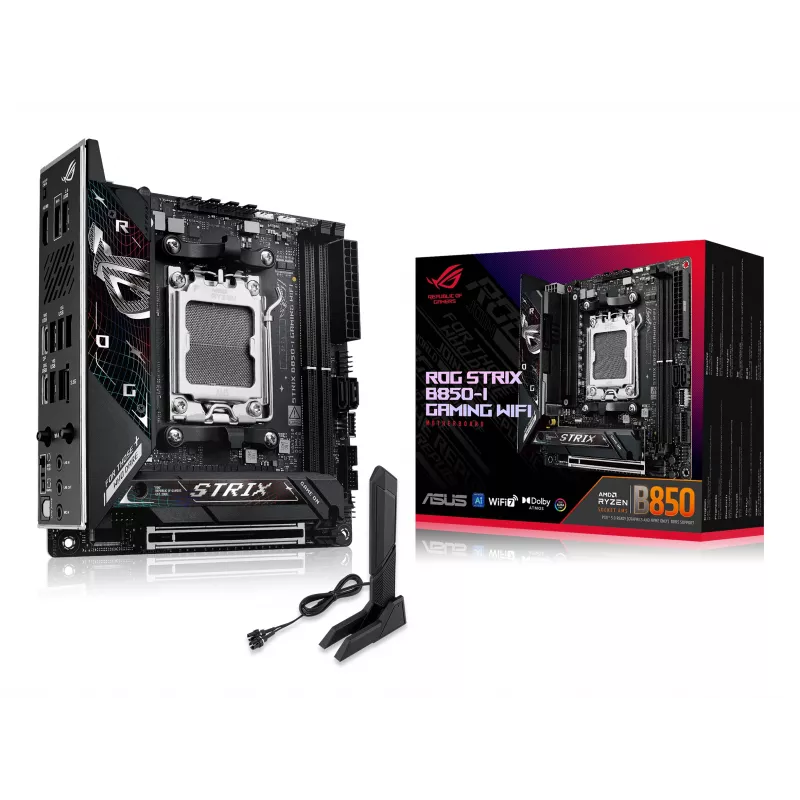

ASUS ROG STRIX B850-I GAMING WIFI scheda madre socket AM5

The ROG STRIX B850-I GAMING WIFI redefines what a Mini-ITX board can deliver, packing enthusiast-grade power into a compact footprint without compromise. While many small-form-factor boards cut corners on VRM design or connectivity, this ASUS model brings a 10+2+1 power stage array with 70A stages, ensuring stable power for the latest AMD Ryzen 7000 and 8000 series processors. Its PCIe 5.0 x16 slot and dual M.2 slots (one PCIe 5.0, one PCIe 4.0) mean you can build a future-proof gaming rig in a tiny case. The integrated Intel 2.5Gb Ethernet and Wi-Fi 6E with Bluetooth 5.2 deliver low-latency networking, while the ROG SupremeFX ALC4080 audio codec provides immersive 7.1-channel sound. With support for up to 64GB of DDR5 memory at speeds beyond 6400MHz (OC), this board is ready for high-performance gaming and content creation.

Highlights

• AMD AM5 socket supports Ryzen 7000/8000 series processors
• Mini-ITX form factor for compact yet powerful builds
• 10+2+1 power stages with 70A DrMOS for robust power delivery
• PCIe 5.0 x16 slot and dual M.2 slots (PCIe 5.0 + PCIe 4.0)
• DDR5 memory support up to 64GB, overclockable to 6400+ MHz
• Intel 2.5Gb Ethernet and Wi-Fi 6E (802.11ax) with Bluetooth 5.2
• ROG SupremeFX ALC4080 audio for 7.1 surround sound
• ASUS Aura Sync RGB lighting for custom aesthetics

In daily use

This motherboard excels in scenarios where space is at a premium but performance cannot be sacrificed. Whether you're building a LAN party rig, a home theater PC, or a powerful workstation, the B850-I GAMING WIFI handles it all. The robust VRM keeps temperatures in check even under sustained loads, and the dual M.2 slots allow for fast NVMe storage without cable clutter. The 2.5Gb Ethernet provides a stable wired connection for competitive gaming, while Wi-Fi 6E offers high-speed wireless flexibility. The SupremeFX audio delivers clear, detailed sound for games, movies, and music, and the Aura Sync RGB lets you match the board's lighting with other compatible components for a cohesive look.

Full specifications

• CPU Socket: AMD AM5
• Chipset: AMD B850
• Form Factor: Mini-ITX
• Memory: 2 x DDR5 DIMM slots, max 64GB, speeds up to 6400+ (OC)
• Expansion Slots: 1 x PCIe 5.0 x16
• Storage: 2 x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4), 2 x SATA 6Gb/s
• Networking: Intel 2.5Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2
• Audio: ROG SupremeFX 7.1 Surround Sound, ALC4080 codec
• Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A
• Video Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4
• Power Connectors: 1 x 24-pin ATX, 1 x 8-pin EPS
• VRM: 10+2+1 power stages, 70A
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• RGB: ASUS Aura Sync

Final note

The ASUS ROG STRIX B850-I GAMING WIFI is a top-tier choice for builders who demand maximum performance in a minimal footprint. Its premium components and extensive connectivity make it a standout option in the Mini-ITX category.
