ATEN 1U profondità ridotta USB HDMI guida singola full

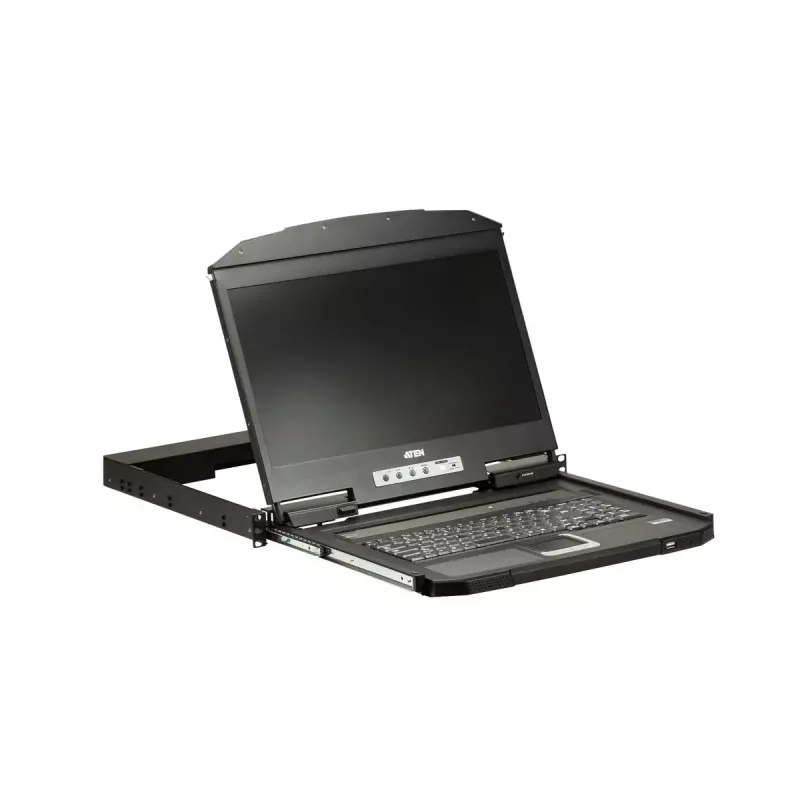

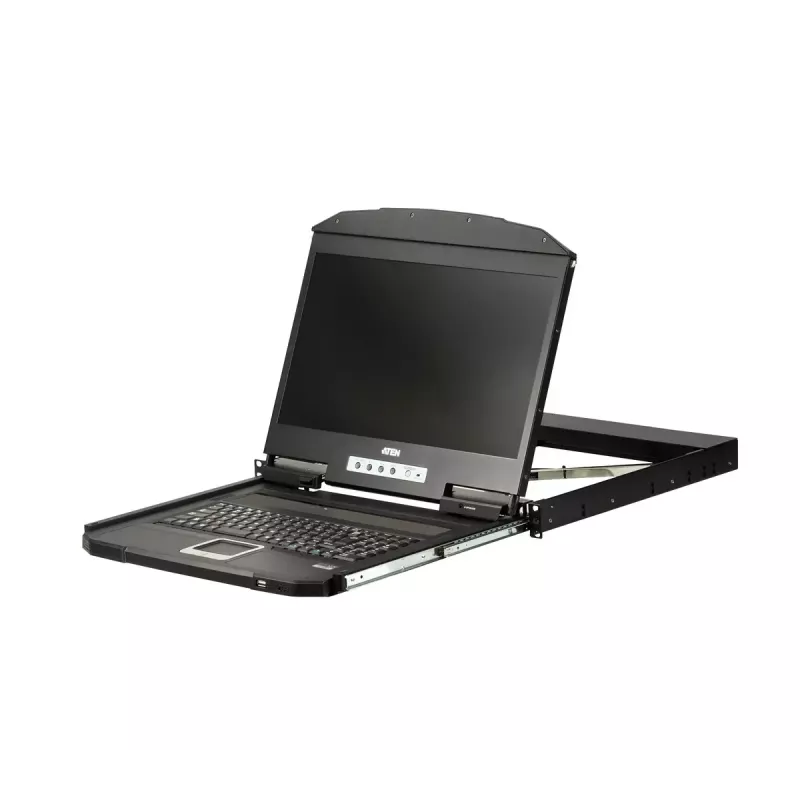

The ATEN CL3700NW 18.5" USB HDMI LCD Console is a 1U short-depth rack console that integrates an LED-backlit widescreen monitor, keyboard and touchpad into a single sliding unit. Designed for shallow 19" racks and tight equipment cabinets, the unit delivers Full HD (1920 x 1080) video with 350 cd/m² brightness and includes USB connectivity for keyboard and mouse as well as HDMI video output. The console supports AC power and comes with AC, HDMI and USB cables for immediate installation.

Advantages

The CL3700NW saves rack space with its short-depth single-rail design while providing a full-size 18.5" widescreen display and integrated keyboard and touchpad. Its Full HD HDMI output ensures clear video, and front and rear USB/HDMI ports allow connection of an external console or a second KVM console. Compact dimensions and included cables simplify deployment in shallow racks, OB vans and compact control rooms.

Suitable for

• Shallow 19" server racks and compact equipment cabinets
• Outside broadcast (OB) vans and mobile production units
• Control rooms with limited space in broadcasting, security or industrial environments
• Any single-computer console application requiring HDMI video and USB keyboard/mouse

Key specifications

• Display: 18.5" LED-backlit widescreen, 1920 x 1080 (Full HD)
• Brightness: 350 cd/m²
• Video port type: HDMI

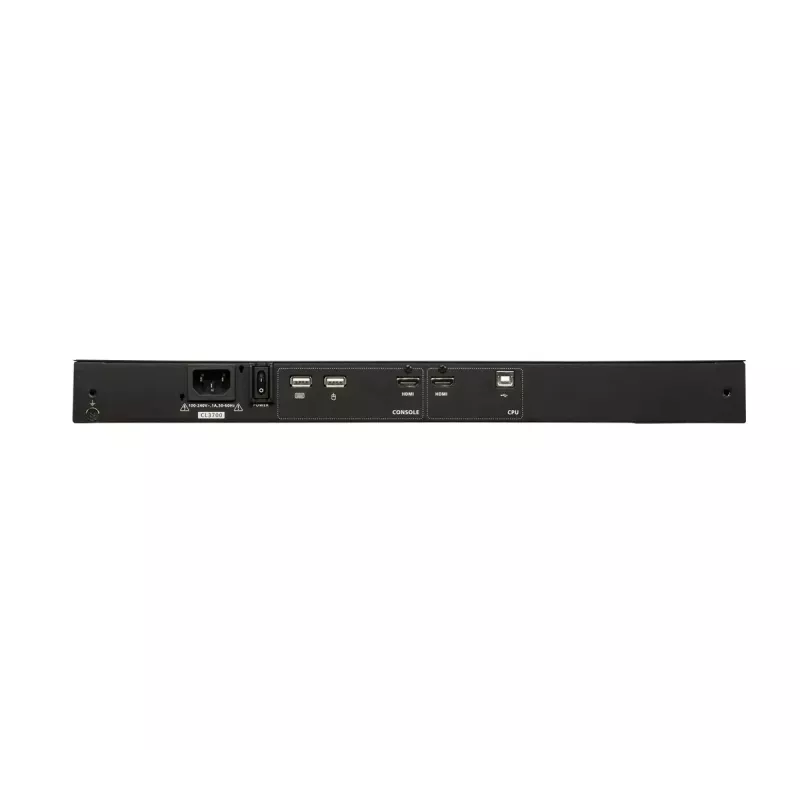

• Keyboard / Mouse ports: USB (front mouse port; rear ports for second console)
• Form factor: 1U short-depth single-rail rack console
• Dimensions (W×H×D): 477 mm × 42.8 mm × 480.6 mm
• Power: AC supply (wide voltage range)
• Cables included: AC, HDMI, USB
• Colour: Black
• Number of computers controlled: 1

How to use

Slide the CL3700NW into a compatible 19" rack and secure it using the rack-mount points. Connect the AC power cable and attach the HDMI and USB cables to the computer you wish to control. Use the integrated keyboard and touchpad for local operation. To connect an external console, plug a USB mouse into the front-panel port or connect a secondary keyboard/mouse and HDMI monitor to the rear console ports. Ensure the connected computer is set to use the HDMI output for video and USB for HID devices.

Recommendations

For optimal performance in shallow racks or mobile setups, verify rack depth and clearance before installation, use the supplied HDMI and USB cables for reliable connectivity, and ensure proper ventilation around the console to maintain display brightness and component longevity.
