ATEN CL3100NX console rack 47 cm (18,5") 1366 x 768 pixel metallo, plastica nero 1U

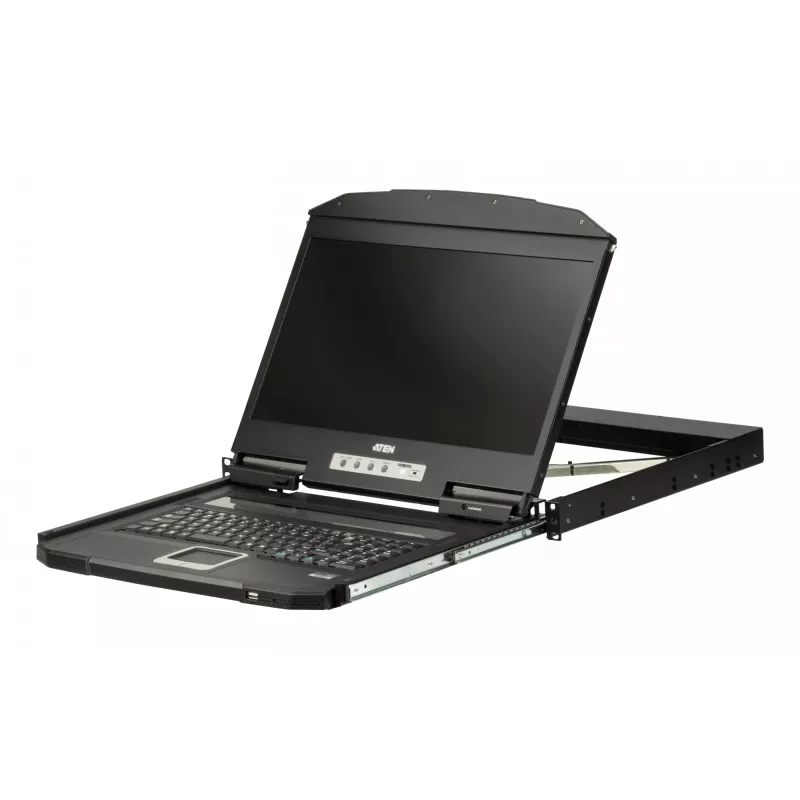

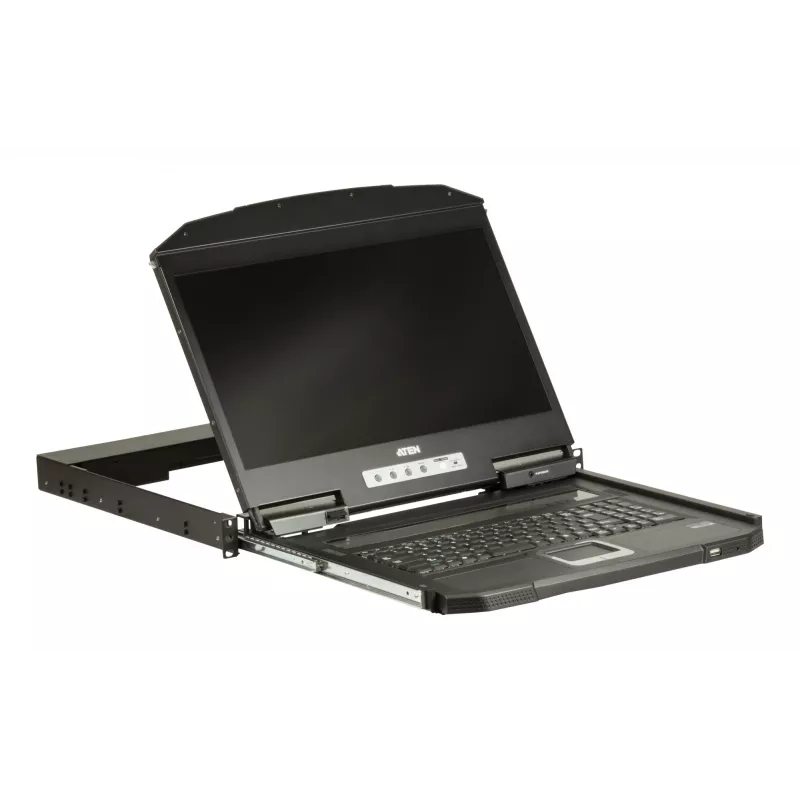

The ATEN CL3100NX USB VGA LCD Console is a short-depth, single-rail 1U rack-mount KVM console that integrates an 18.5" LED-backlit widescreen LCD, a full keyboard and a touchpad. Designed to fit all 19" equipment cabinets including shallow racks, it provides a space-saving solution for compact control rooms and mobile environments such as outside broadcast vans. The unit supports VGA video with a maximum resolution up to 1920 x 1200 and is housed in a metal and plastic chassis with AC power input (100–240 V).

Advantages

The CL3100NX combines a full-size keyboard, touchpad and an 18.5" LED LCD in a short-depth single-rail design to maximize space utility in 19" racks. It supports both USB and PS/2 keyboard and mouse connections for broad compatibility and offers front- and rear-panel ports for connecting an external console or an additional KVM console. Integrated mini stereo audio ports add basic audio capability. The unit’s construction and power range allow flexible deployment in various professional environments.

Suitable for (tasks / use cases)

• Shallow 19" racks and compact server rooms
• Mobile broadcast vans and outside broadcast (OB) environments
• Control rooms and monitoring stations with limited space
• Single-server or single-computer management setups

Key specifications

• Model: ATEN CL3100NX (CL3100NX-NORDIC)
• Display: 18.5" LED-backlit widescreen LCD, VGA video port
• Maximum resolution: up to 1920 x 1200
• Keyboard / mouse support: USB and PS/2
• Number of computers controlled: 1

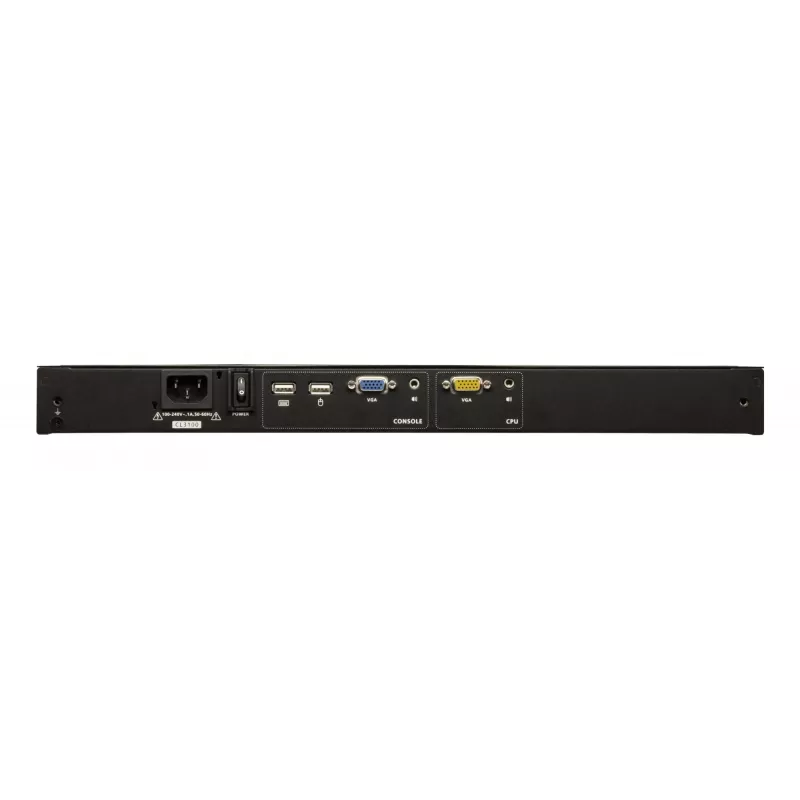

• Ports: front USB mouse port; rear USB keyboard/mouse and VGA console ports; two mini stereo audio ports

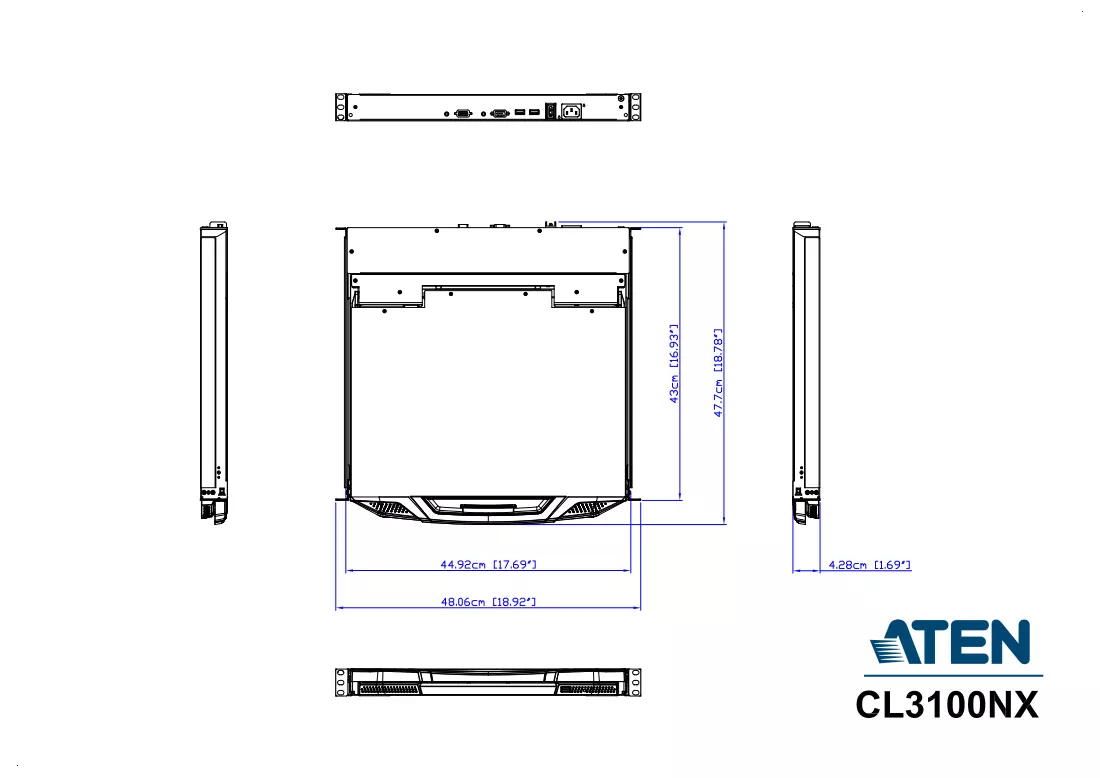

• Form factor: short-depth single rail, 1U rack-mountable
• Power: AC 100–240 V
• Weight: 9.07 kg
• Colour: Black

How to use

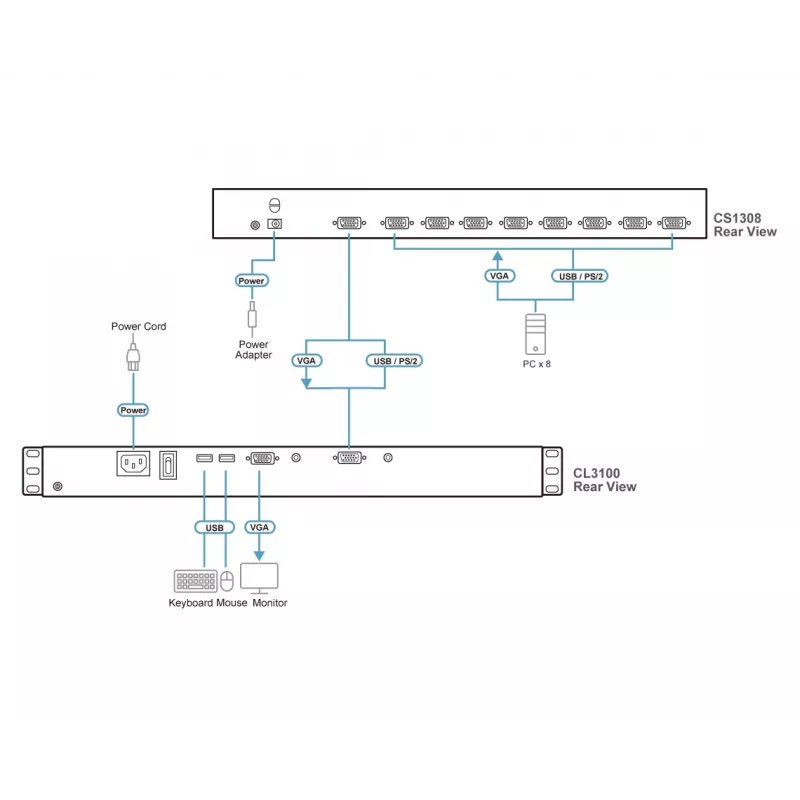

Install the CL3100NX into a 19" rack using the appropriate rack-mount kit if required. Connect the console’s VGA and keyboard/mouse cables to the target computer or to a compatible KVM switch. Use the front-panel USB mouse port or the rear-panel console ports to attach an external console when needed. Connect the AC power cord to a suitable outlet (100–240 V). Power on the console and the connected computer; the integrated LCD will display the video input from the VGA source and the keyboard/touchpad will be ready for operation.

Recommendations

For optimum compatibility, use VGA cables and USB/PS/2 adapters that meet the server and KVM switch requirements. If installing in a shallow rack or mobile environment, verify available depth and choose the optional rack mount kit specified for the CL3100NX. Regularly check cable connections and ventilation to ensure reliable operation in control rooms and broadcast vehicles.
