Console LCD ATEN CL3100NX FR 18,5 pollici USB VGA console KVM

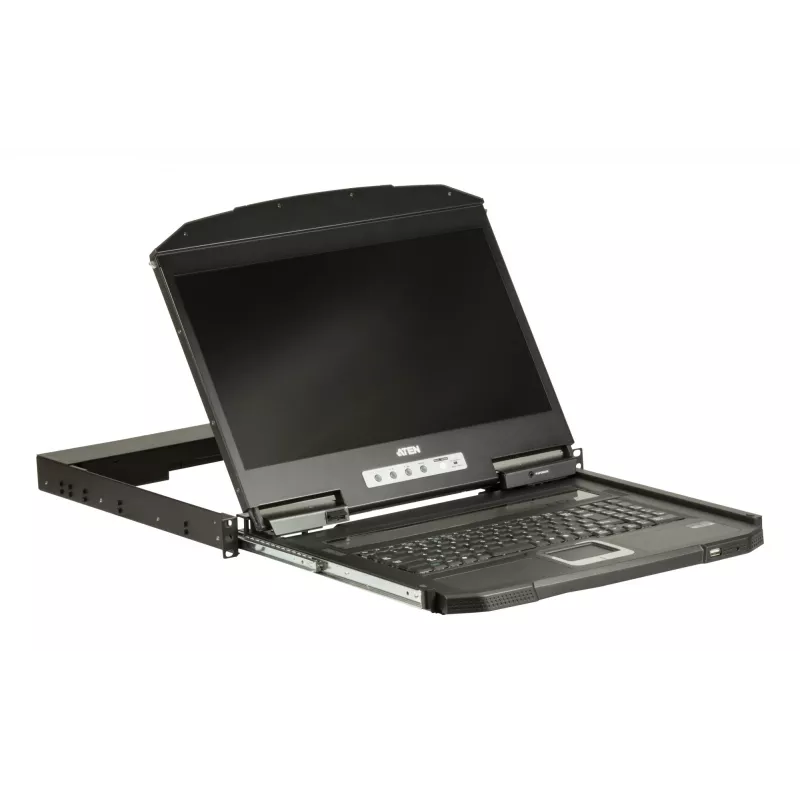

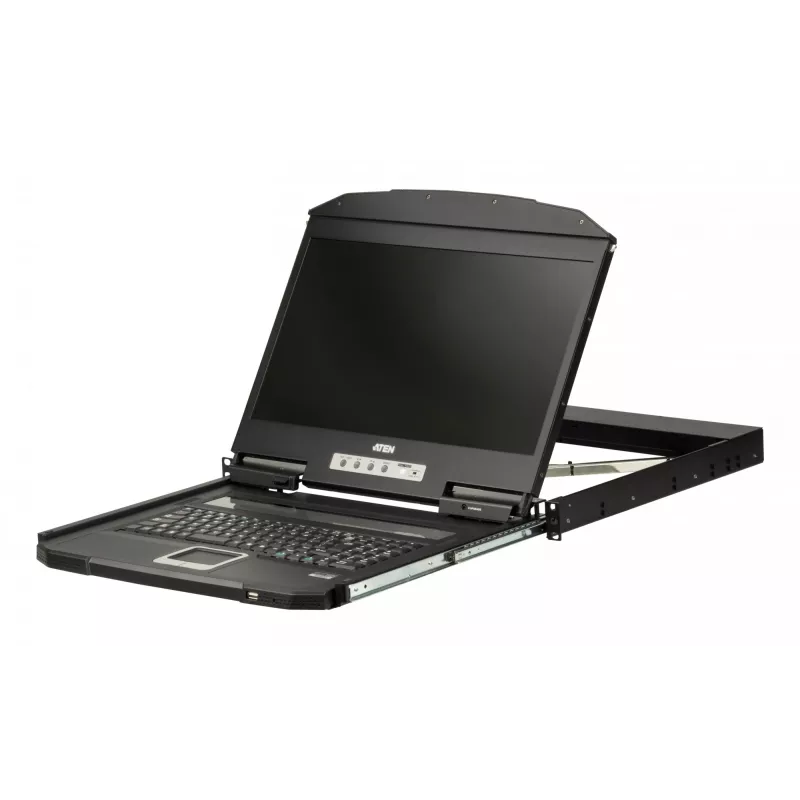

ATEN CL3100NX FR is an 18.5-inch LCD KVM console designed for rack-mounted server management. The unit integrates an 18.5" display with a full-size keyboard and touchpad in a single, 1U rackmount drawer, providing direct local access to connected servers via USB and VGA interfaces. It is intended to streamline on-site administration, reduce the footprint of peripherals in server racks, and enable quick troubleshooting and configuration tasks without the need for separate monitors or input devices.

Advantages

The CL3100NX FR combines a compact 18.5-inch LCD panel with an integrated keyboard and touchpad to save rack space and consolidate local access points. Its USB and VGA connectivity ensures compatibility with a wide range of servers and legacy equipment. Designed for 1U installation, the console provides a convenient sliding drawer mechanism for secure storage and easy deployment. The product supports straightforward local control and maintenance workflows, reducing the time required for hands-on server interaction.

Suitable for

• Rack-mounted server rooms and data center cabinets
• IT maintenance and on-site troubleshooting
• Small to medium enterprise server management
• Environments requiring space-efficient local console access

Key specifications

• Display size: 18.5-inch LCD with widescreen aspect ratio

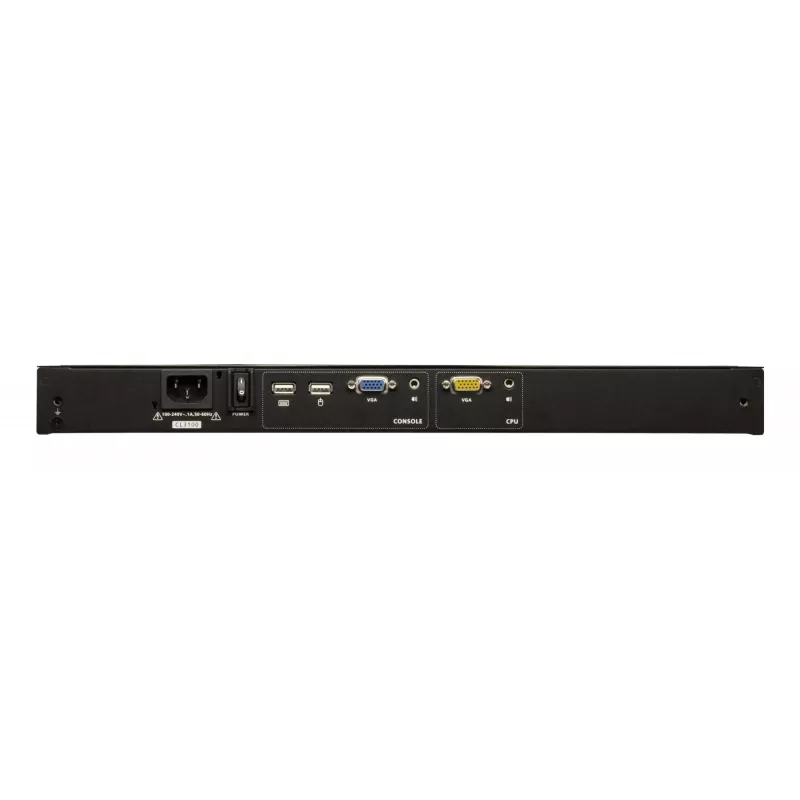

• Input interfaces: USB for keyboard/mouse and VGA video input
• Form factor: 1U rackmount sliding console with integrated keyboard and touchpad
• Physical access: Front-access drawer design for easy deployment and storage
• Compatibility: Works with servers and devices supporting VGA video and USB HID peripherals

How to use

Install the console into a standard 19-inch rack using the supplied rackmount brackets and secure it at the desired unit position. Connect the console's VGA cable to the server's video output and attach the USB cable to a USB port on the server to enable keyboard and touchpad control. Slide the drawer open to power on the display and use the integrated keyboard and touchpad for local administration, configuration, and troubleshooting. For multiple servers, connect the console to a KVM switch or use the server-side KVM ports to switch between connected machines according to your rack topology.

Recommendations

Place the CL3100NX FR at an accessible rack height for regular maintenance tasks, and route cables to avoid strain on the VGA and USB connectors. Use VGA and USB cables of appropriate length and quality to maintain signal integrity. Power down connected equipment before making or removing physical connections when possible, and follow your data center’s standard ESD and safety procedures during installation and handling.
