ATEN UCE33100 extender di rete trasmettitore e ricevitore di rete nero

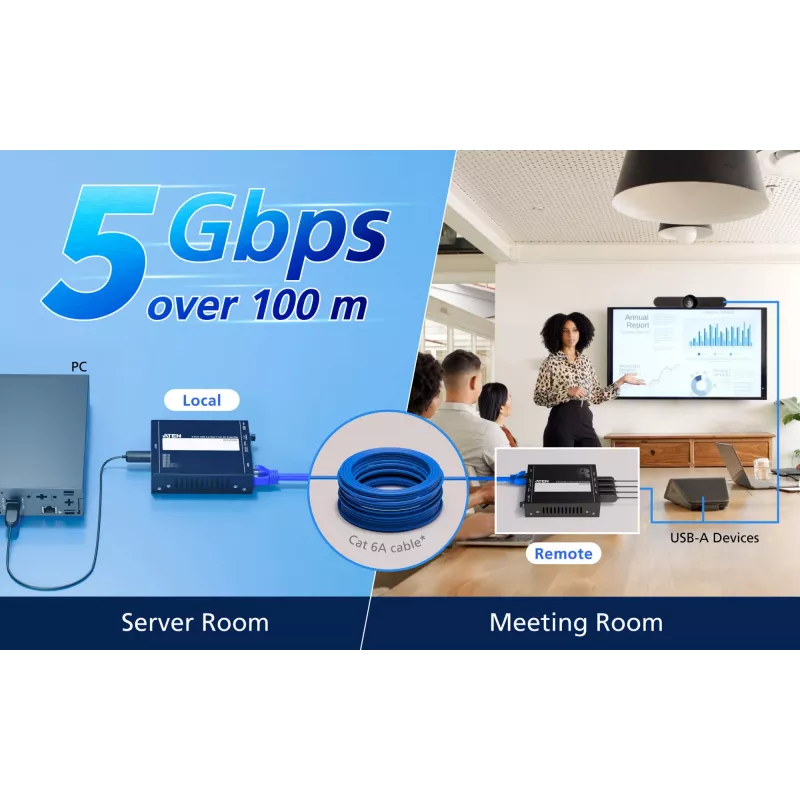

The ATEN UCE33100 is a network transmitter and receiver pair that extends USB 3.2 connectivity up to 100 m over a Cat 6A cable. Housed in a durable metal enclosure and designed for compact installations, the unit supports high-speed data transmission while consuming low power, making it suitable for meeting rooms, classrooms, industrial control stations and healthcare environments where longer USB reach is required.

Advantages

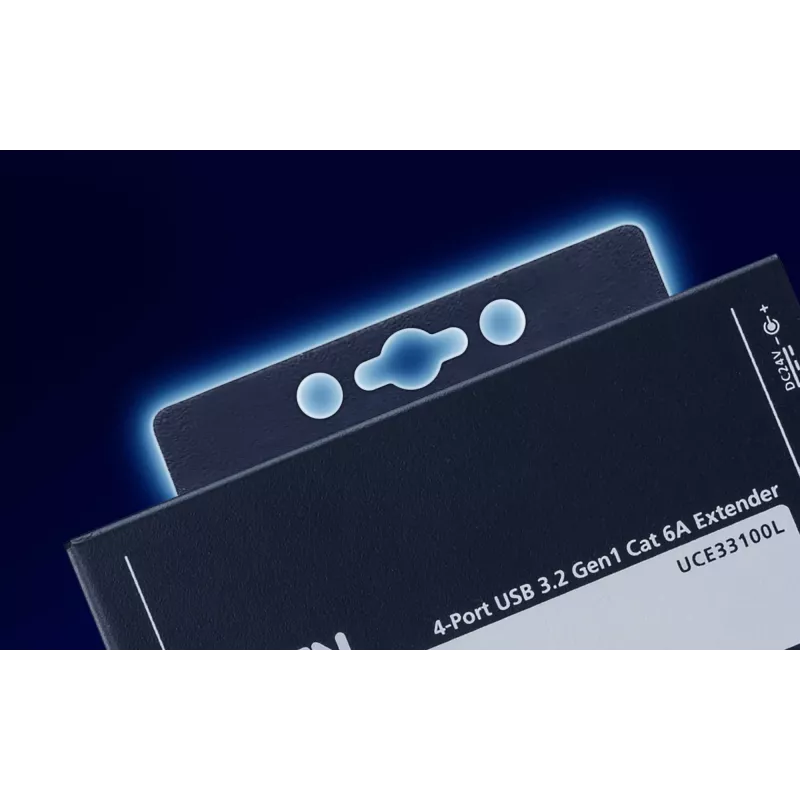

The extender transmits USB 3.2 data at up to 5 Gbps across a distance of up to 100 m using Cat 6A cable, enabling peripheral connectivity without proximity constraints. Four USB Type-A ports on the remote unit provide plug-and-play access to multiple peripherals. Power over Cable (PoC) allows either the local or remote unit to be powered through the Cat 6A connection, reducing the need for separate power adapters. A mounting kit is included to simplify installation and flexible deployment in different environments.

Suitable for

• Conference rooms and meeting spaces
• Educational facilities and classrooms
• Industrial control stations
• Healthcare environments and medical workstations

Key specifications

• Product: ATEN UCE33100 network transmitter & receiver
• Maximum distance: up to 100 m over Cat 6A cable
• Data rate: USB 3.2 up to 5 Gbps

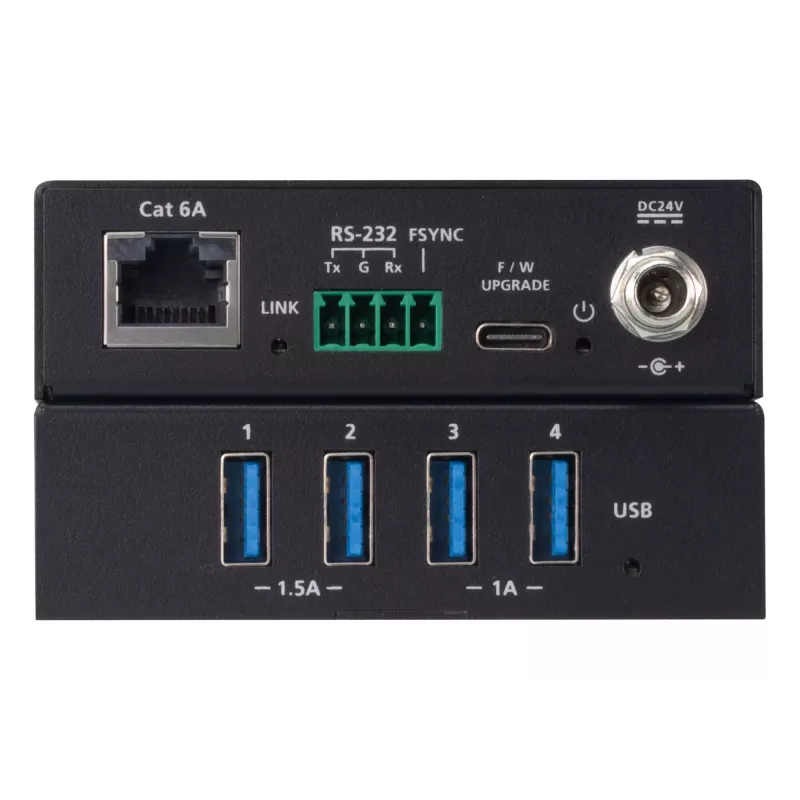

• Ports: 4 × USB Type-A (remote)
• Power: PoC (Power over Cable); typical power consumption 2.64 W
• Housing: metal
• Dimensions: 85 mm (W) × 107.5 mm (D) × 25.5 mm (H)
• Manufacturer model: UCE33100
• EAN: 4710469346989

How to use

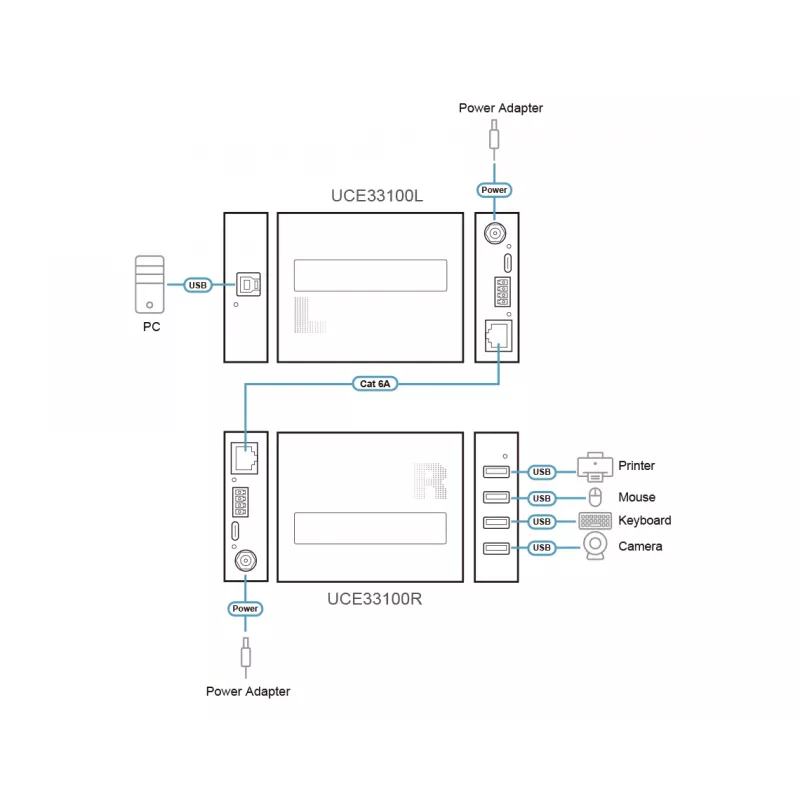

Connect the local unit to a host computer via USB and link the local and remote units using a Cat 6A cable up to 100 m. Plug peripherals into the remote unit’s USB Type-A ports for immediate plug-and-play operation. If required, provide power by connecting either the local or remote unit to a power source; otherwise the PoC feature allows powering one unit through the Cat 6A link. Use the included mounting kit to secure units in racks, on walls, or under desks for a stable installation.

Recommendations

For reliable 5 Gbps performance at distances approaching 100 m, use high-quality Cat 6A cable and minimize cable runs with multiple connectors or patch panels. Install the units using the supplied mounting kit in ventilated areas and follow local grounding and cabling best practices for industrial or healthcare deployments.
