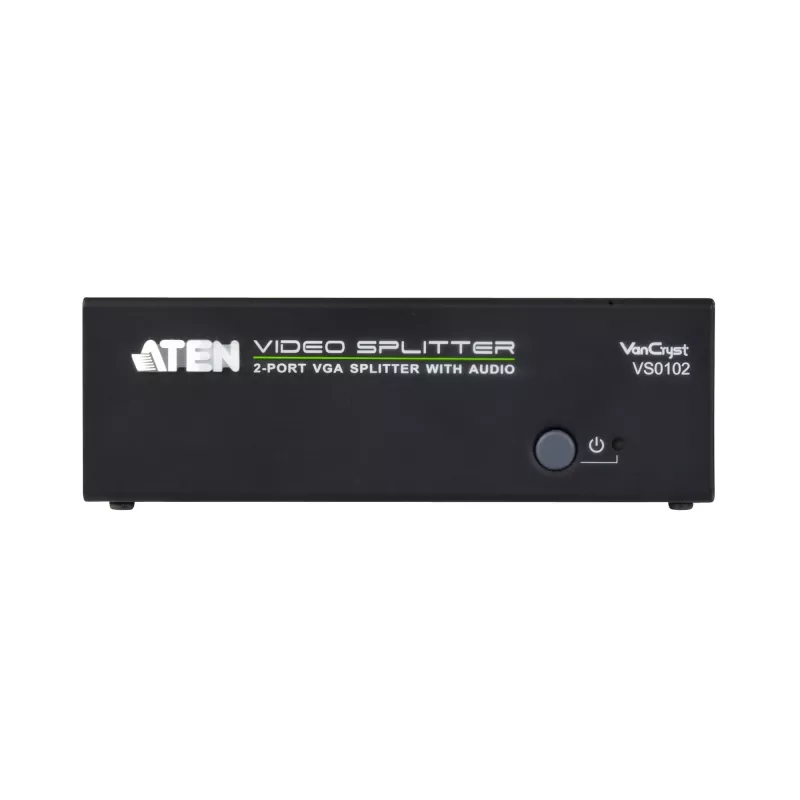

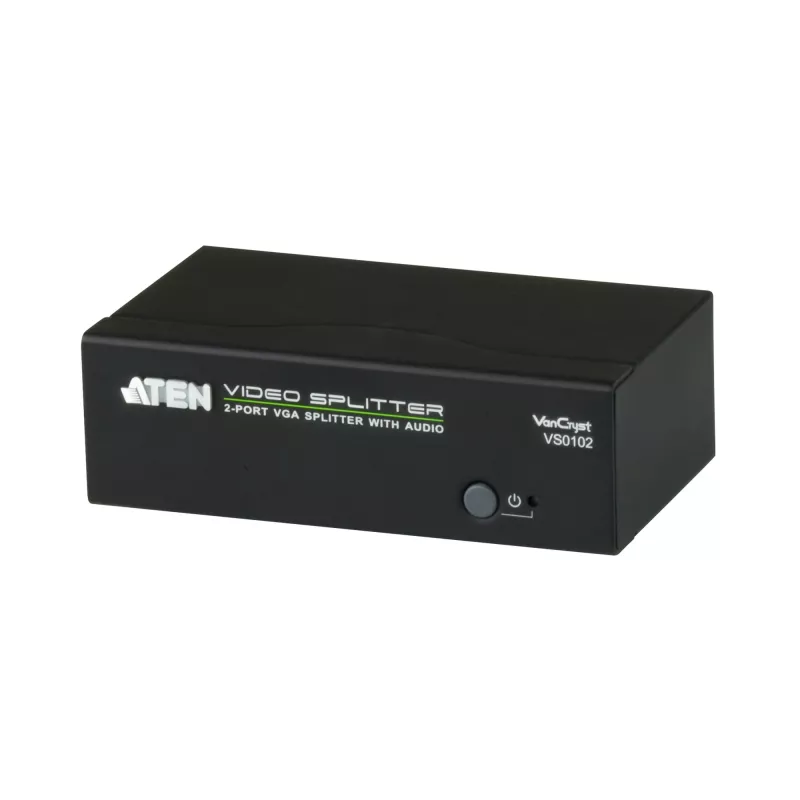

ATEN VS0102 Video-Splitter VGA 2x VGA

The ATEN VS0102 2-Port VGA Splitter with Audio distributes a single VGA video and stereo audio signal to two independent displays. It supports video bandwidth up to 450 MHz and resolutions up to 1920x1440, and includes RS-232 serial control for integration with external controllers or a PC. The unit is compact, black, and designed for simple installation without additional software.

Advantages

This VGA splitter provides simultaneous video and audio output to two monitors while preserving signal quality up to 1920x1440. With a 450 MHz video bandwidth and independent stereo control on each output, the device maintains clear image and sound. Built-in RS-232 ports enable remote or centralized control via compatible controllers or a PC. The compact black housing and straightforward setup require no software, making the ATEN VS0102 practical for multi-display environments.

Suitable for (tasks / use cases)

• Presentations in meeting rooms or classrooms
• Point-of-sale and information displays
• Multi-screen demonstrations and training
• Small office or home multi-monitor setups

Key specifications

• Model: ATEN VS0102
• Ports: VGA video with stereo audio, 2 outputs (1 input to 2 outputs)
• Video bandwidth: up to 450 MHz
• Maximum resolution: up to 1920x1440
• Control: RS-232 serial control ports
• Color: Black

How to use

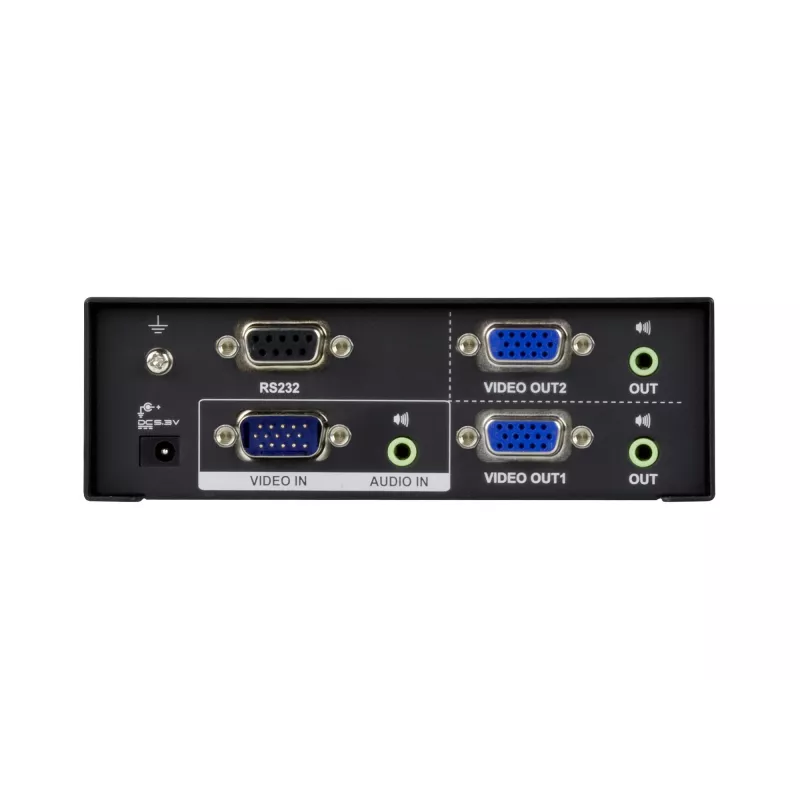

Connect the VGA source and audio output to the splitter’s input connectors, then connect each display and its audio input to the splitter’s outputs. Power the unit and use the connected displays’ volume controls or the splitter’s stereo control for audio adjustments. For centralized control, connect the RS-232 port to a compatible controller or PC and configure commands according to the controller documentation.

Recommendations

For optimal video quality, use good-quality VGA cables and keep cable runs as short as practical. When integrating with control systems, verify RS-232 settings (baud rate, parity, stop bits) to match the controller or PC.
