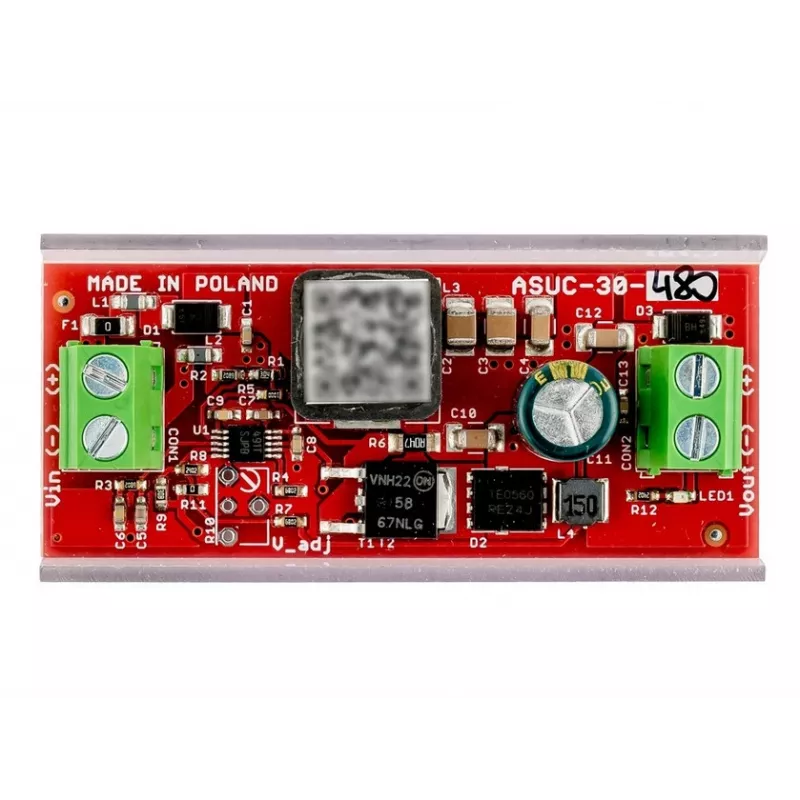

ATTE ASUC-30-480-OF convertitore DC/DC boost 48V 10A 480W guida DIN

The ATTE ASUC-30-480-OF is a high-performance DC/DC boost converter designed to step up input voltages from 10.5-30V DC to a stable 48V DC output. With a maximum output current of 10A and power of 480W, this converter is ideal for industrial applications requiring reliable voltage conversion. Its DIN rail mounting and metal enclosure ensure durability and easy integration into control cabinets.

Advantages

High efficiency (>90%) reduces energy loss and heat generation. Comprehensive protection features (short-circuit, overload, over-voltage, over-temperature, reverse polarity) safeguard your equipment. Passive convection cooling ensures silent operation and long service life.

Suitable for

• Industrial automation systems
• Telecommunication equipment
• Security and surveillance systems
• LED lighting installations
• Battery charging systems

Key specifications

• Input voltage: 10.5-30V DC
• Output voltage: 48V DC
• Output current: 10A
• Output power: 480W
• Efficiency: >90%
• Protection: SCP, OLP, OVP, OTP, RPP
• Mounting: DIN Rail (TS-35) / Surface mount
• Enclosure: Metal, IP20
• Cooling: Passive convection
• Connectors: Screw terminals
• Operating temperature: -25°C to +50°C

Recommendations

For optimal performance, ensure adequate ventilation around the converter. Use appropriately rated input and output cables. This converter is non-isolated (common ground); verify system compatibility before installation.
