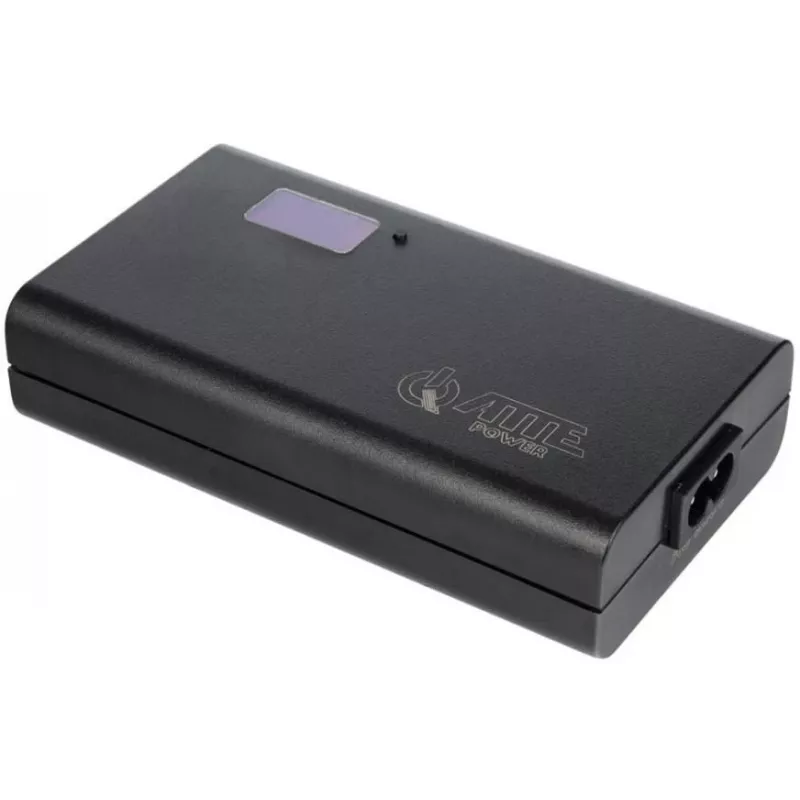

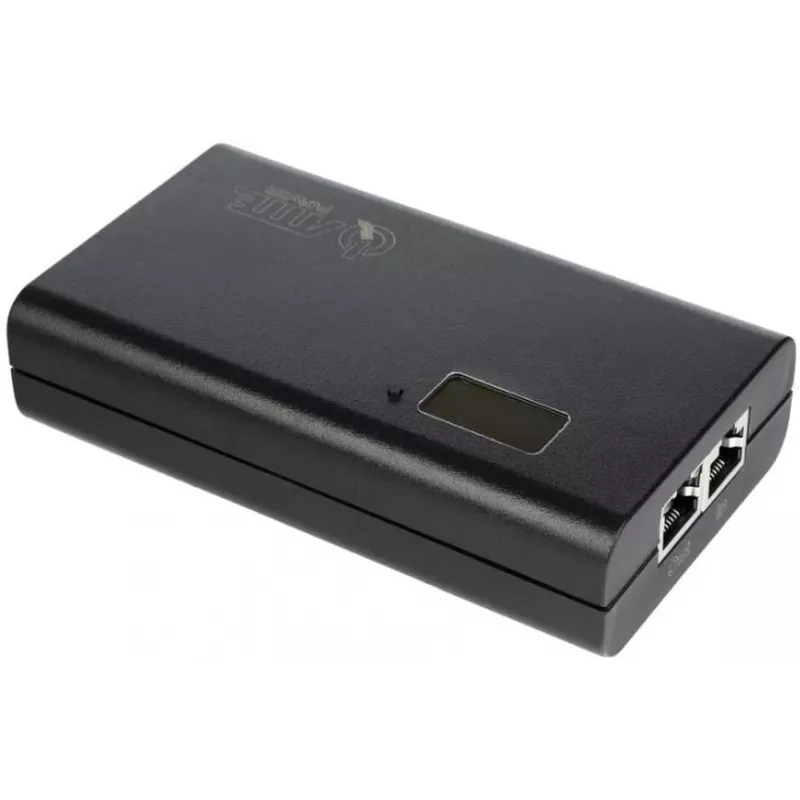

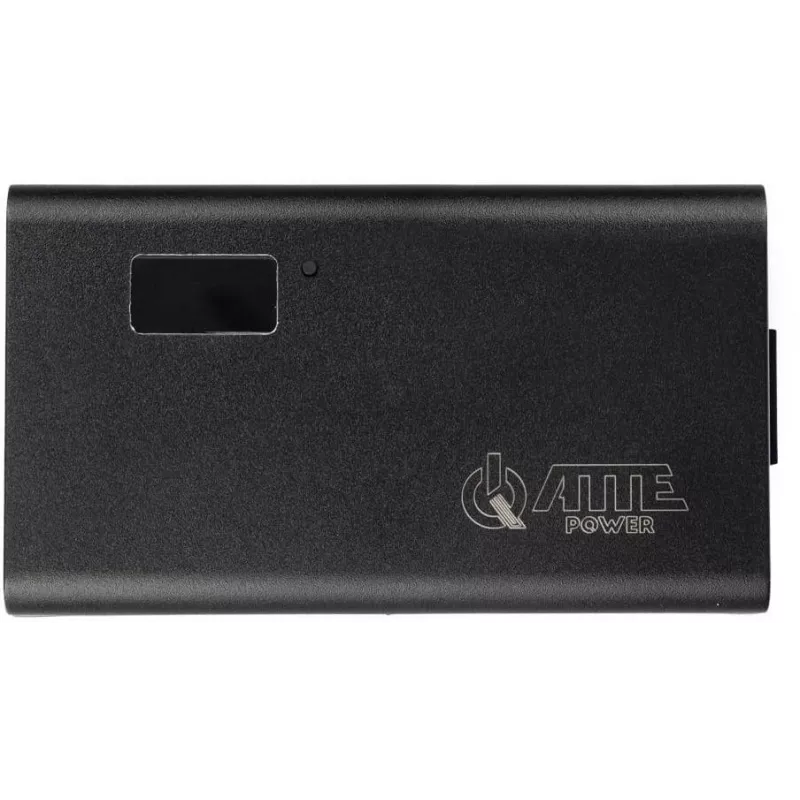

ATTE IPM-90-550 iniettore PoE 90W, 55V DC, Gigabit Ethernet, IEEE 802.3bt

The ATTE IPM-90-550 is a professional-grade Power over Ethernet (PoE) injector that brings full 90W of DC power to a single Gigabit Ethernet connection. Designed for devices requiring more than the standard 30W, such as PTZ cameras, high-performance wireless access points, and thin clients, this injector follows the IEEE 802.3bt Type 4 specification and integrates seamlessly into any structured cabling setup.

Advantages

• Compliant with IEEE 802.3bt Type 4, providing up to 90W per port
• Gigabit data rate (10/100/1000 Mbps) ensures full bandwidth
• Universal input 100-240V AC with 50/60 Hz frequency
• Compact desktop/wall-mount housing saves installation space
• Built-in overload, short-circuit and overvoltage protection
• Efficiency above 85% reduces energy waste and heat

Suitable for

• Powering 802.3bt-compliant IP cameras, video phones and wireless bridges
• Supplying 802.3af/at legacy devices with backward-compatible power delivery
• Remote network gear in offices, retail and industrial environments

Key specifications

• Output power: 90 W (55 V DC)
• Input: 100-240 V AC, 50/60 Hz
• Ports: 1x data in RJ45, 1x PoE out RJ45 (Gigabit)
• Power pin assignment: all 8 pins (4 pairs)
• Operating temperature: -10°C to +40°C
• Storage temperature: -20°C to +70°C
• Humidity: 5% to 90% non-condensing
• Housing: ABS plastic, desktop/wall-mountable
• Certifications: CE, RoHS

Recommendations

For installations that demand high power over a single Ethernet cable, pair this ATTE injector with a 2- or 4-pair PoE++ splitter or standard-compliant device. Always verify your endpoint's PoE class and power budget to ensure a reliable and safe connection.
