ATTE IPUPS-5-11-F Switch PoE 5 porte con alimentazione buffer, 4x PoE 10/100 Mbps, budget 90W, unmanaged

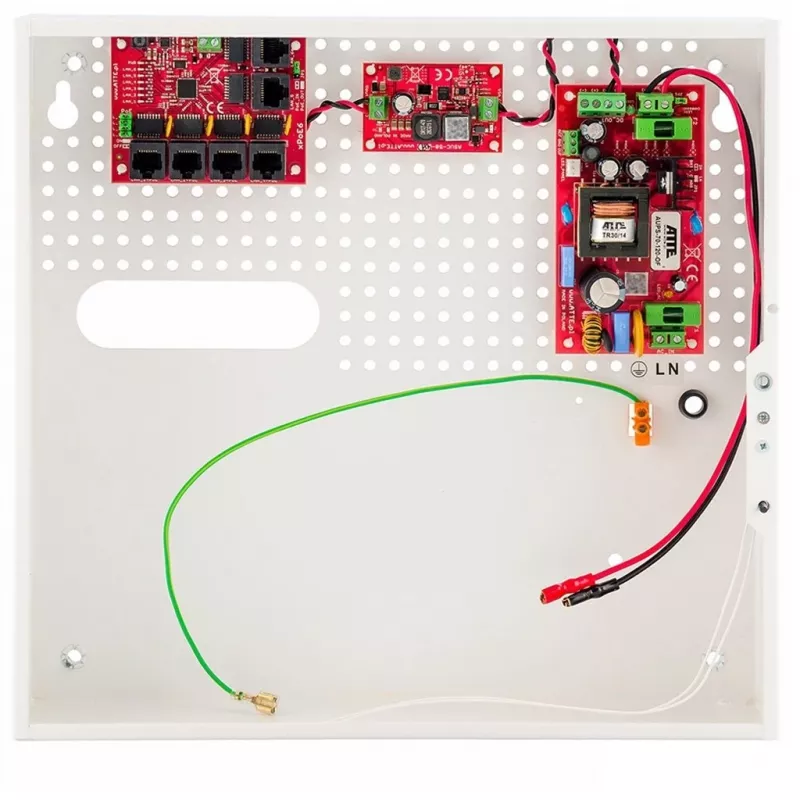

The ATTE IPUPS-5-11-F is a robust 5-port PoE switch designed for reliable network connectivity with integrated buffer power support. Featuring 4 PoE ports and 1 uplink port, all operating at 10/100 Mbps Fast Ethernet, this unmanaged switch delivers up to 30W per PoE port with a total budget of 90W, compliant with IEEE 802.3af/at standards. Its unique buffer power capability allows connection to an external 12V VRLA battery (7-40Ah) for uninterrupted operation during power outages, making it ideal for security, surveillance, and critical network applications.

Advantages

Integrated buffer power ensures continuous PoE supply even during mains failure, protecting critical devices like IP cameras and access points. The metal enclosure provides durability, while wall-mount and optional DIN-rail mounting offer flexible installation. Comprehensive protection features safeguard against short-circuits, overload, over-discharge, and reverse polarity, ensuring long-term reliability.

Suitable for

• IP surveillance systems requiring uninterrupted power
• Wireless access point deployments in remote or unstable power environments
• Industrial and commercial networks needing basic PoE switching with backup

Key specifications

• Total Ethernet Ports: 5 (4x PoE, 1x Uplink)
• Port Speed: 10/100 Mbps (Fast Ethernet)
• PoE Standard: IEEE 802.3af/at
• Max PoE Power per Port: 30W
• Total PoE Power Budget: 90W
• Buffer Power: External 12V VRLA battery (7-40Ah)
• Input Voltage: 230V AC, 50/60Hz
• PoE Output Voltage: 48-56V DC
• Management: Unmanaged
• Enclosure Material: Metal
• Mounting: Wall-mount, DIN-rail (optional adapter)
• Operating Temperature: -10°C to +50°C
• Protection: Short-circuit, Overload, Over-discharge, Reverse Polarity
• LED Indicators: Power, PoE Status, Link/Act, Battery Status

Recommendations

For optimal buffer performance, use a 12V VRLA battery with capacity between 7Ah and 40Ah. Ensure proper ventilation and avoid exceeding the total PoE budget of 90W. This switch is ideal for small to medium-sized PoE deployments requiring power backup.
