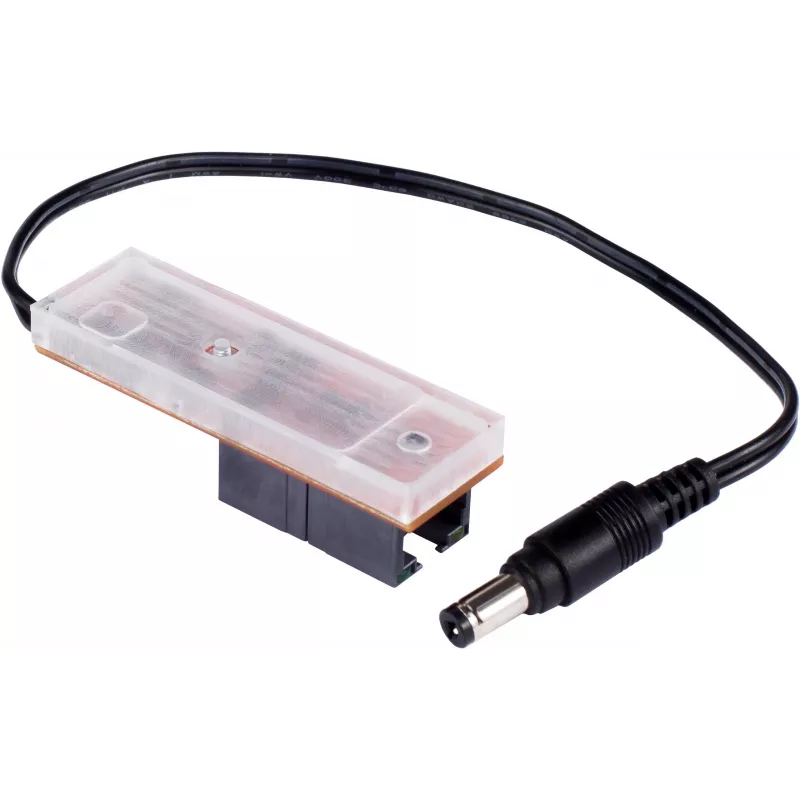

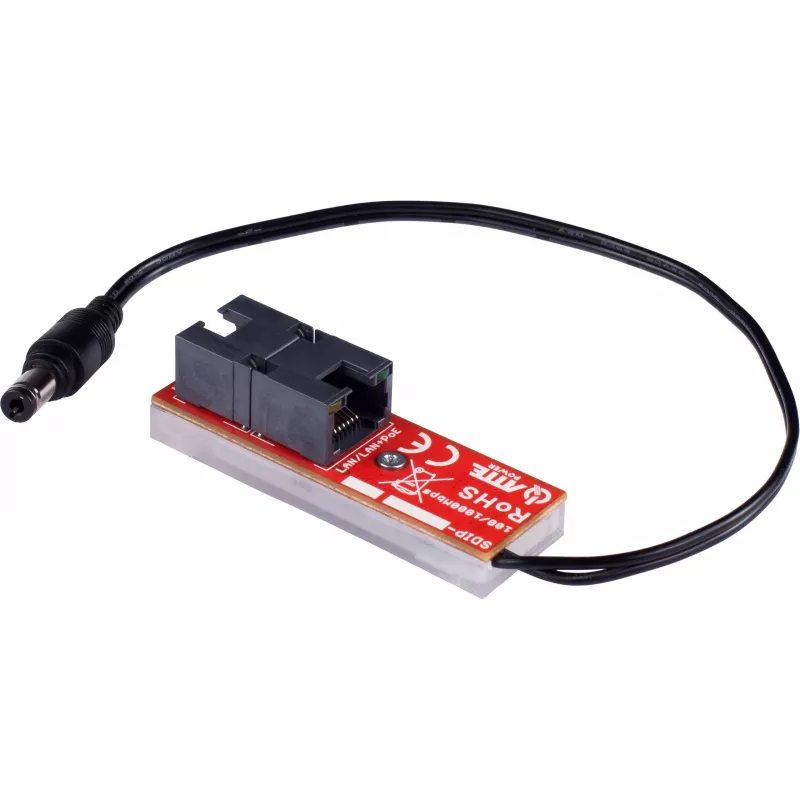

ATTE SDIP-12-124 iniettore PoE passivo 12V 24W Gigabit guida DIN

The ATTE SDIP-12-124 is a high-performance Passive PoE Injector designed to deliver reliable power and data over a single Ethernet cable. Ideal for IP cameras, wireless access points, and other network devices, this injector provides 12V DC output at up to 24W, supporting Gigabit Ethernet speeds for seamless connectivity. Built with robust protection features and a compact DIN rail/wall mount design, it ensures safe and efficient operation in various environments.

Advantages

This PoE injector simplifies installation by eliminating the need for separate power cables near devices. Its passive design makes it compatible with a wide range of non-standard PoE equipment. The metal housing and surge protection enhance durability, while the LED indicator provides clear power status. With high efficiency (>85%) and a wide operating temperature range, it delivers consistent performance in demanding conditions.

Suitable for

• IP cameras and surveillance systems
• Wireless access points and bridges
• Network switches and routers
• Industrial automation equipment
• Remote IoT devices

Key specifications

• PoE Type: Passive PoE Injector
• Output Voltage: 12V DC
• Output Power: 24W (2A)
• Input Voltage: 10-14V DC
• Data Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Ports: 1x LAN In (RJ-45), 1x PoE Out (RJ-45)
• Pin Assignment: Data on 1/2, 3/6; Power on 4/5 (+), 7/8 (-)
• Protection: Short-circuit, Overload, Surge
• Operating Temperature: -10°C to +50°C
• Mounting: DIN Rail / Wall Mount
• Housing: ABS Plastic
• DC Input: Screw Terminal Block
• Efficiency: >85%
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with compatible 12V DC powered devices. Ensure the total power consumption does not exceed 24W. The injector is not IEEE 802.3af/at compliant; verify device compatibility before use. Professional installation recommended for industrial applications.
