Autoradio Blaupunkt Las Vegas 690 DAB

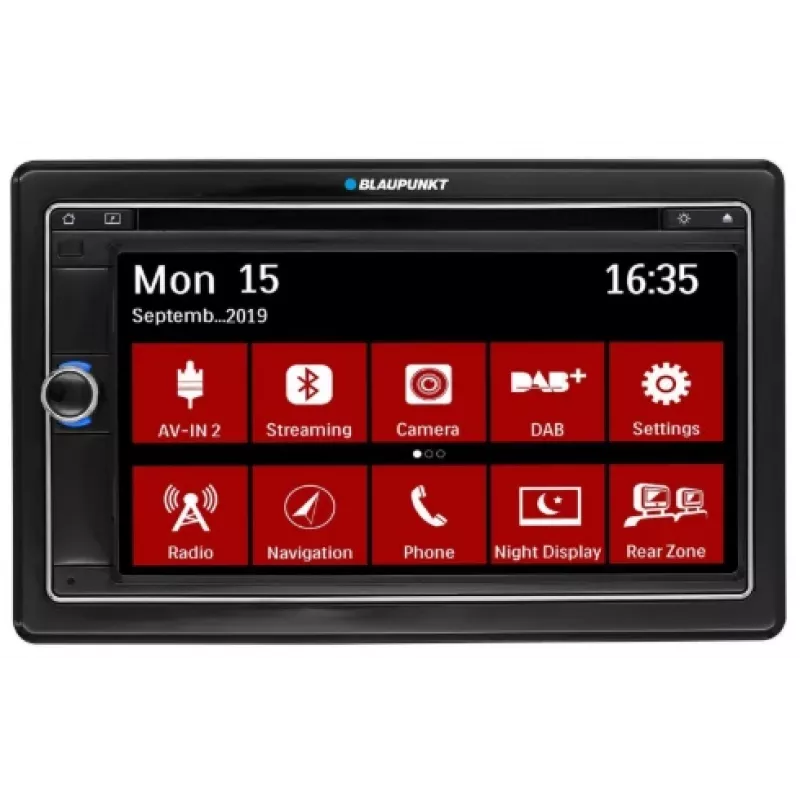

The Blaupunkt Las Vegas 690 DAB is a 2-DIN car multimedia unit with a 6.75-inch TFT capacitive touchscreen, designed for in-car audio, video and navigation use. It integrates AM/FM and DAB/DAB+ tuners, Bluetooth for hands-free calling and audio streaming, front USB and SDHC slots for media playback and charging, and several analogue AV inputs. The unit supports common audio formats (MP3, FLAC, WMA) and video formats (MP4, MKV) and retains user settings and presets via an integrated permanent memory.

Advantages

The Las Vegas 690 DAB combines a responsive touchscreen interface and customizable graphical menu with multiple connectivity options including Bluetooth, USB, SDHC and AUX, plus DAB+ digital radio and a high-performance RDS FM tuner. It offers a 10-band parametric equalizer and sound presets, support for an external or integrated microphone for clearer calls, steering wheel control compatibility and a camera input for rear-view cameras. User settings are preserved when main power is removed.

Suitable for

• Drivers who need a 2-DIN multimedia head unit with touchscreen and navigation support
• Users who want DAB+/FM/AM radio reception with RDS
• People who play large media libraries from USB or microSD/SDHC
• Vehicles requiring steering wheel control and rear-view camera integration

Key specifications

• Form factor: 2-DIN car multimedia unit
• Display: 6.75" TFT capacitive touchscreen
• Radio: AM, FM (RDS), DAB/DAB+
• Audio formats: MP3, FLAC, WMA
• Video formats: MP4, MKV
• Connectivity: Bluetooth, front USB, SDHC, Aux, two rear AV-INs
• Sound: 10-band parametric equalizer, sound presets
• Extras: Navigation support (optional map/navigation), camera input, steering wheel control (SWC)
• Memory: Permanent memory for settings and presets
• Colour: Black

How to use

Operate the unit primarily via the capacitive touchscreen for menu navigation, media selection and sound tuning. Use the hardkeys (home, navigation, DIM, eject) and the accessible volume control for frequent actions while driving. Connect a phone via Bluetooth to enable hands-free calls and audio streaming; synchronize the phone book for convenient dialing. Insert USB or microSD/SDHC cards into the front ports to play stored audio, image or video files. If required, connect a rear-view camera to the camera input and an external microphone for improved telephony quality.

Recommendations

For safety, perform map updates, large media transfers and detailed sound tuning while parked. Use steering wheel controls where available to reduce distraction, and prefer the external microphone placement for clearer phone audio in noisy environments.
