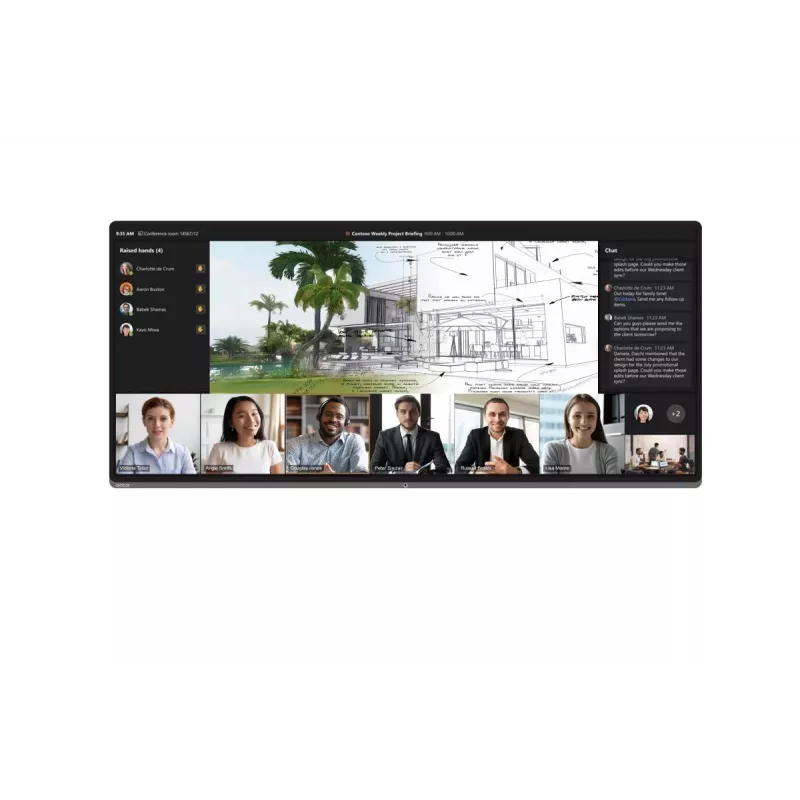

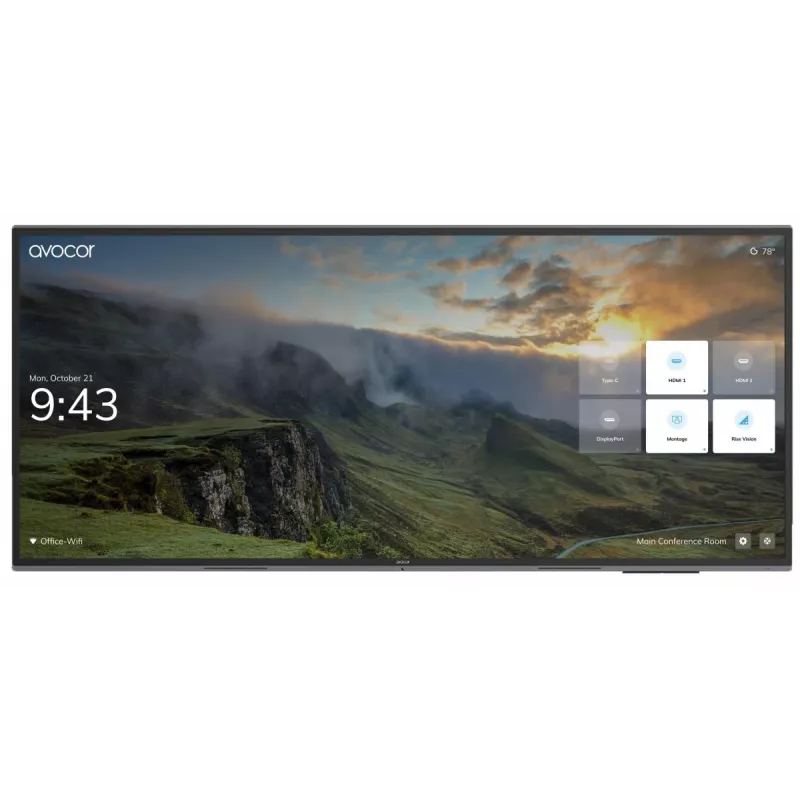

Avocor L Series 105" 5K Pcap LED Display interattivo 400 cd/m² 32 W

The Avocor L Series 105" 5K Pcap LED Interactive Display offers a 21:9 aspect ratio and a 2.67 m (105") diagonal with 5120 x 2160 resolution and 400 cd/m² brightness. Designed for collaborative environments, the display combines a highly responsive projected-capacitive (pcap) multi-touch surface with robust optical performance and integrated audio to support interactive presentations and whiteboarding.

Advantages

The wide 21:9 format provides additional usable interactive area for side-by-side content and extended canvases. The projected-capacitive touch delivers smooth, durable and accurate multi-touch input suitable for frequent use. High-resolution 5K imaging and 400 cd/m² brightness ensure clear visuals in well-lit rooms, while the built-in 32 W speaker and USB Power Delivery up to 100 W add convenience for conferencing and device charging.

Suitable for

• Conference rooms and boardrooms
• Classrooms and lecture halls
• Interactive whiteboarding and collaborative workshops
• Design review and content creation with extended horizontal workspace

Key specifications

• Model: Avocor L Series 105" (AVL-1050-T)
• Diagonal: 105" / 2.67 m
• Resolution: 5120 x 2160 (5K)
• Aspect ratio: 21:9
• Brightness: 400 cd/m²
• Touch technology: Projected-capacitive (pcap) multi-touch
• Audio: 32 W speaker
• USB Power Delivery: up to 100 W
• Brand: AVOCOR
• EAN: 858323007714

How to use

Place and mount the display according to the manufacturer's installation instructions for the intended room. Connect source devices via the supported video inputs and enable USB Power Delivery for compatible devices if required. Use touch input directly on the projected-capacitive surface for writing, annotating and multi-user interactions; the display recognises simultaneous touch points for collaborative tasks. Adjust brightness and audio levels through on-screen menus to suit ambient lighting and room acoustics.

Recommendations

For optimal touch responsiveness and image clarity, keep the screen surface clean and free of abrasive materials; use soft, lint-free cloths and manufacturer-recommended cleaning agents. In large meeting spaces, position the display so viewers have an unobstructed view of the extended 21:9 workspace and calibrate touch as needed after installation to ensure accurate multi-touch performance.
