Axagon HMC-KB-CRL, hub USB 5Gbps con tastiera, HDMI 4K/60Hz, 3x USB-A, SD/mSD, audio, PD100, layout cirillico

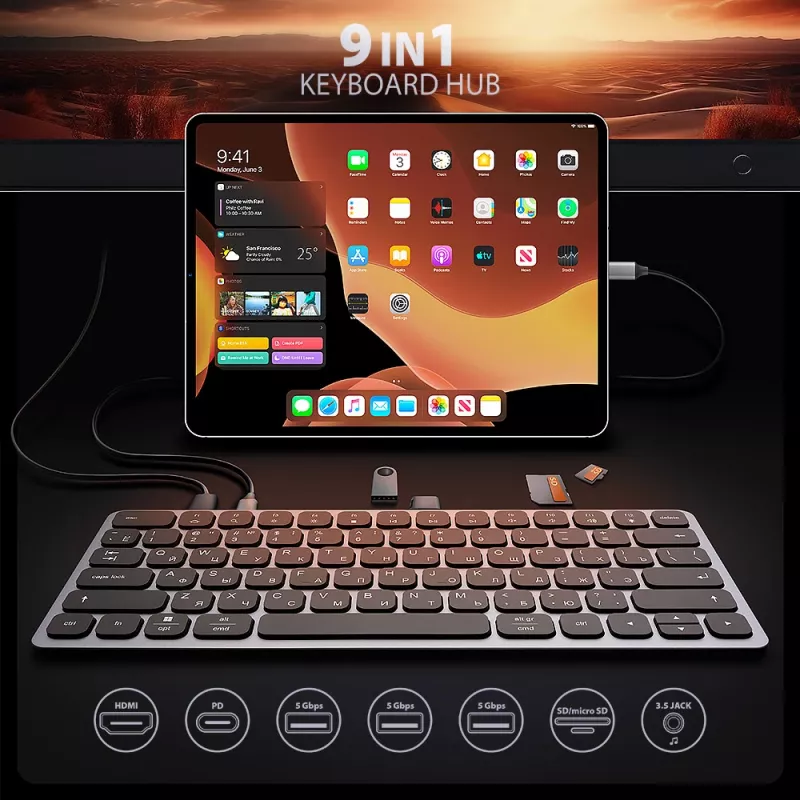

AXAGON HMC-KB-CRL is a multiport keyboard hub that extends phones, tablets and mini-laptops into a complete workstation. The 9‑in‑1 docking station connects to your mobile device using the included 60 cm USB‑C cable and provides an integrated full‑size keyboard, SD and microSD card reader, HDMI video output, three USB‑A ports, 3.5 mm audio jack and a PD USB‑C power input. The connected device must support USB‑C DisplayPort Alternate Mode for video output and Power Delivery for pass‑through charging.

Advantages

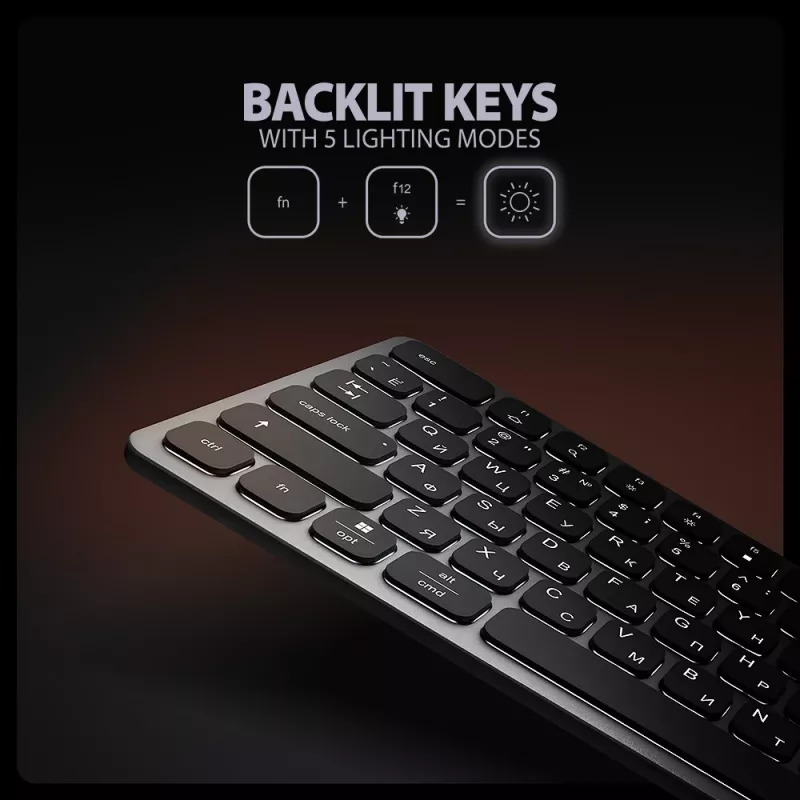

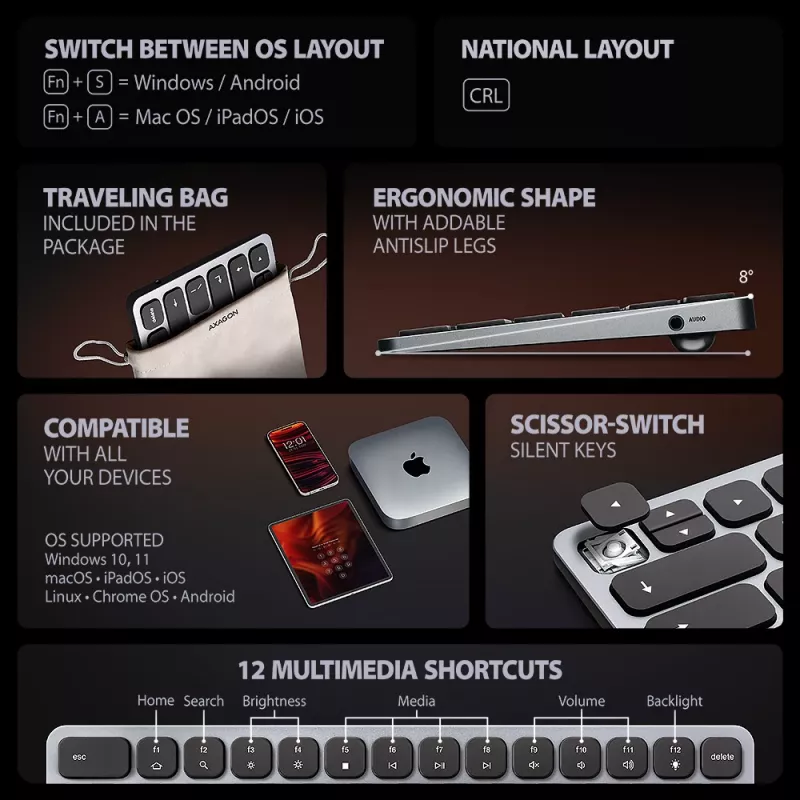

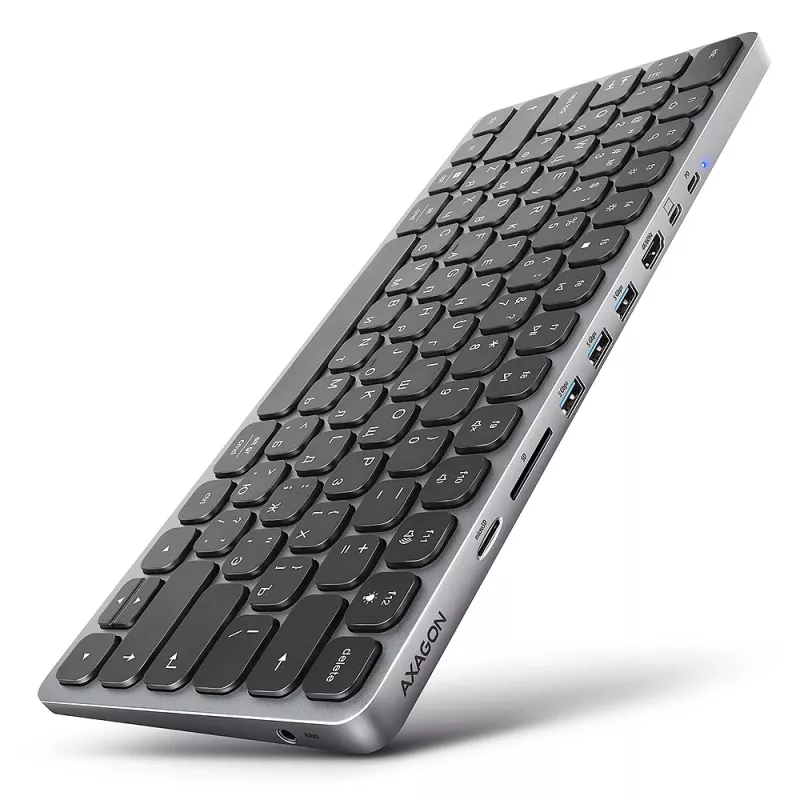

The keyboard is built into an aluminium hub body and uses low‑profile scissor switches with 2 mm key travel for precise and quiet typing. Adjustable white backlight in five levels, 12 multimedia keys and an adjustable tilt allow comfortable and ergonomic use. The HDMI port supports up to 4K/60Hz, 2K/120Hz or 1080p/200Hz with multi‑channel audio and HDR. Three USB‑A ports (5 Gbps) support external drives and peripherals and can provide charging up to 7.5 W. The SD/microSD card reader accepts cards up to 2 TB and can handle both slots simultaneously for direct copying. Power Delivery 3.0 pass‑through charging up to 100 W is available via the PD USB‑C input.

Suitable for

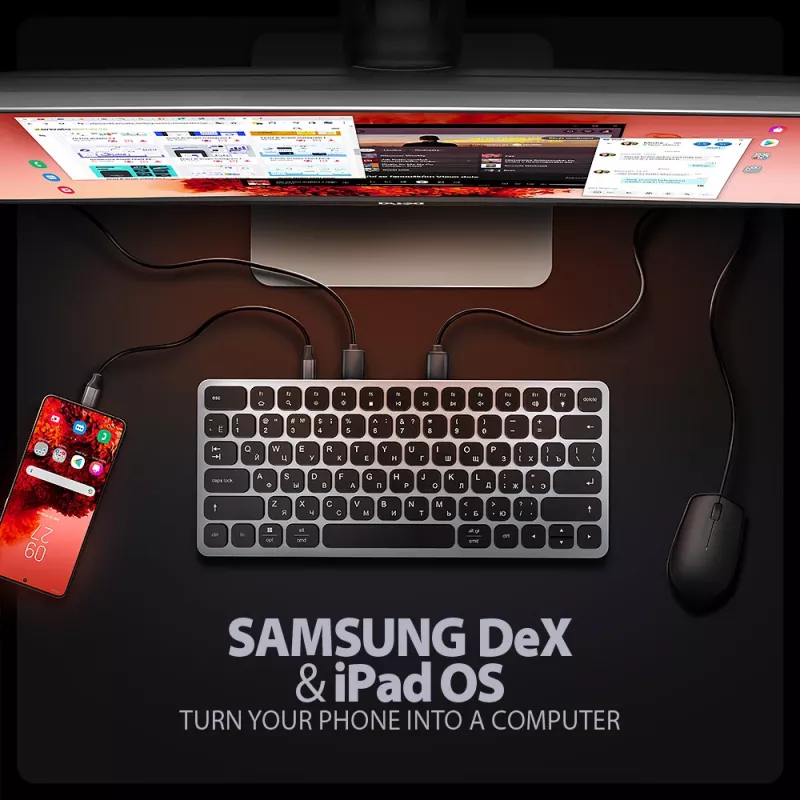

• Mobile productivity with DeX‑enabled Samsung phones and tablets (Galaxy Z Fold from Fold3, Galaxy S from S9, Note from Note8, Galaxy Tab S from S4)
• Desktop mode for Apple iPad Pro and iPad Air (from 2022); compatible with iPad mini (from 2021)
• Mirrored display usage with iPhone 15 Pro / Pro Max
• Connecting external monitor, storage drives, and audio accessories to USB‑C devices with DisplayPort Alt Mode

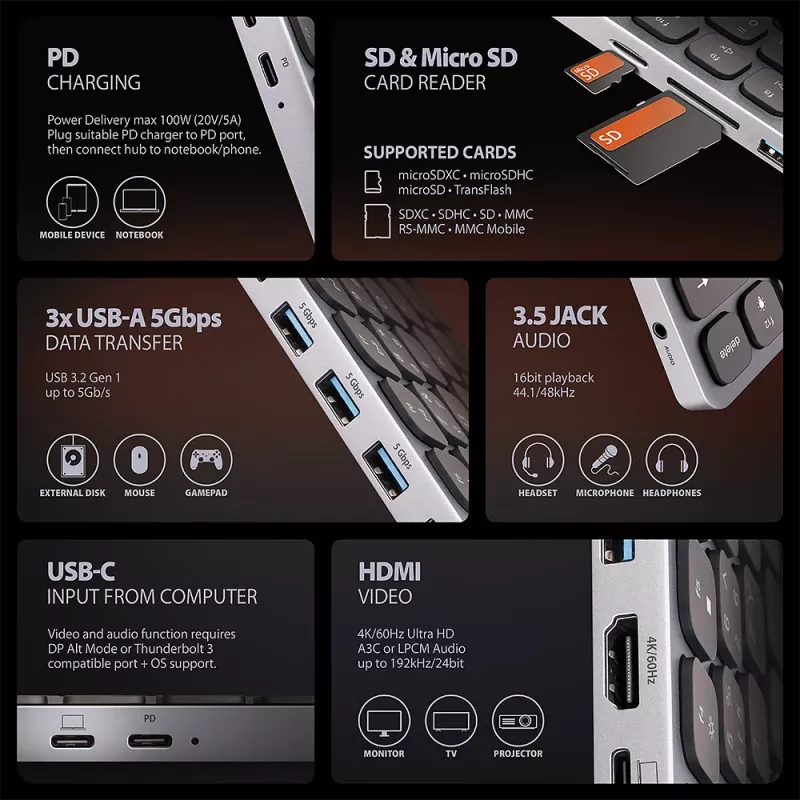

Key specifications

• Device interface: USB‑C (hub) with PD input (Power Delivery 3.0, up to 100 W)
• Video output: HDMI up to 4K/60Hz, 2K/120Hz or 1080p/200Hz; HDR, multi‑channel audio

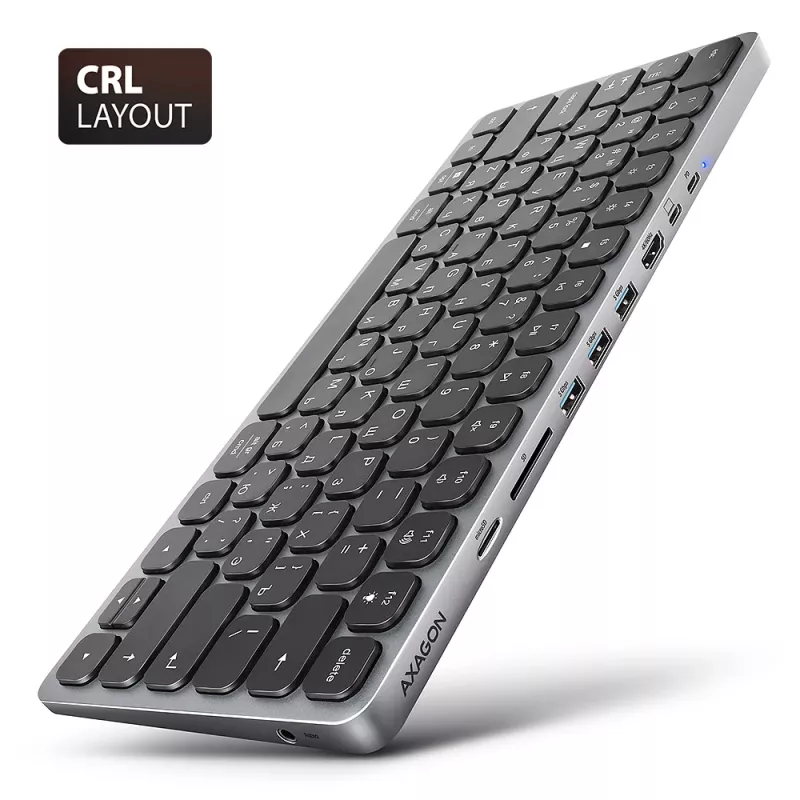

• Keyboard: integrated chiclet keyboard, scissor switch, 2 mm stroke, QWERTY layout with Cyrillic (Russian) legends, 12 multimedia keys, 5‑level white backlight

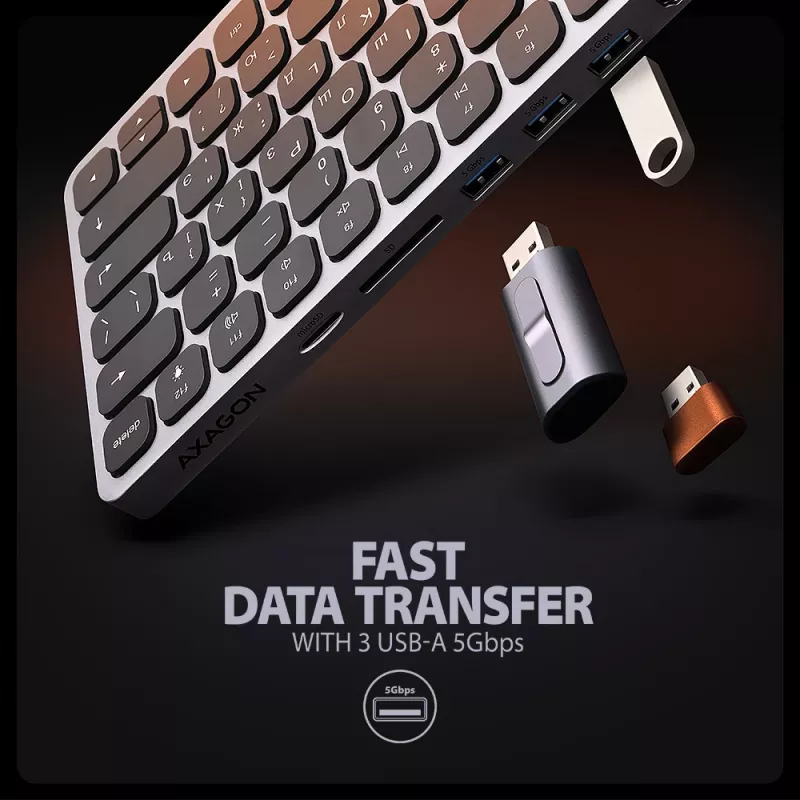

• USB ports: 3 × USB‑A 5 Gbps (data and charging up to 7.5 W per port)

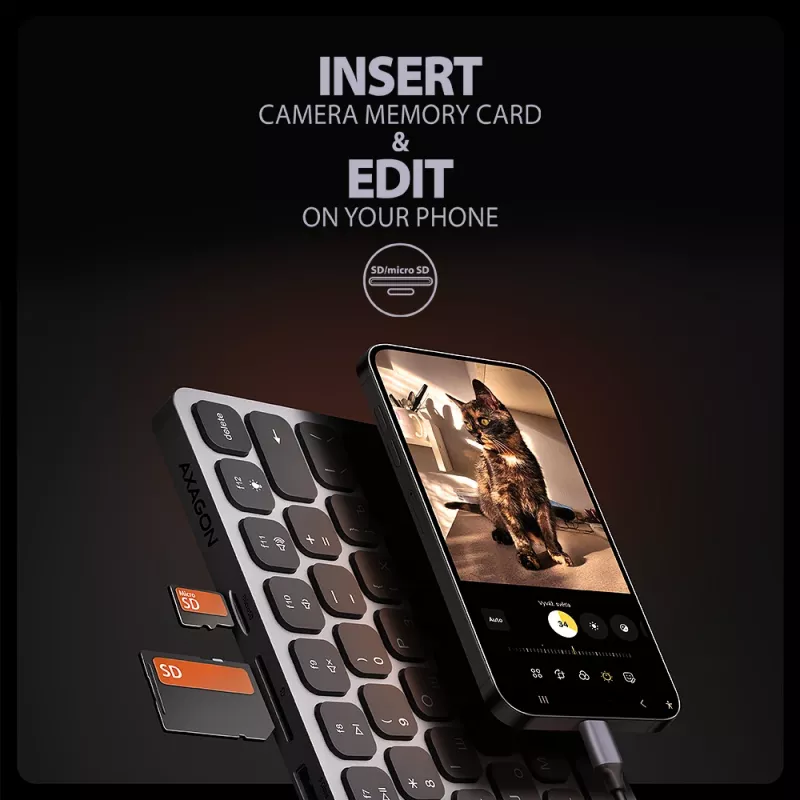

• Card reader: SD and microSD slots, UHS support, up to 2 TB, simultaneous dual‑slot operation and direct copying
• Audio: 3.5 mm stereo output for headphones/headset/speakers
• Cable: included 60 cm USB‑C cable
• Housing: aluminium and black finish

How to use

Connect the AXAGON HMC‑KB‑CRL to your phone, tablet or mini‑laptop using the supplied USB‑C cable. If you need pass‑through charging, connect a compatible PD charger to the hub’s USB‑C PD input. Attach an external monitor to the HDMI port, insert SD or microSD cards into the card reader, and plug USB devices into the USB‑A ports as required. Ensure the host device supports DisplayPort Alternate Mode for video output and Power Delivery for charging. Use the backlight and tilt adjustments on the keyboard for preferred typing comfort.

Recommendations

Use a Power Delivery charger that matches your device’s charging requirements to enable optimal pass‑through charging (up to 100 W). For best video performance, use a high‑quality HDMI cable and verify that your host device supports the required output resolutions and HDR.
