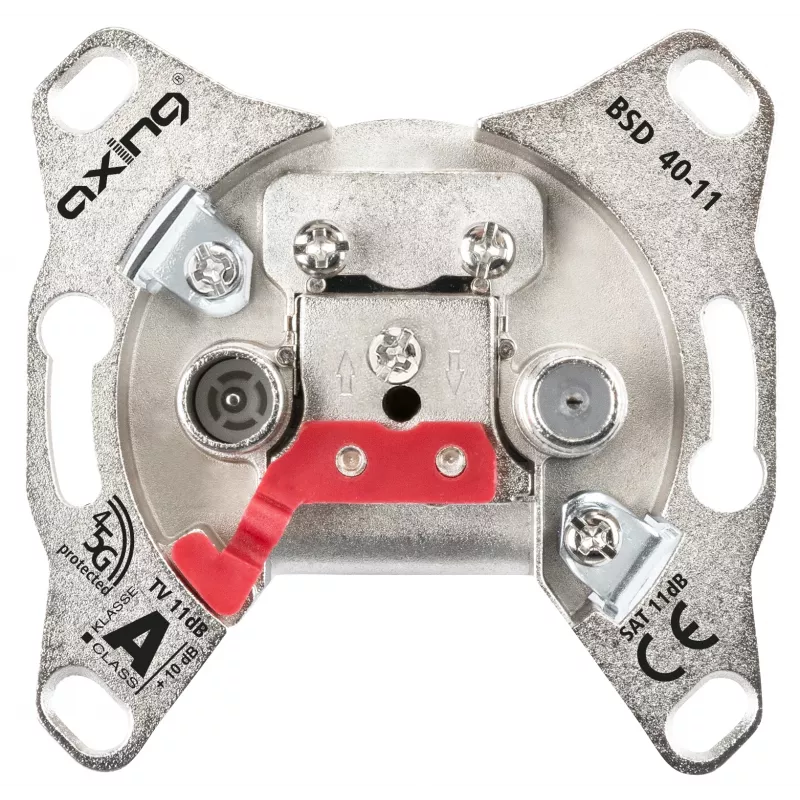

AXING BSD04011 BK/SAT Presa passante 11dB 40-2200MHz

The AXING BSD04011 is a high-quality BK/SAT through outlet designed for modern cable TV and satellite distribution systems. It combines TV, radio, and SAT signals into a single flush-mount unit, featuring an 11 dB output attenuation for optimal signal strength. Ideal for residential and commercial installations, this outlet ensures reliable performance across a wide frequency range.

Advantages

Integrated TV, radio, and SAT outputs simplify installation and reduce cabling. The through outlet design allows daisy-chaining multiple units without signal degradation. High shielding (>100 dB) minimizes interference, while DC passage supports SAT power supply.

Suitable for

• Single-family homes and apartments requiring combined TV and SAT distribution
• Hotel and office installations with multiple outlets
• Upgrading existing BK/SAT systems for better signal quality

Key specifications

• Frequency range: TV/Radio 40-862 MHz, SAT 950-2200 MHz
• Output attenuation: 11 dB (TV/Radio/SAT)
• Through attenuation: 1.5 dB (TV/Radio), 2.0 dB (SAT)
• Shielding: >100 dB
• Return loss: >18 dB
• DC passage: Yes (for SAT)
• Connectors: TV IEC male, Radio IEC female, SAT F-connector female
• Impedance: 75 Ohm
• Mounting: Flush-mount
• Number of outputs: 3 (TV, Radio, SAT)
• Number of through outputs: 1 (Coaxial)

Recommendations

For best performance, use with high-quality coaxial cables and ensure proper grounding. The BSD04011 is compatible with standard BK/SAT systems and can be used as a replacement for older outlets.
