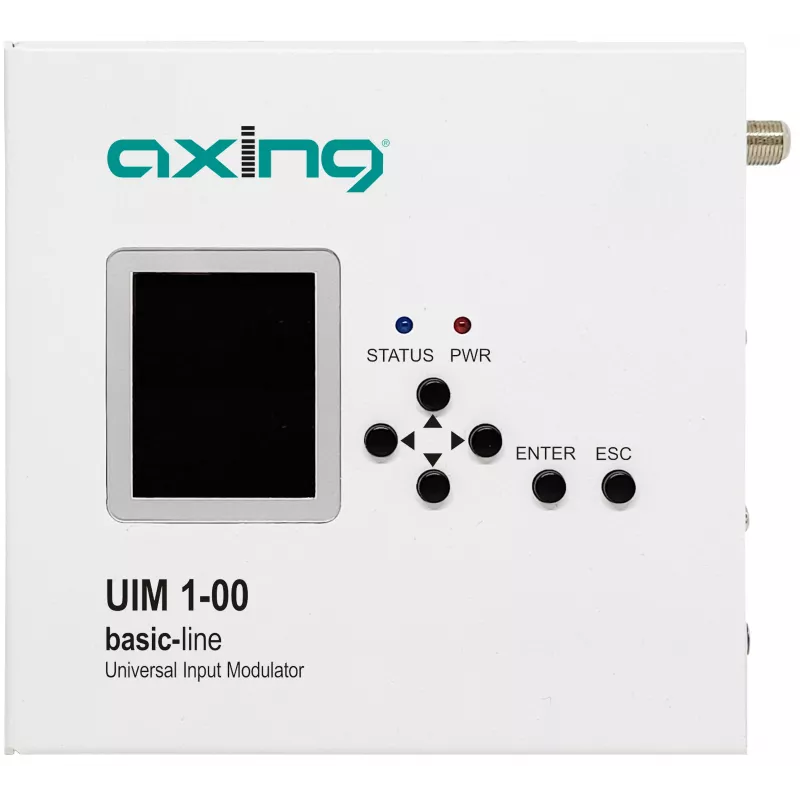

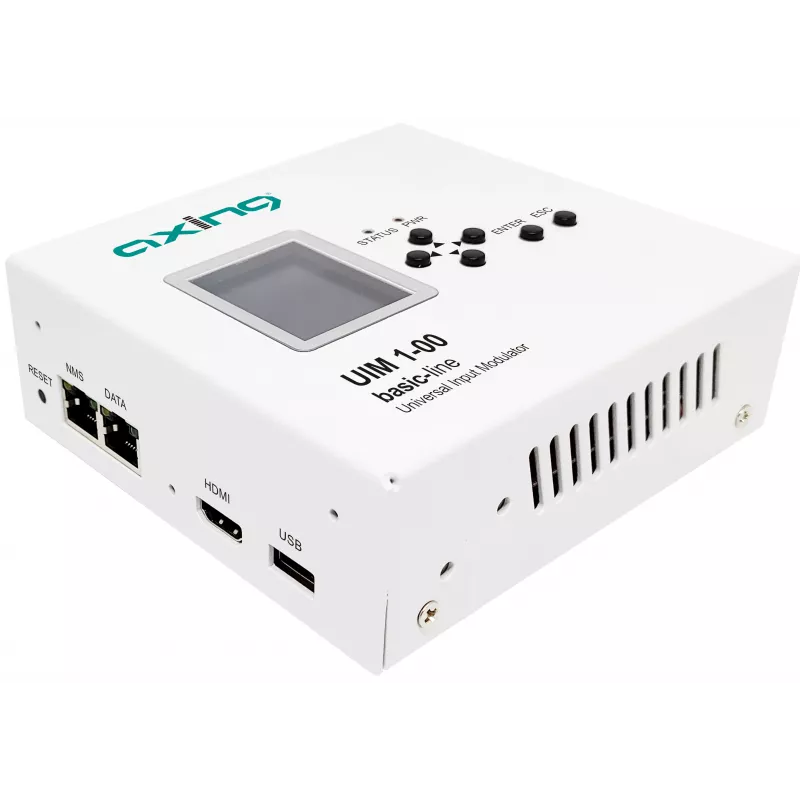

AXING UIM 1-00 modulatore universale di ingresso HDMI CVBS YPbPr su RF DVB-T/C

With a MER exceeding 35 dB and support for both DVB-T (COFDM) and DVB-C (QAM), the AXING UIM 1-00 delivers professional-grade signal conversion for any distribution network. This compact metal modulator accepts HDMI, CVBS, or YPbPr sources and outputs a robust RF signal across 47–862 MHz, making it a cornerstone for modern hospitality, education, and healthcare AV systems.

Overview

The UIM 1-00 is engineered for seamless integration into existing coaxial infrastructures. It automatically detects the active input, encodes video in H.264 up to 1080p, and modulates the stream into a selectable DVB-T or DVB-C channel. Configuration is straightforward via a USB connection, and the adjustable output level (70–100 dBµV) ensures optimal signal strength for any cable length or splitter configuration.

What stands out

• Dual modulation standard: DVB-T (COFDM) and DVB-C (QAM) with selectable constellations and bandwidths (6/7/8 MHz)
• High-quality encoding: H.264 video, MPEG1 Layer II/AAC audio, supporting up to 1080p resolution
• Flexible input options: HDMI, CVBS, and YPbPr with automatic detection
• Robust RF performance: adjustable output level (70–100 dBµV), MER >35 dB, wide frequency range
• Professional features: LCN support, configurable guard intervals and FEC, USB configuration
• Low power consumption (<10 W) and durable metal housing

Technical details

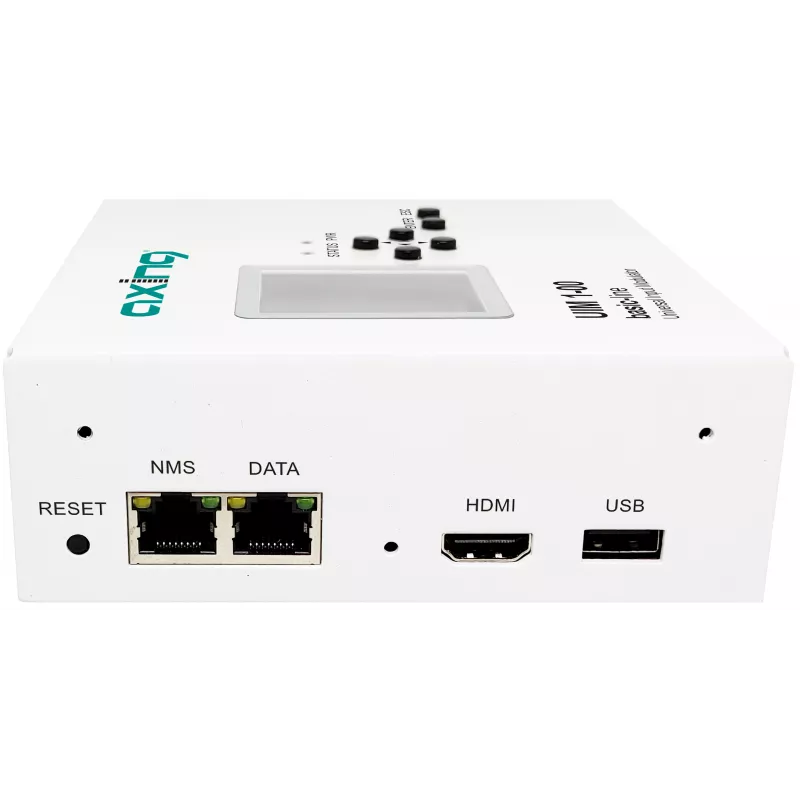

• Input Interfaces: 1x HDMI, 1x CVBS (RCA), 1x YPbPr (3x RCA)
• Output Interface: 1x RF (F-connector)
• Modulation: DVB-T (COFDM) / DVB-C (QAM) selectable
• Video Encoding: H.264 (MPEG-4 AVC)
• Audio Encoding: MPEG1 Layer II, AAC
• Max Video Resolution: 1080p (1920x1080 @ 30fps)
• Output Frequency Range: 47-862 MHz
• Output Level: 70-100 dBµV (adjustable)
• MER: >35 dB
• DVB-T Constellation: QPSK, 16QAM, 64QAM
• DVB-C Constellation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
• Bandwidth: 6, 7, 8 MHz (selectable)
• Guard Interval (DVB-T): 1/4, 1/8, 1/16, 1/32
• FEC (DVB-T): 1/2, 2/3, 3/4, 5/6, 7/8
• LCN Support: Yes
• Configuration Interface: USB (Type B)
• Power Supply: 12V DC, 1.5A (external adapter)
• Power Consumption: < 10 W
• Housing Material: Metal
• Operating Temperature: 0°C to +45°C

Our verdict

The AXING UIM 1-00 is a versatile and reliable solution for distributing a single AV source to multiple displays over existing coax. Its dual DVB-T/C capability, high MER, and flexible configuration make it an excellent choice for professional installations where signal quality and adaptability are paramount.
