B-Tech SYSTEM X - supporto di montaggio a doppia barra per BT8390 - 19 mm dalla parete

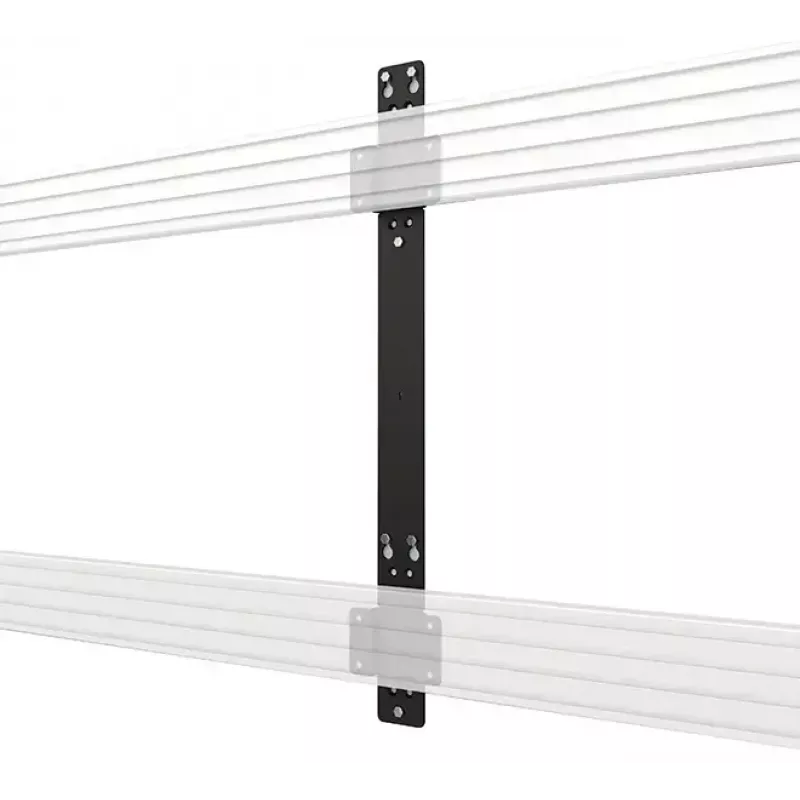

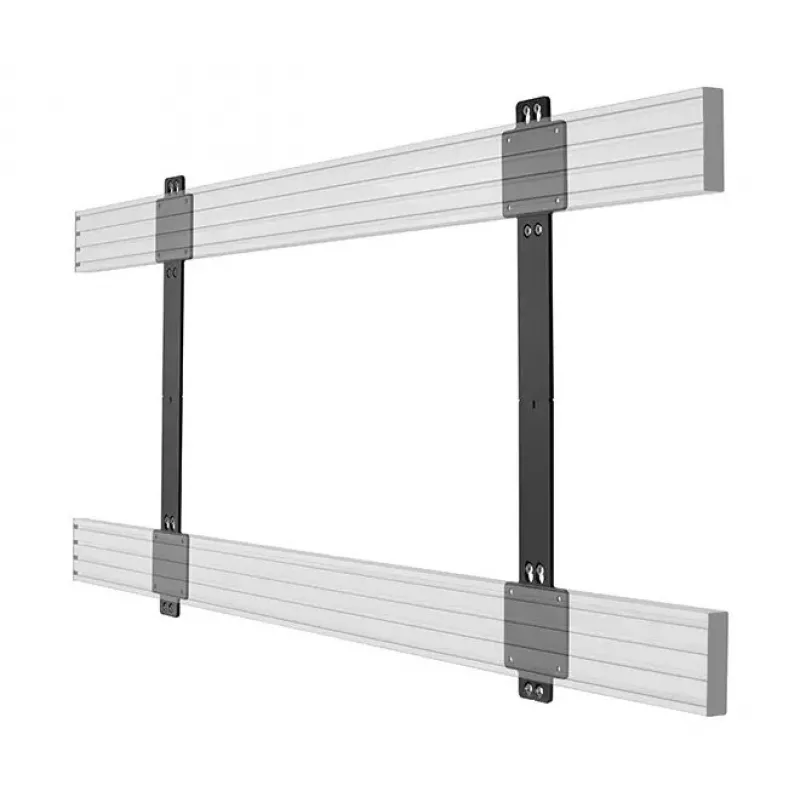

The B-Tech SYSTEM X Twin Rail Mounting Bracket for BT8390 positions and secures two BT8390 mounting rails at a fixed 138 mm width and 19 mm depth from the wall, providing a consistent mounting platform for large format displays up to approximately 18.9". Finished in black, the bracket is intended for rail mounting and is supplied with the necessary fixings to simplify installation. The product is TUV certified and carries cTUVus compliance, ensuring it meets recognised safety and performance standards.

Advantages

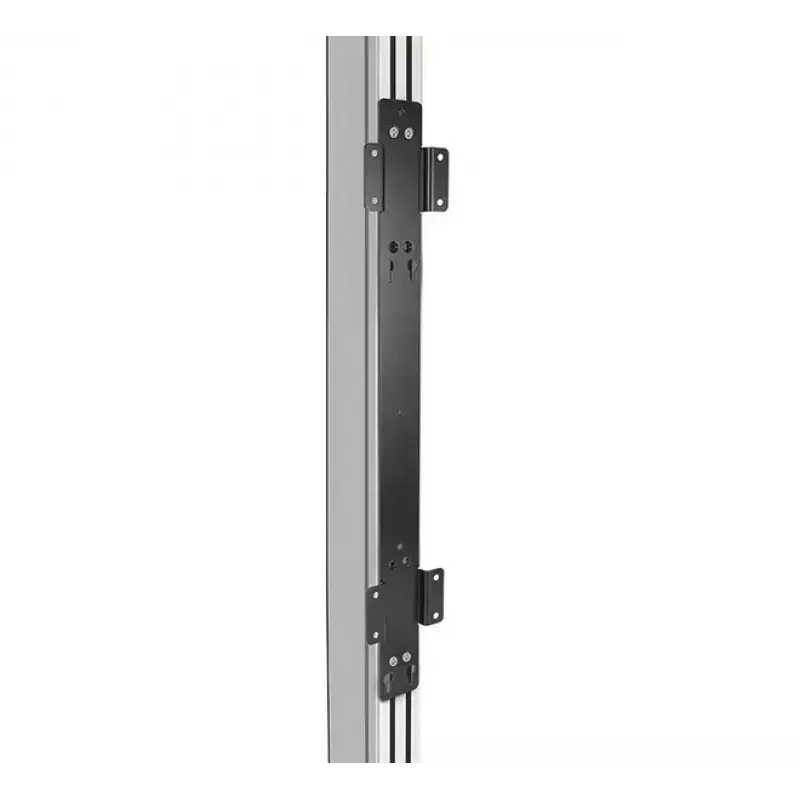

This twin rail bracket eliminates the need to measure and align two mounting rails during installation, reducing on-site labour and potential alignment errors. Its pre-set width and keyhole fixings enable quick positioning and secure attachment to walls or compatible vertical support columns. The compatibility with BT8390 horizontal rails and with BT8380 vertical columns offers flexibility for both wall-mounted videowalls and freestanding video wall configurations.

Suitable for

• Mounting large format displays on a dual-rail system
• Rapid installation of video walls using BT8390 horizontal rails
• Creating freestanding videowalls when used with vertical support columns
• Integrating with BT8390-VESA800F interface arms for fast attachment of displays

Key specifications

• Mounting type: Rail
• Material finish: Black
• Width (preset distance between rails): 138 mm
• Depth from wall: 19 mm
• Height: 850 mm
• Maximum recommended screen size: approx. 18.9"

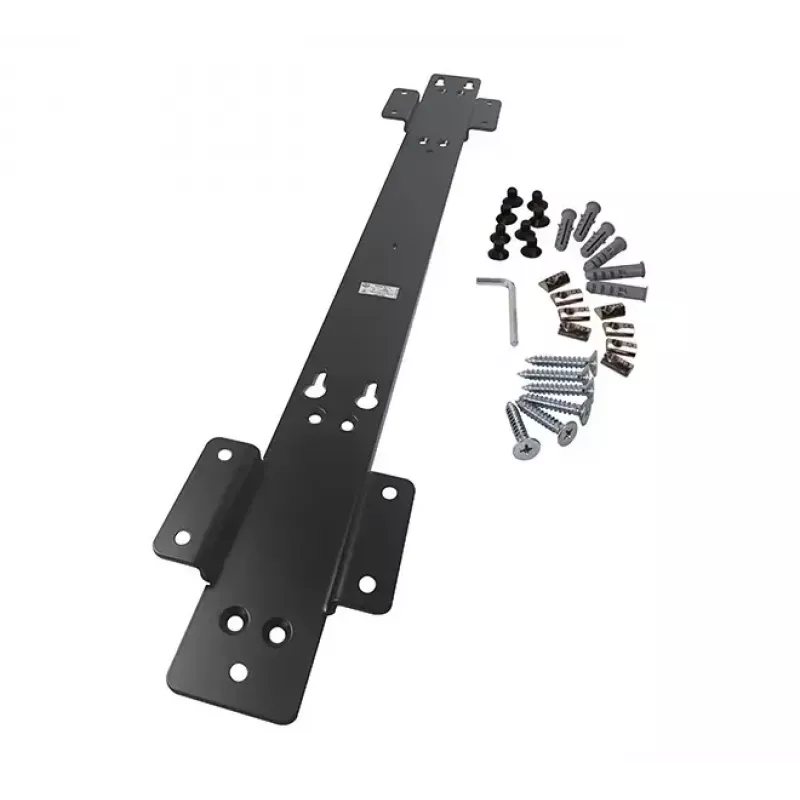

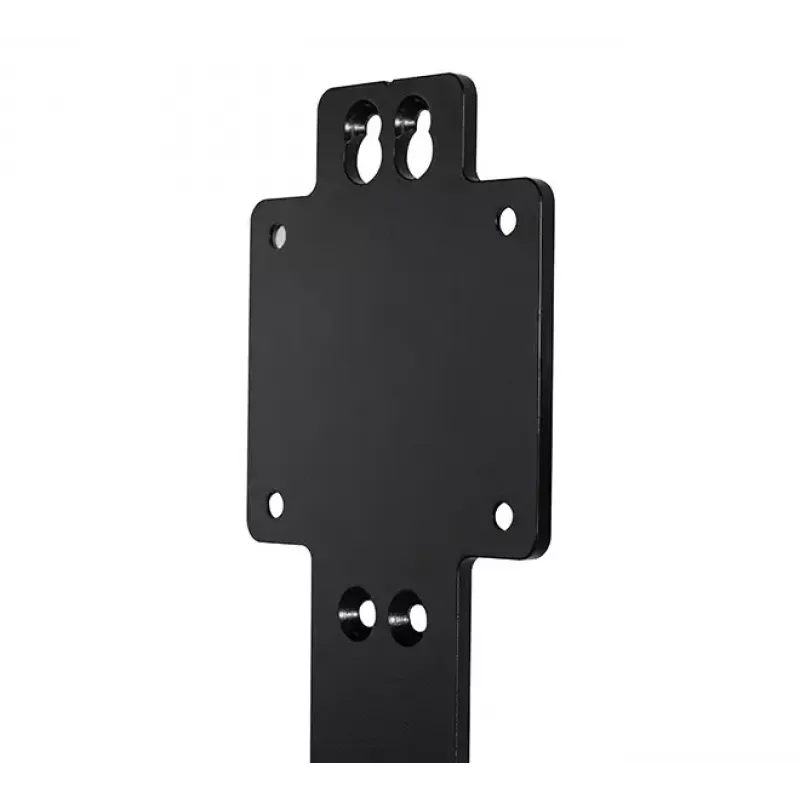

• Fixings: Keyhole fixings for quick installation; mounting hardware included
• Certifications: TUV, cTUVus compliance

How to use

Position the twin rail bracket at the desired mounting height and secure it to a suitable wall surface or vertical support column using the supplied fixings. Hang the BT8390 horizontal rails onto the bracket using the keyhole fixings, ensuring the rails engage fully and are level. Once the rails are secured, attach interface arms or display mounting hardware to the rails and mount displays according to the display manufacturer’s instructions. Verify all fastenings are tightened and the assembly is stable before installing screens.

Recommendations

Use only on walls or support structures capable of bearing the combined weight of rails and displays; consult site structural guidelines if uncertain. For videowall installations, follow the BT8390 and display manufacturer instructions for alignment and safety. Regularly check fixings and supports for signs of loosening or wear, especially in public or high-traffic installations.
