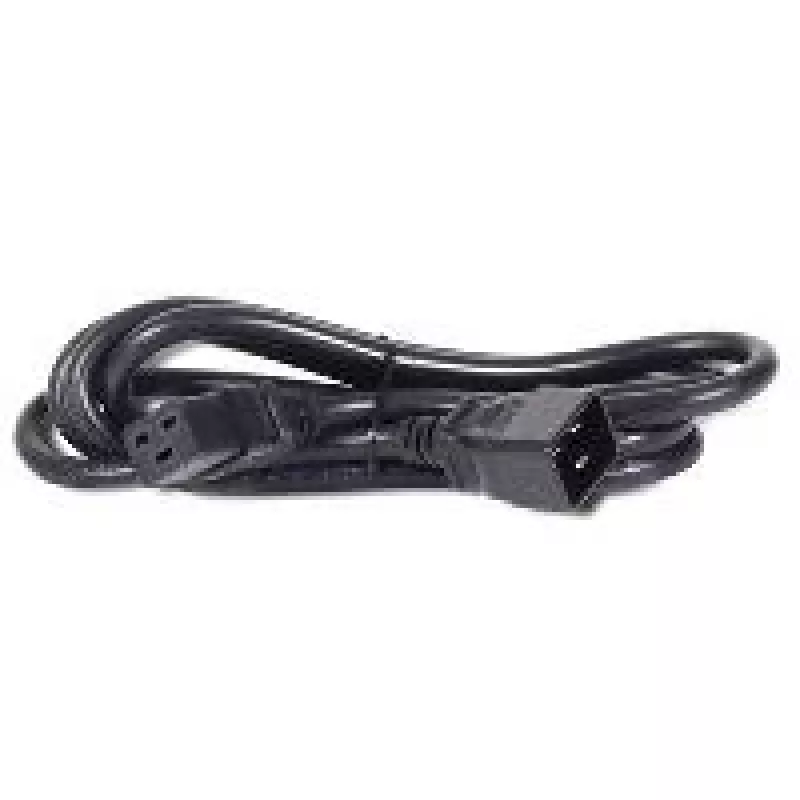

BACHMANN Cavo di alimentazione IEC C20 su C19 1m Nero 16A 250V 356.1228

Connect a server or network switch with a C20 inlet to a PDU or UPS equipped with C19 outlets using this 1-meter black power cable. The cable carries up to 16 A at 250 V AC, supporting loads up to 4000 W, and uses 3 x 1.5 mm² copper conductors with PVC insulation and jacket, meeting H05VV-F cable standards.

Key specifications

• Connector 1: IEC 60320 C20 (male)
• Connector 2: IEC 60320 C19 (female)
• Length: 1 m
• Current rating: 16 A
• Voltage rating: 250 V AC
• Max power: 4000 W
• Conductor cross section: 3 x 1.5 mm²
• Conductor material: Copper
• Jacket material: PVC
• Cable standard: H05VV-F
• Colour: Black

Why choose it

This cable is suitable for high-power IT equipment in data centers and server rooms. The C20 to C19 configuration is a common choice for connecting PDUs to servers, switches, and UPS systems.

Ideal use cases

• Connecting a server with a C20 inlet to a PDU with C19 outlets
• Powering network switches and storage arrays from a UPS
• Extending power distribution in rack cabinets

Good to know

The cable operates within a temperature range of -10 °C to 70 °C. It is CE and RoHS compliant.
