Bachmann ELEVATOR2 modulo prese da incasso per tavolo 1x Schuko 2x Eurospina nero 0,5m

Deliver up to 3680 W from a single desk cut-out with the Bachmann ELEVATOR2 pop-up power module. Three sockets rise flush to the worktop and hide away when not needed, finished in deep black RAL 9005 to blend into modern office furniture.

Overview

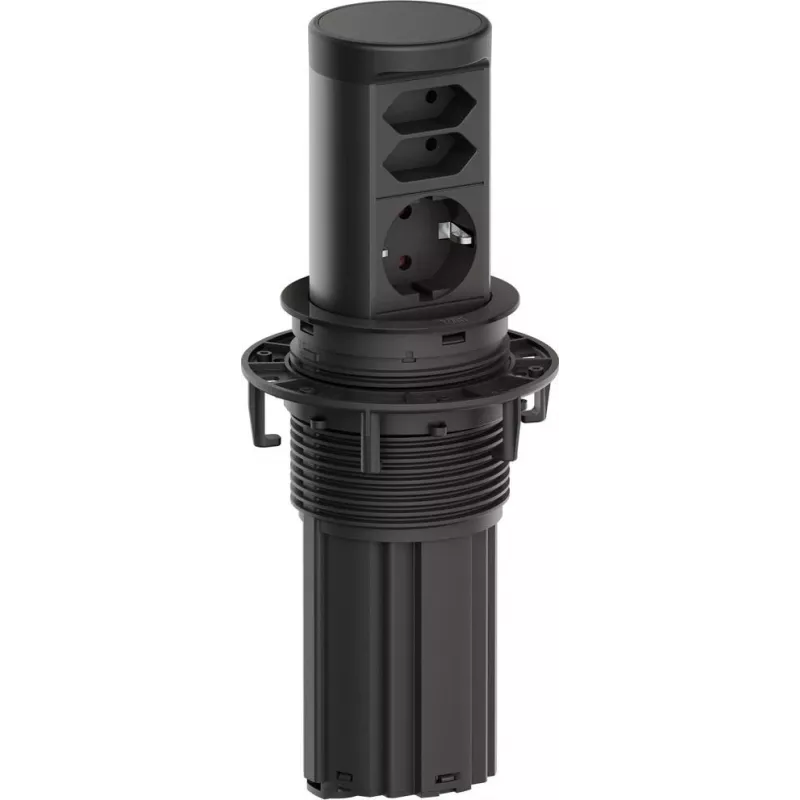

This desk-integrated power module combines one CEE 7/3 Schuko socket and two CEE 7/16 Europlug sockets in a compact aluminium and plastic housing. The 0.5 m H05VV-F 3G1.5 cable terminates in a CEE 7/7 plug, ready for connection to a standard 230 V AC mains supply. With a drill hole diameter of just 79 mm and an installation depth of 130 mm, it fits most desks, conference tables, and workbenches.

What stands out

• Pop-up design: sockets hide flush when closed, protecting them from dust and spills.
• Three sockets: one Schuko for high-power devices, two Europlugs for chargers and small electronics.
• Robust build: aluminium top plate and plastic body withstand daily use.
• Easy retrofit: only a 79 mm round cut-out required, no complex mounting.
• CE certified and IP20 rated for indoor use.

Technical details

• Socket configuration: 1x CEE 7/3 (Schuko) + 2x CEE 7/16 (Europlug)
• Nominal voltage: 230 V AC, 50 Hz
• Maximum current: 16 A
• Maximum power: 3680 W
• Cable length: 0.5 m
• Cable type: H05VV-F 3G1.5
• Plug type: CEE 7/7 (Schuko)
• Mounting: desk integrated / pop-up
• Drill hole diameter: 79 mm
• Top plate diameter: 95 mm
• Installation depth: 130 mm
• Housing material: aluminium / plastic
• Colour: black (RAL 9005)
• Protection class: IP20
• Certification: CE

Our verdict

A sleek, robust solution for powering devices at the desk. The pop-up mechanism keeps the work surface clean, and the three sockets cover both high-power and low-power needs. Installation is straightforward, and the black finish complements contemporary office design.
