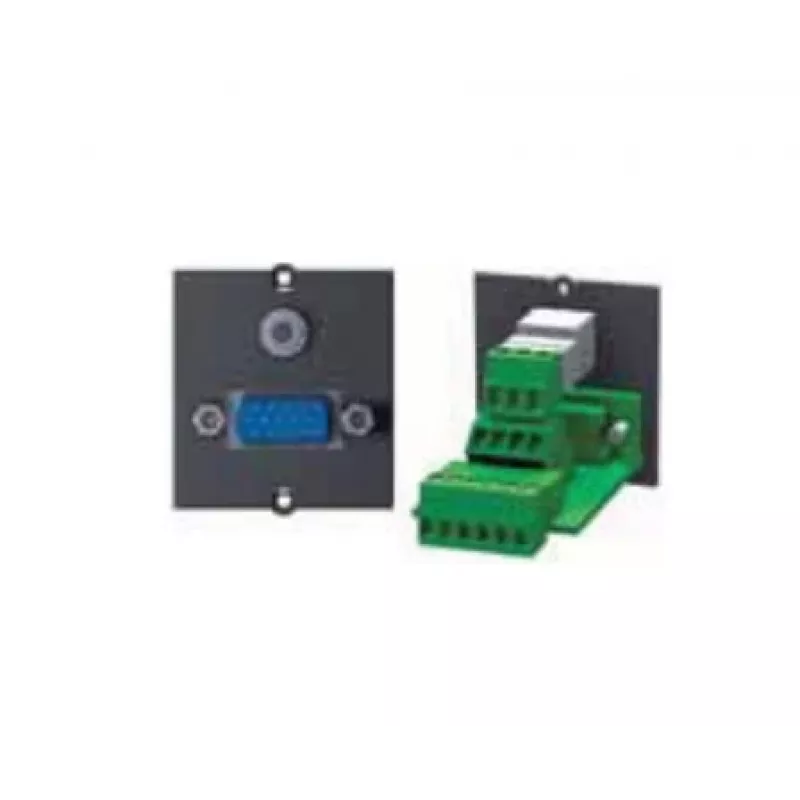

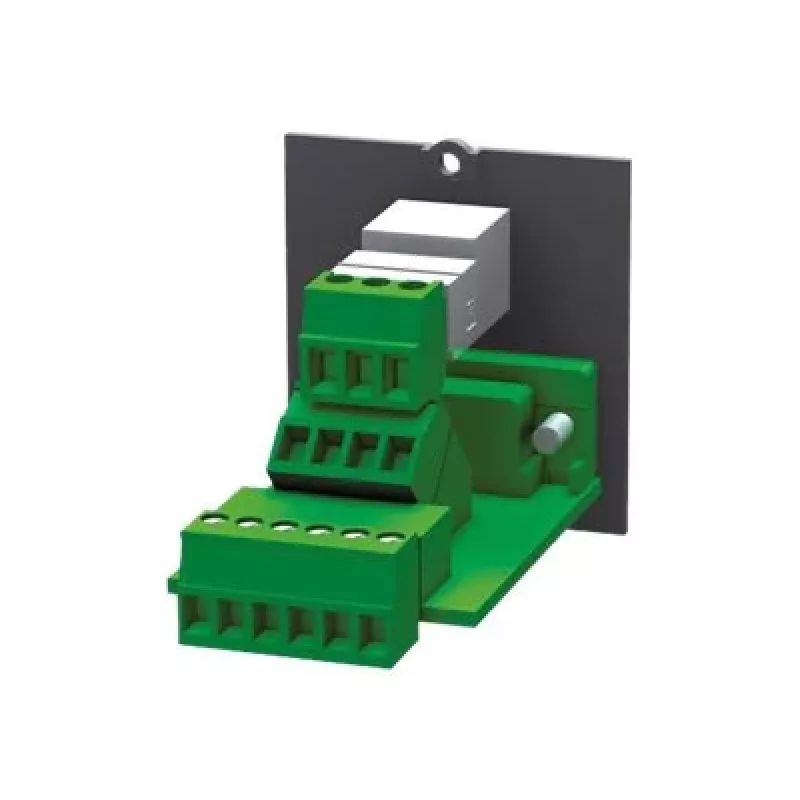

Bachmann Modular Faceplate Snap-In - connettore femmina HD-15 VGA nero

The Bachmann Modular Faceplate Snap-In HD-15 is a high-quality VGA coupler module designed for seamless integration into Bachmann modular surface systems. This snap-in module allows for easy tool-free installation and provides a reliable female-to-female HD-15 (VGA) connection for analog video signal transmission. Ideal for use in desks, power frames, and custom module systems, it ensures a clean and professional finish for your connectivity needs.

Advantages

Tool-free snap-in installation saves time and effort. Compact design fits perfectly into Bachmann modular faceplates. Robust plastic housing with nickel-plated connectors ensures durability and reliable signal transfer. Supports standard VGA resolutions for data display and video applications.

Suitable for

• Bachmann DESK, POWER FRAME, KINECT, and Custom Module Systems
• Office environments requiring integrated VGA connectivity
• Conference rooms, training facilities, and presentation areas
• Any installation where a flush-mounted VGA coupler is needed

Key specifications

• Module Type: Snap-In Module
• Connector Type (Front): HD-15 (VGA) Female
• Connector Type (Rear): HD-15 (VGA) Female
• Number of Ports: 1
• Signal Type: Analog Video (VGA)
• Pin Configuration: 15-pin D-sub
• Gender: Female-Female (Coupler)
• Housing Material: Plastic
• Housing Color: Black
• Connector Plating: Nickel
• Front Plate Dimensions (W x H): 19.2 x 36.8 mm
• Installation: Tool-free snap-in
• Certifications: RoHS, CE
• Operating Temperature: 0°C to 50°C

Recommendations

For optimal performance, use high-quality VGA cables and ensure proper cable management. This module is a pass-through device; resolution support depends on connected equipment.
