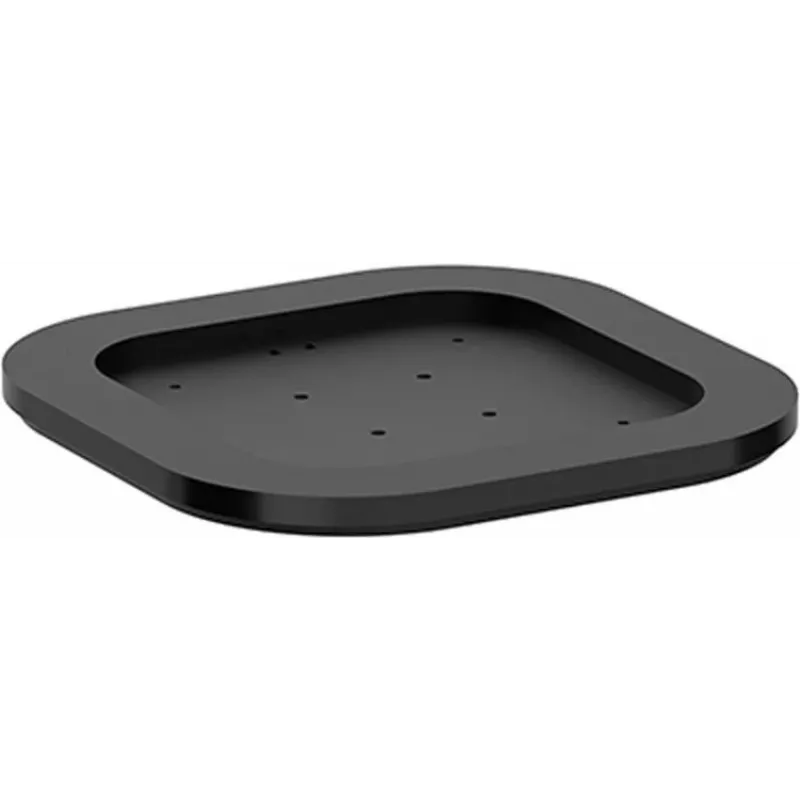

Bachmann Pole L piastra di base M709.100 piastra di montaggio per pali luce Pole L

The Bachmann Pole L Base Plate M709.100 is a mounting base plate designed for use with Pole L lighting columns. It provides a stable mechanical connection between the lighting column and the foundation, allowing secure installation of outdoor lighting posts in professional projects. The component is intended to be used where a compatible Pole L column is specified, delivering the necessary support for vertical loads and basic resistance to lateral forces.

Advantages

This base plate is manufactured to fit Pole L lighting columns from Bachmann, ensuring dimensional compatibility and straightforward assembly. Its design focuses on reliable load transfer from the column into the foundation and on making the column removable or replaceable when required. The plate enables precise alignment during installation and helps maintain stability under normal environmental conditions. The product supports standardized mounting procedures used in professional outdoor lighting installations.

Suitable for

• Mounting Bachmann Pole L lighting columns on concrete foundations
• Replacement of damaged or corroded base plates in existing installations
• Professional outdoor lighting projects for streets, pathways, and car parks
• Situations where a secure, serviceable connection between column and foundation is required

Key specifications

• Compatibility: designed for Pole L lighting columns
• Function: structural mounting base plate for column-to-foundation connection
• Material: engineered for outdoor use (metal construction suitable for mechanical support)
• Mechanical role: transfers vertical and lateral loads to foundation and allows column anchoring
• Installation type: bolted or anchored connection to foundation with column fastened to plate

How to use

Install the base plate on a prepared concrete foundation following project drawings and local building codes. Position and level the plate, fix it to the foundation using appropriately specified anchors or bolts, and ensure correct alignment before tightening. Mount the Pole L column onto the base plate and secure it with the manufacturer-recommended fasteners. Confirm that the assembly is plumb and that all connections are tightened to the specified torque values.

Recommendations

Use suitable corrosion protection and fasteners rated for outdoor exposure; verify anchor types and embedment depths against local wind and structural requirements. Inspect the base plate and fasteners periodically for corrosion or loosening and perform maintenance or replacement as needed to preserve structural integrity.
