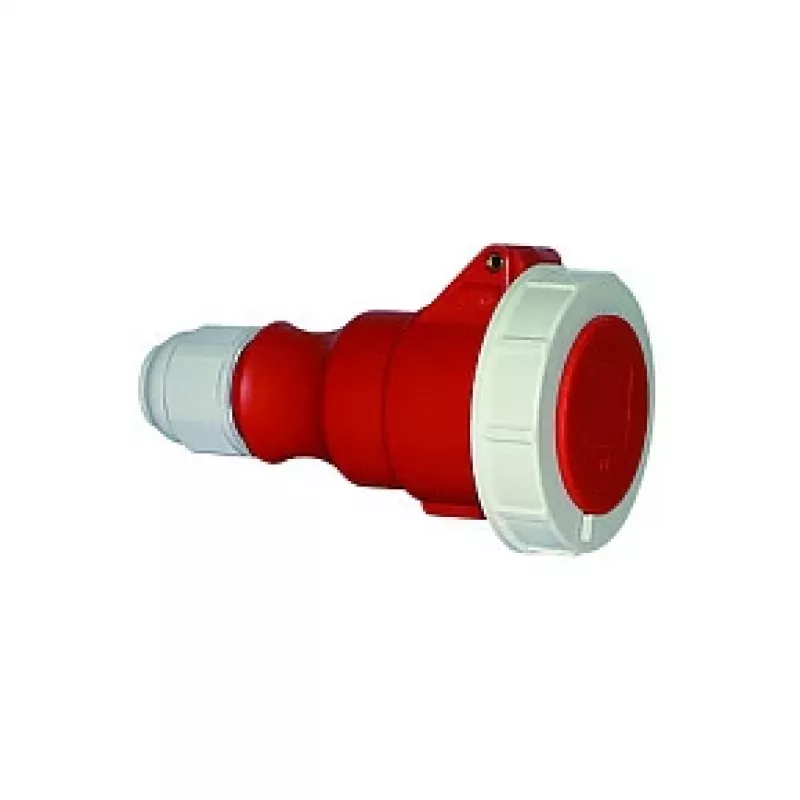

BALS 32A presa CEE 4 poli 380-440V IP67 con pressacavo MULTI-GRIP

Rated for 32 A at up to 440 V, this 4-pole CEE coupling delivers robust, watertight power connections in demanding industrial environments. The IP67-rated housing and MULTI-GRIP cable gland ensure reliable performance even when temporarily submerged, making it ideal for construction sites, marinas, and outdoor events.

Overview

The BALS 310567 is a high-current industrial connector engineered for 3-phase + earth (3P+E) applications. Its 3h earth contact position guarantees correct phase alignment, while screw terminals provide secure, low-resistance connections. The red polyamide housing is impact-resistant and UV-stabilized, offering long service life in harsh conditions.

What stands out

• IP67 protection: dust-tight and withstands temporary immersion in water.
• MULTI-GRIP cable gland accommodates cable diameters from 11 to 23 mm, providing strain relief and sealing without additional parts.
• Brass contacts with nickel plating ensure excellent conductivity and corrosion resistance.
• Wide operating temperature range from -25°C to +40°C.
• Complies with IEC 60309-1 and IEC 60309-2 standards for global compatibility.

Technical details

• Current rating: 32 A
• Voltage range: 380–440 V, 50/60 Hz
• Number of poles: 4 (3P+E)
• Earth contact position: 3h
• Connection: screw terminals
• Housing material: polyamide (PA6)
• Contact material: brass
• Mounting type: free-hanging / in-line
• Colour: red

Our verdict

A rugged, future-proof coupling that meets the highest protection standards. The MULTI-GRIP system simplifies installation and ensures a durable seal, making it a top choice for professional electricians and industrial maintenance teams.
