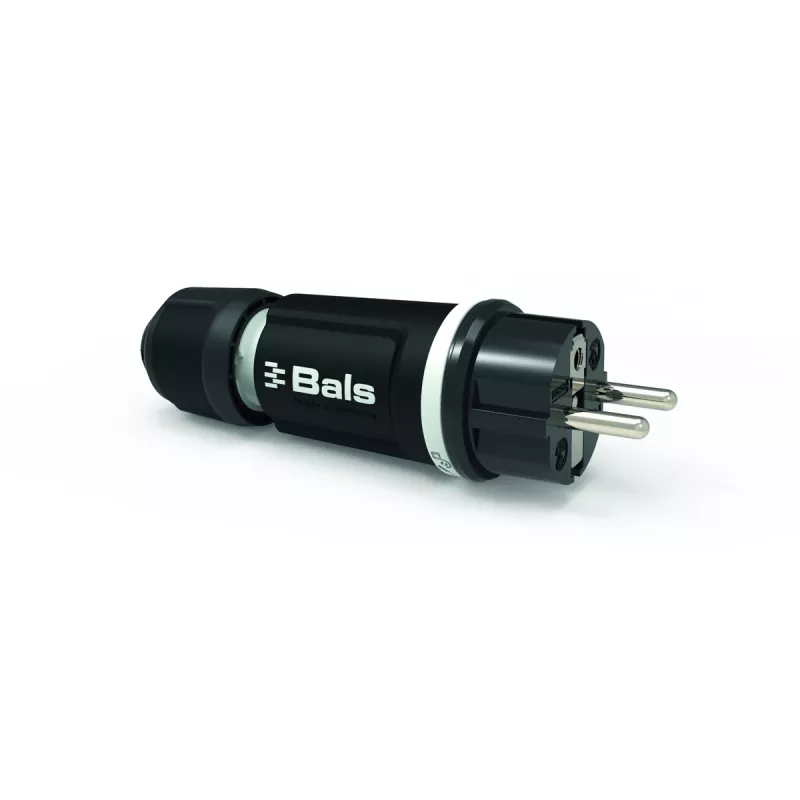

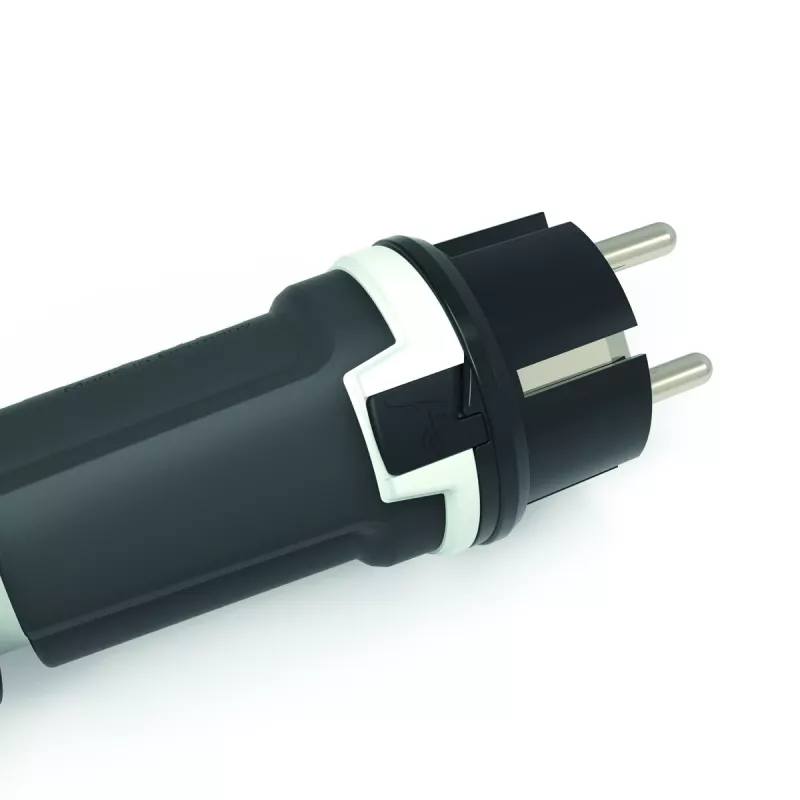

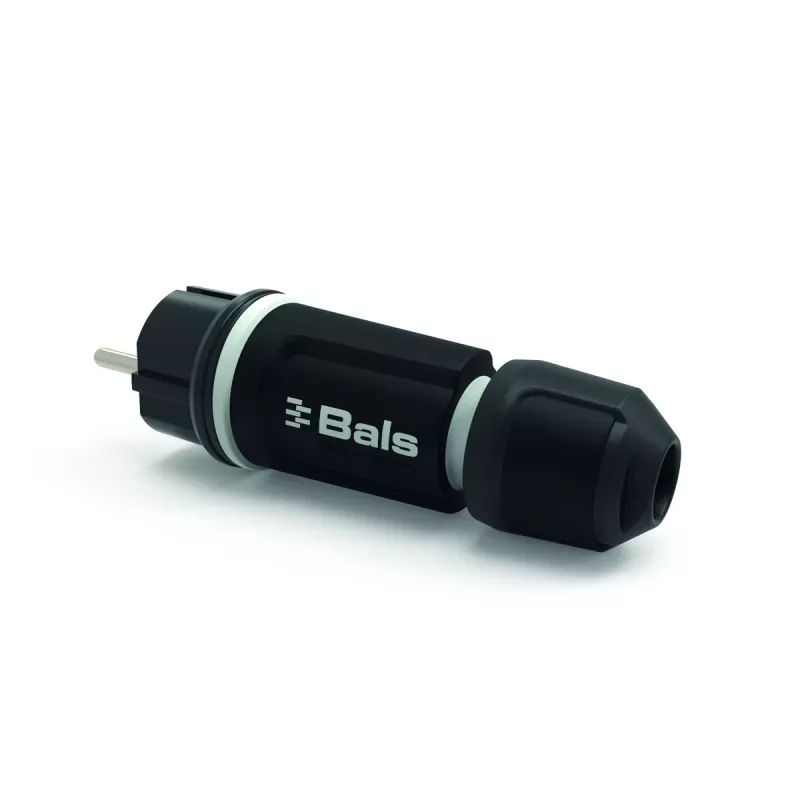

BALS 7371-1 connettore maschio Schuko 16A 3p 250V IP54 nero gomma

The BALS 7371-1 Schuko plug is built for tough environments where standard plugs fail. Its solid rubber housing and IP54 rating protect against dust and splashing water, making it a reliable choice for industrial, outdoor, and construction site applications. With screw terminals and a straight cable entry, it accommodates cables from 6 to 13 mm in diameter, ensuring a secure connection for a wide range of cords.

Highlights

• Rated for 16 A and 250 V AC, suitable for heavy-duty equipment
• IP54 ingress protection: resistant to dust and water splashes
• Solid rubber housing withstands mechanical stress and harsh conditions
• Brass contacts ensure reliable conductivity and long service life
• Complies with DIN VDE 0620-1 and IEC 60884-1

In daily use

The straight cable entry and screw terminals simplify installation, while the black rubber body provides a firm grip and excellent insulation. The plug's Class I design with earth contact enhances safety, and its operating temperature range from -25°C to +80°C allows use in extreme climates. Whether powering tools on a construction site or connecting outdoor equipment, this plug delivers consistent performance.

Full specifications

• Plug standard: CEE 7/4 (Schuko)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Number of poles: 2P+E
• Ingress protection: IP54
• Housing material: solid rubber
• Colour: black
• Connection type: screw terminals
• Cable entry: straight
• Max. cable diameter: 13 mm
• Min. cable diameter: 6 mm
• Frequency: 50/60 Hz
• Temperature range: -25°C to +80°C
• Contact material: brass
• Protection class: Class I
• Standards: DIN VDE 0620-1, IEC 60884-1

Final note

Built to last in demanding conditions, the BALS 7371-1 is a dependable power connection solution for professionals.
