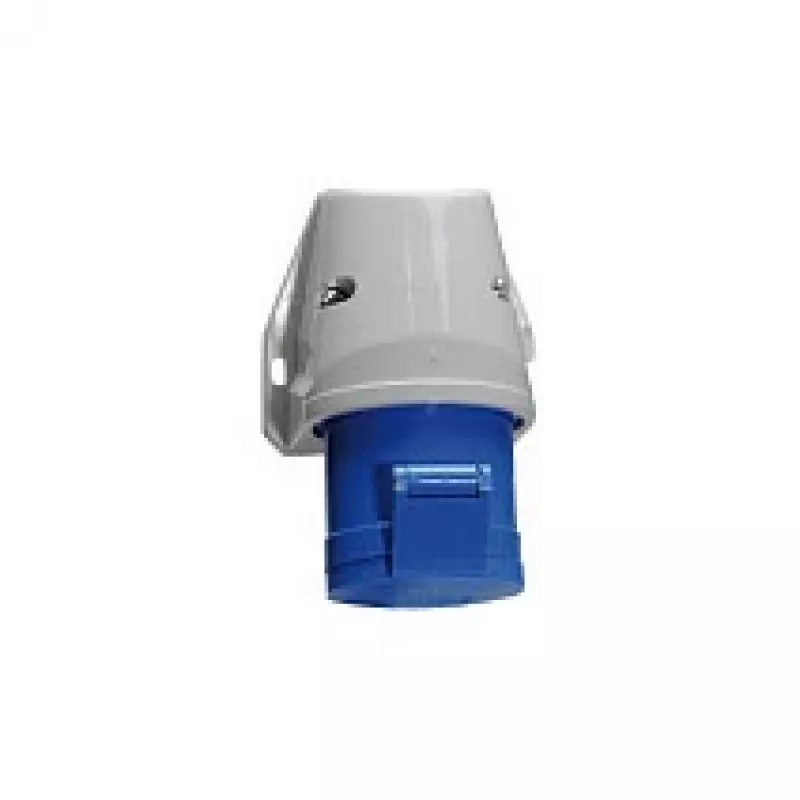

BALS presa a parete CEE 3x16A 230V IP44 Quick-Connect 11895

For installations where a standard wall socket simply cannot cope, the BALS 11895 delivers a robust CEE solution that combines a 16 A rating with IP44 protection and tool-free Quick-Connect terminals. Unlike conventional domestic outlets, this wall-mounted unit is built to handle industrial loads while remaining easy to wire and maintain, making it a practical choice for workshops, commercial kitchens, construction sites and sheltered outdoor areas.

Highlights

• IEC 60309 compliant CEE socket outlet with 3-pole (2P+E) configuration and 6h earth contact position
• Rated for 16 A at 200–250 V AC, 50/60 Hz – ideal for heavy-duty equipment and temporary power distribution
• IP44 ingress protection guards against splashing water and solid objects larger than 1 mm
• Quick-Connect screwless terminals accept 1.5–4 mm² conductors, speeding up installation and reducing wiring errors
• Robust polyamide (PA6) housing with UL94 V2 flammability rating for long-term durability
• Multiple cable entry options (top, bottom, rear) allow flexible routing in tight spaces
• Grey/blue colour scheme clearly identifies the socket as a 230 V CEE outlet

In daily use

Mount the BALS 11895 on any suitable wall or panel and connect your supply cable via the Quick-Connect terminals – no special tools or ferrules required. The screwless clamping system holds conductors securely, yet allows quick release for maintenance or reconfiguration. Once installed, the socket provides a reliable connection point for portable distribution boards, power tools, catering equipment and other three-pole loads.

Full specifications

• Socket standard: IEC 60309 (CEE)
• Mounting type: Wall-mounted
• Current rating: 16 A
• Voltage rating: 200–250 V AC (230 V nominal)
• Number of poles: 3-pole (2P+E)
• Frequency: 50/60 Hz
• Ingress protection: IP44
• Connection technology: Quick-Connect (screwless terminals)
• Earth contact position: 6h
• Housing material: Polyamide (PA6)
• Colour: Grey / Blue
• Cable entry options: Top, bottom, rear
• Operating temperature: -25 °C to +40 °C
• Terminal cross-section: 1.5–4 mm²
• Flammability class: UL94 V2
• Standards compliance: IEC 60309-1, IEC 60309-2
• Number of sockets: 1
• Application environment: Industrial, commercial, construction sites, camping (protected outdoor)

Final note

The BALS 11895 is a dependable, code-compliant choice for any project requiring a fixed 16 A CEE outlet with quick wiring and weather-resistant performance.
