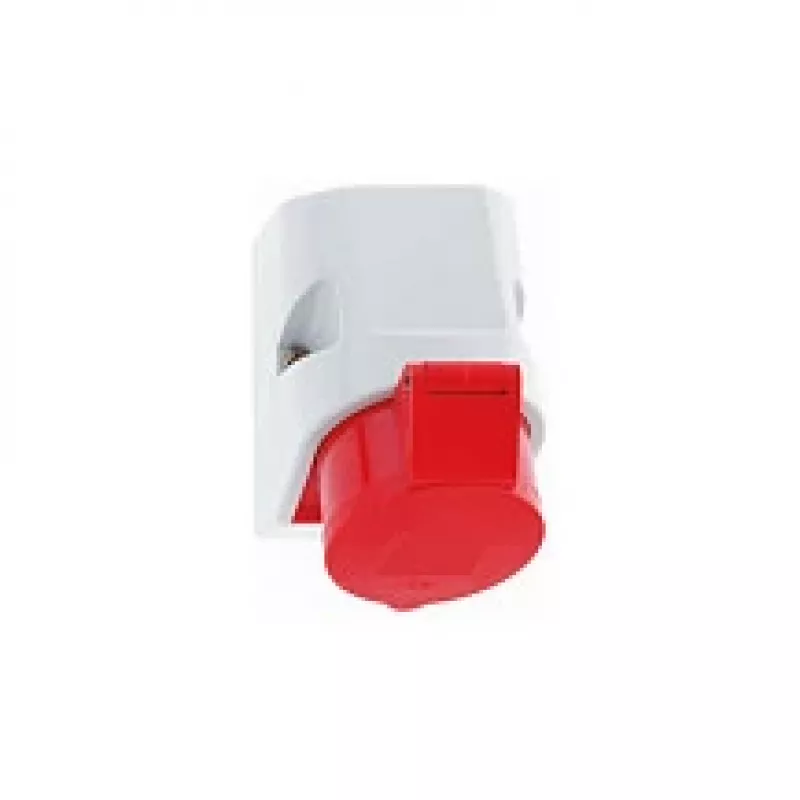

BALS presa a parete CEE 5x16A 400V IP44 6h Quick-Connect

This CEE wall-mounted socket delivers a robust 16 A, 400 V three-phase power connection with IP44 splash protection, making it a reliable choice for industrial and outdoor applications. Its Quick-Connect screwless terminals reduce wiring time significantly, while the 6h earth contact position ensures correct phase alignment for 400 V equipment.

Advantages

The socket's polyamide housing withstands mechanical stress and UV exposure, and the IP44 rating guards against water splashes from any direction. The Quick-Connect system allows tool-free insertion of solid or stranded conductors from 1.5 to 4 mm², cutting installation effort by up to 50%. Brass contacts with low contact resistance ensure minimal heating under full load, and the red RAL 3000 colour provides instant identification of 400 V circuits.

Suitable for

• Industrial machinery and three-phase tools
• Outdoor power distribution in construction sites
• Marinas, campsites, and agricultural facilities
• Permanent wall-mounted installations in workshops

Key specifications

• Rated current: 16 A
• Rated voltage: 400 V (3P+N+PE)
• Frequency: 50/60 Hz
• Ingress protection: IP44
• Earth contact position: 6h
• Connection technology: Quick-Connect (screwless)
• Terminal cross-section: 1.5–4 mm²
• Housing material: Polyamide (PA6)
• Contact material: Brass
• Standards: IEC 60309, EN 60309
• Operating temperature: -25 °C to +40 °C
• Glow wire test: 850 °C

Recommendations

Pair this socket with a matching BALS CEE plug and a suitable cable gland to maintain the IP44 rating.
