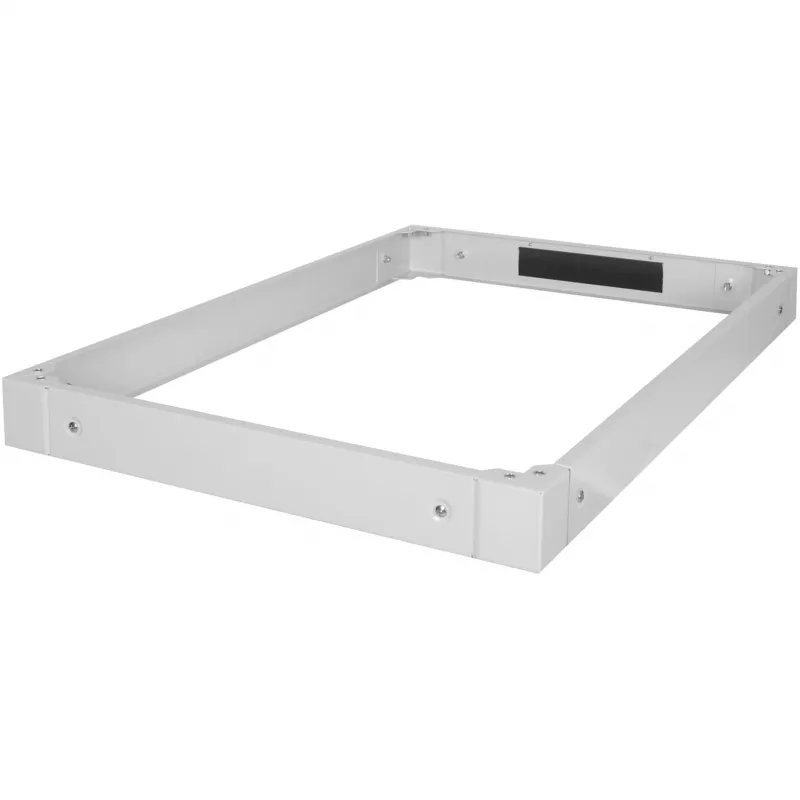

Basamento per rack Digitus DN-19 PLINTH-8/12-1

The DIGITUS Rack plinth DN-19 PLINTH-8/12-1 is a 19" base plinth for server enclosures in the Unique series, designed to increase stability and usable space in server rooms. With a width of 800 mm and a depth of 1200 mm, the plinth raises the cabinet floor clearance by 100 mm, creating an internal cavity for routing and storing excess cable lengths. The unit is finished in grey and is supplied unassembled to simplify transport and logistics.

Advantages

This rack plinth offers a sturdy foundation for compatible 483 mm (19") cabinets and improves cable management by providing a dedicated interior space and a cable feed-through with a brush strip. It is manufactured to German quality standards, fits the Unique and Dynamic Basic series, and can be stacked—up to two plinths—to increase clearance to 200 mm when required. Supplied unassembled, it reduces shipping volume and handling costs.

Suitable for

• 19" server cabinets from the DIGITUS Unique series
• Dynamic Basic series 19" cabinets
• Installations requiring additional floor clearance for cables or airflow
• Environments where compact shipping and on-site assembly are preferred

When it may not be suitable

This plinth is intended specifically for 483 mm (19") DIGITUS Unique and Dynamic Basic series cabinets; it may not fit cabinets from other manufacturers or non-compatible DIGITUS lines. Because it is supplied unassembled, it is not suitable when immediate, pre-assembled installation is required on delivery.

Key specifications

• Compatible rack width: 483 mm (19")
• External dimensions (W x D): 800 mm x 1200 mm
• Color: grey
• Ground clearance increase: 100 mm (single plinth)
• Stackable: up to two units for 200 mm clearance
• Cable feed-through with brush strip for cable management
• Supplied unassembled

How to use

Place the plinth under a compatible 19" cabinet, following the assembly instructions provided by the manufacturer. Once assembled, the plinth increases the cabinet's ground clearance and creates an internal cavity where excess cable lengths can be routed and stored. Use the brush strip feed-through to lead cables into the plinth while minimizing dust ingress. If additional clearance is needed, mount a second plinth on top of the first following the stacking guidance.

What to consider before purchase

• Verify cabinet compatibility with DIGITUS Unique or Dynamic Basic series 19" enclosures
• Ensure available floor space fits the plinth footprint of 800 x 1200 mm
• Plan for on-site assembly and necessary tools or personnel
• Decide if single or double stacking (100 mm vs 200 mm clearance) is required

Recommendations

Use the plinth to route power and network cabling away from the cabinet base, keep excess cable organized inside the plinth cavity, and protect cable runs with the integrated brush strip. For stable installations, position the cabinet centrally on the plinth and follow DIGITUS assembly instructions and safety guidelines.
