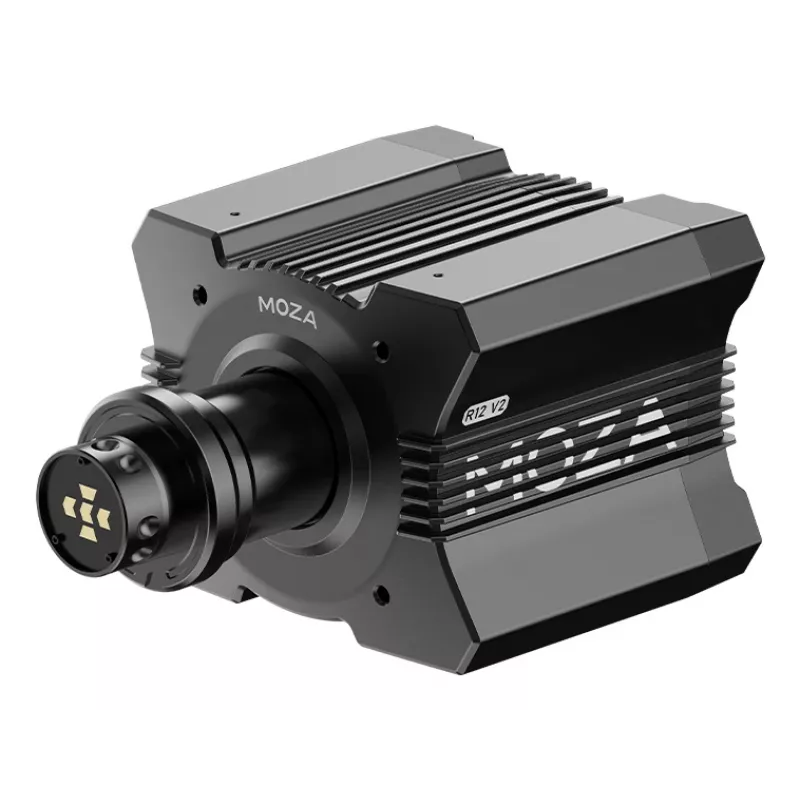

Base volante Moza Racing R12 V2 alluminio nero 216W

The MOZA R12 V2 is a 12Nm direct drive wheel base for professional sim racing. Featuring a high-torque servo motor, low-cogging skewed-pole design, and the NexGen 4.0 force feedback algorithm, it delivers smooth, precise, and immersive driving. Built from aerospace-grade aluminum alloy with active cooling and full software integration, the R12 V2 offers top-tier performance and reliability for competitive racers.

12Nm DD Power
The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

21-Bit Magnetic Encoder
With 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps.
Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response.
Reproduces exceptionally detailed force feedback.

High-Performance Slanted Pole Servo Motor
Race-grade Performance for Sim Racing

Innovative Segmented Rotor Design
Asymmetric segmented skew design Significantly reduces cogging torque & EM vibration Near-silent operation at all speeds

High Torque Density
Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output

18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response

Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off

Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses.
Superior thermal management for sustained performance.

Intelligent Temperature
Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

Aviation-grade Aluminum
Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.

Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

Cloud-based Mobile
App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.

Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.

Hand-off Protection
This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel. The NextGen3.0 also introduces Hand-off Protection Mode 2, providing protection without disrupting drifting. Additionally, it enhances force feedback response speed and overall driving sensations.

Moza Racing R12 V2. Product type: Racing wheel base, Product colour: Black, Material: Aluminium. Width: 156.7 mm, Depth: 225.9 mm, Height: 124 mm. Cables included: Power, USB. Input voltage: 110 - 220 V, Peak power: 216 W

How to use

Mount the MOZA R12 V2 to your rig using the standard 4-hole pattern or attach it with a compatible desktop clamp. Connect the included power and USB cables to your PC or console and install the MOZA software or app for firmware updates and force feedback tuning. Use the cloud-based mobile app to adjust force feedback, pedal settings, and save or import profiles. During operation, the NexGen 4.0 algorithm and the high-resolution encoder provide responsive and detailed steering feedback.

Recommendations

For stable long-term performance, ensure the base has adequate ventilation for active cooling, keep firmware up to date via the MOZA app, and use the hand-off protection feature when practicing aggressive maneuvers. For compact setups, verify that your clamp or rig supports the 4-hole mount pattern and secure all cables to avoid interference with steering movement.
