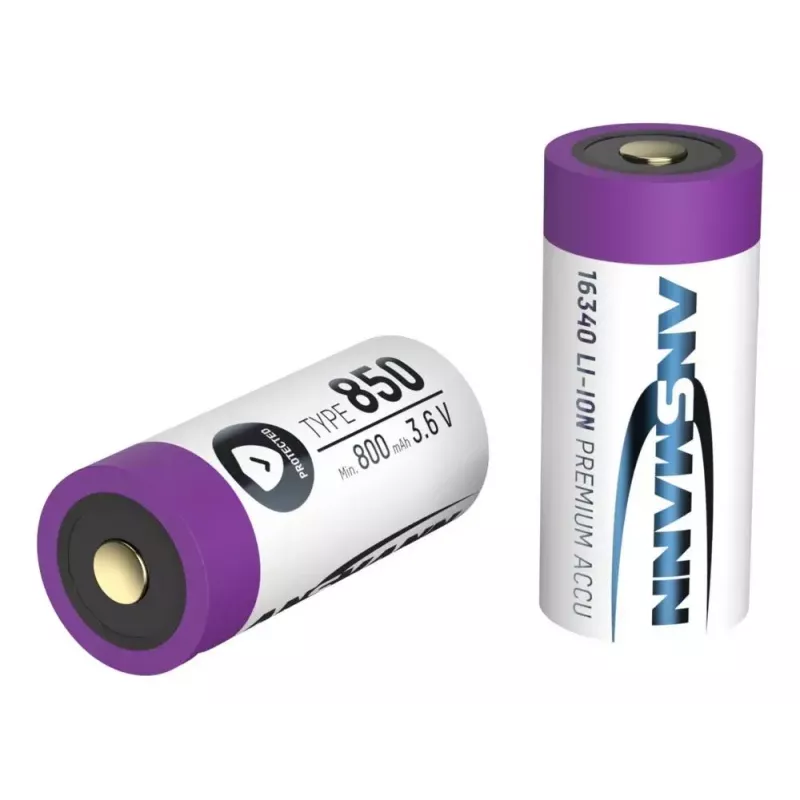

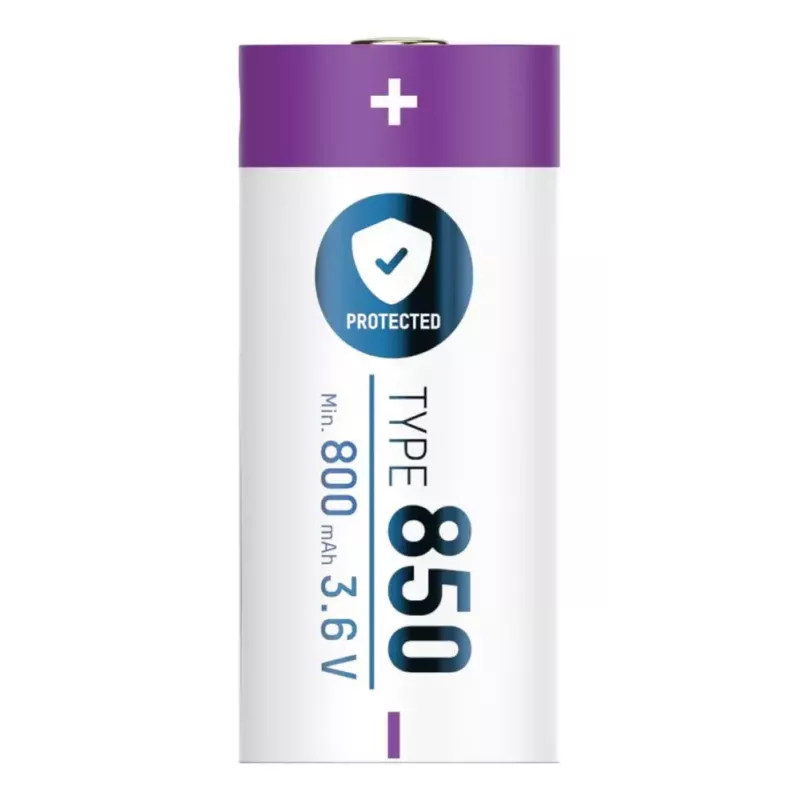

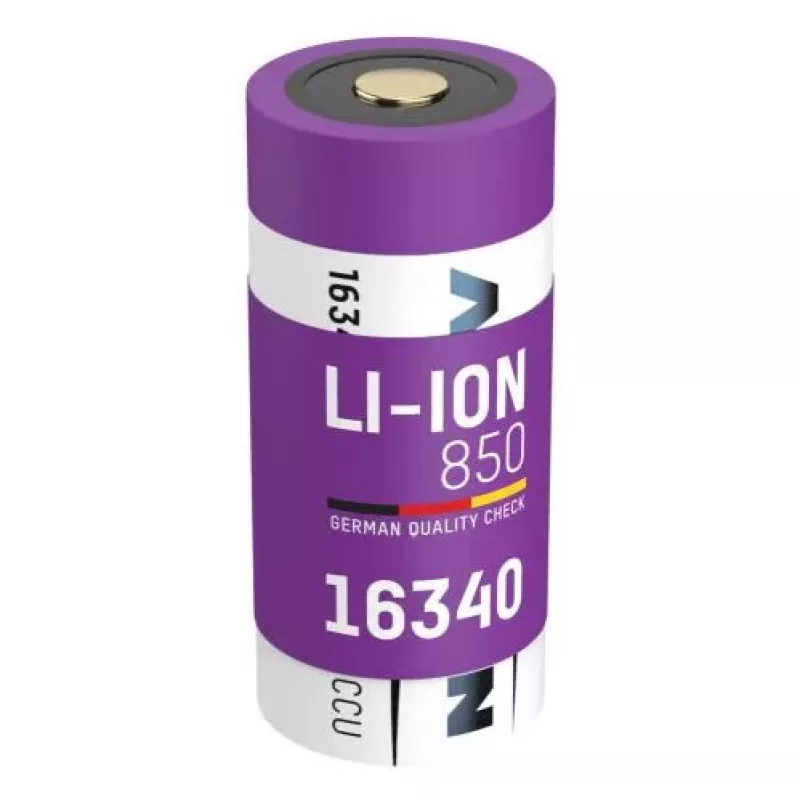

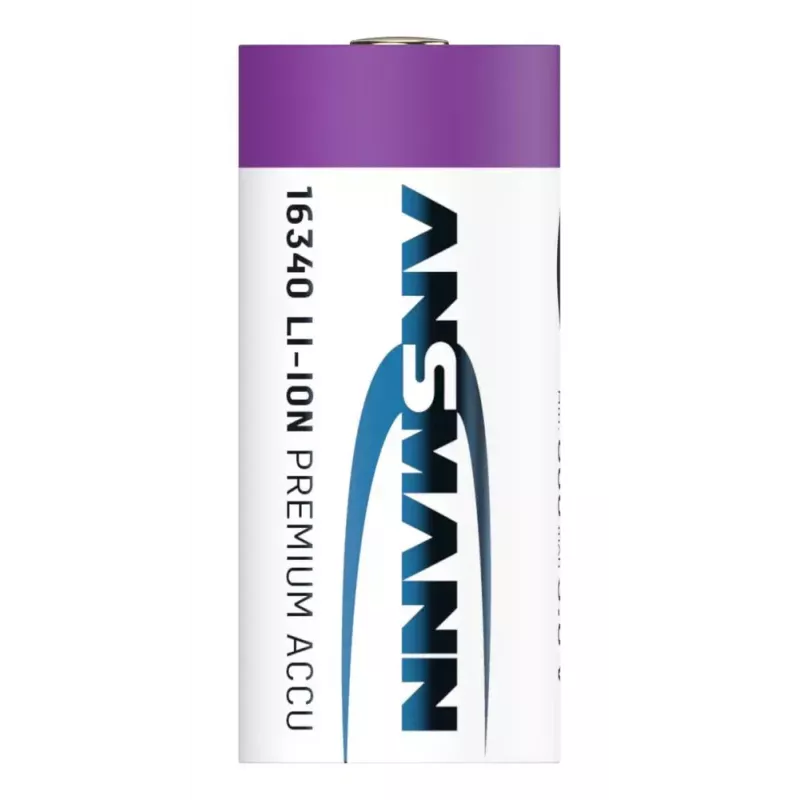

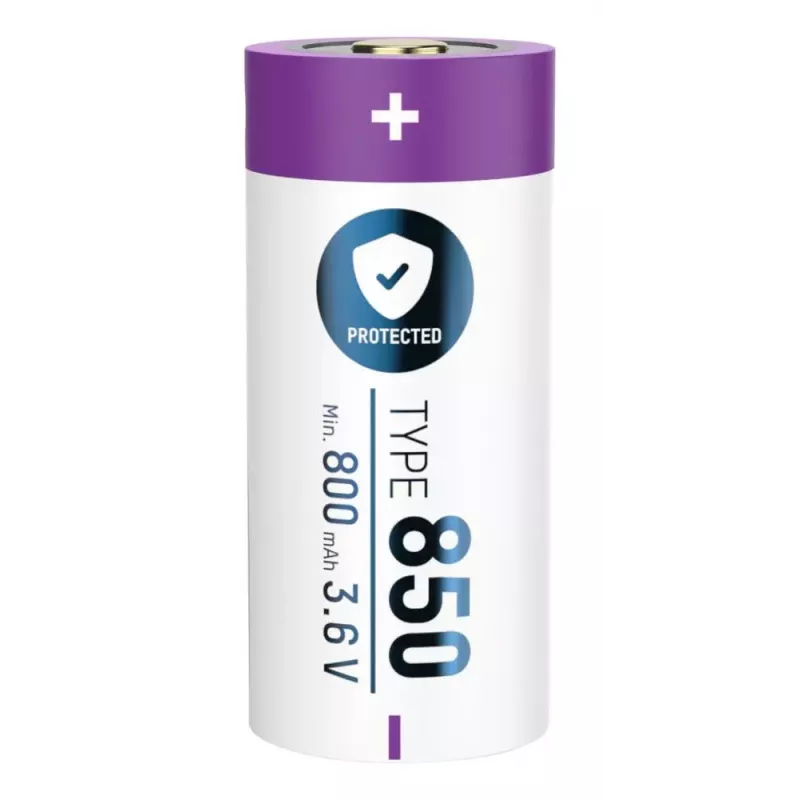

Batteria ricaricabile Ansmann 1300-0017 litio-ione 3,6V

The Ansmann 1300-0017 is a rechargeable Lithium‑Ion 3.6V battery in 16340 size with an integrated safety circuit. The built‑in protection board guards the cell against overload, short circuit and deep discharge, extending service life. Compared with conventional NiMH cells, this Li‑Ion battery delivers roughly double the energy density at the same size while remaining lightweight and offering low self‑discharge and high cycle stability. With a capacity of 850 mAh and an operating temperature range from -20°C to +60°C, it suits many modern low‑to‑medium power devices. Note: due to the protection board the battery is approximately 3–4 mm longer than unprotected 16340 / RCR123 cells.

Advantages

The integrated safety board protects against overload, short circuit and deep discharge for increased safety and longer lifetime. Lithium‑Ion chemistry provides higher energy density and a better power‑to‑weight ratio than NiMH or NiCd. The cell features low self‑discharge and is rated for up to 2000 recharge cycles under demanding conditions, offering reliable long‑term performance in a compact 16340 form factor.

Suitable for

• Alarm systems and surveillance cameras
• Remote controls, radio switches and radio sockets
• Garage door openers and doorbells
• Radio triggers and measuring devices
• Mini radios and other compact electronic devices

Key specifications

• Brand: ANSMANN
• Model / MPN: 1300-0017
• EAN: 4013674176922
• Battery type: Rechargeable battery
• Battery technology: Lithium‑Ion (Li‑Ion)
• Battery voltage: 3.6 V
• Capacity: 850 mAh
• Size: 16340 (RCR123 form factor)
• Number of cells: 1 pc(s)
• Operating temperature: -20°C to +60°C
• Protection: Integrated safety circuit (overload, short circuit, deep discharge)

How to use

Use the Ansmann 1300-0017 in devices that accept 16340 / RCR123 size rechargeable Li‑Ion cells. Charge the battery only with chargers suitable for protected 3.6V Li‑Ion 16340 cells and follow the charger manufacturer’s instructions. Insert the battery according to the device polarity markings. Avoid mechanical damage to the cell and do not mix with non‑rechargeable batteries in the same device.

Recommendations

Store the battery in a cool, dry place and avoid prolonged exposure to temperatures outside the -20°C to +60°C range. Do not use or charge a visibly damaged battery. For maximum lifetime, avoid deep discharges when possible and recharge before prolonged storage. Use a compatible Li‑Ion charger and respect manufacturer safety instructions.
