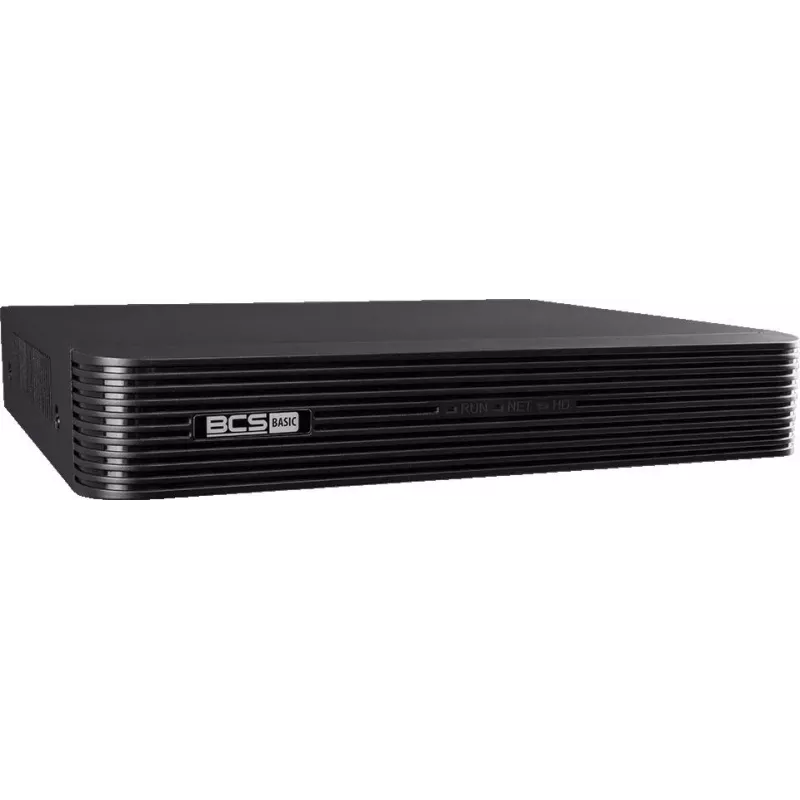

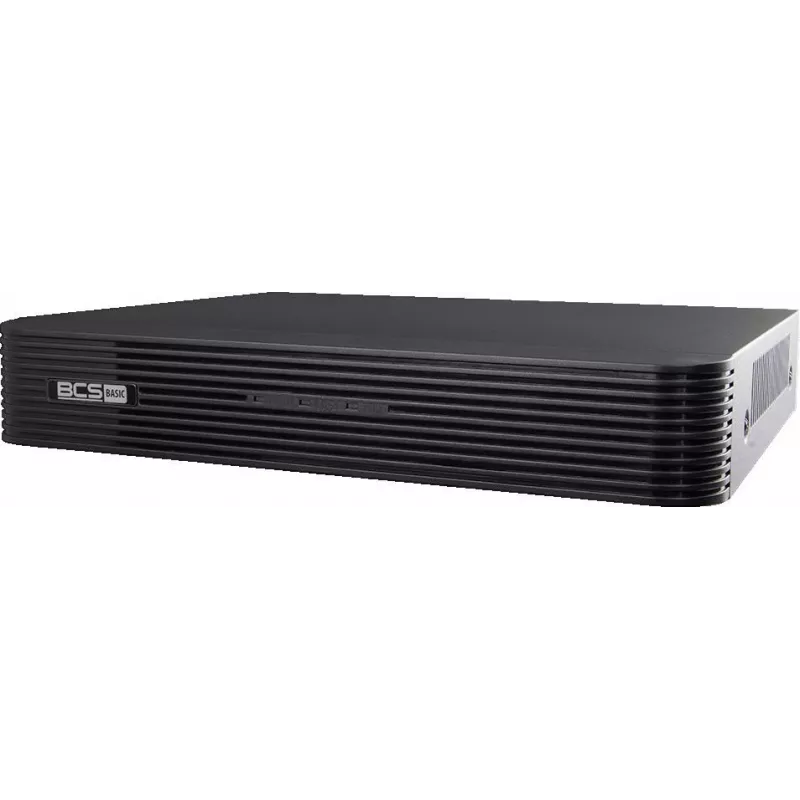

BCS BASIC BCS-B-NVR1001(2.0) videoregistratore di rete IP a 10 canali, 8MP, 1 HDD

The BCS BASIC BCS-B-NVR1001(2.0) is a 10-channel IP network video recorder designed for use with cameras up to 8MP resolution. It supports one HDD and offers pentaplex operation: live view, recording, playback, archiving and remote access.

Key features

• 10-channel IP recorder
• 1 HDD supported
• Max recording resolution 8MP
• Pentaplex function: live view / recording / playback / archiving / remote access
• Video compression: H.265+ / H.265 / H.264+ / H.264
• HDMI 4K and VGA video outputs
• ONVIF compliant, supports cameras from other manufacturers
• Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) support

Specifications

• Model: BCS-B-NVR1001(2.0)
• Product line: BCS BASIC
• System: IP
• Channels: 10
• Disks: 1
• Disk capacity: 6 TB
• Max recording resolution: 8 MP
• Input bandwidth: 64 Mbps
• Output bandwidth: 32 Mbps
• Display performance: 1×8M(30fps) / 1×5M(30fps) / 2×4M(30fps) / 4×3M(25fps) / 4×2M(30fps) / 8×720P(30fps) / 10×D1(30fps)
• Recording resolution: 8M / 6M / 5M / 4M / 3M / 2M / 960P / 720P / D1 / 2CIF / CIF / QCIF
• Video outputs: HDMI 4K / VGA
• HDMI display resolution: 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
• VGA display resolution: 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
• Split on outputs: 1/4/8/9/10
• Playback: 1/4/9/10
• Archiving: ability to copy footage to external media such as USB FLASH, USB HDD
• Users: 128
• Interfaces: 2×USB2.0
• Audio output: 1
• Network: RJ-45 10/100/1000Mbps
• Protocols: P2P, UPnP, DHCP
• Power supply: 12V DC
• Power consumption (without disks): max 3W
• Operating conditions: -10°C~+55°C max 90% RH
• Dimensions (W×D×H): 260×243×46mm
• Weight (without disks): 1 kg
