BCS-L-DIP48VSR4-Ai1 telecamera IP dome 8MP

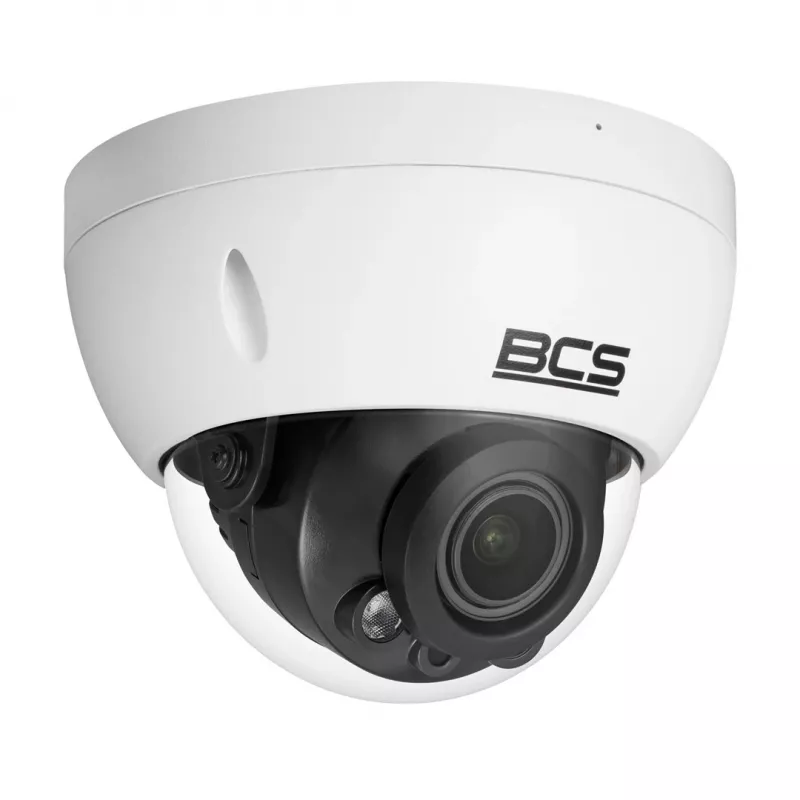

The BCS-L-DIP48VSR4-Ai1 is an 8 MP IP dome camera from the BCS LINE series. It features a 1/2.7'' CMOS sensor with Progressive Scan and a motorized zoom lens with a focal length of 2.7~13.5 mm.

Key features

• 8 MP resolution (3840×2160)
• 1/2.7'' CMOS sensor with Progressive Scan
• Motorized zoom lens: 2.7~13.5 mm, F1.5, auto/manual focus, auto iris
• Optical zoom 5×, digital zoom 16×
• Horizontal viewing angle: 113°~31°, vertical: 58°~18°, diagonal: 138°~36°
• DORI: Detect 85~280 m, Observe 34~112 m, Recognize 17~56 m, Identify 8.5~28 m
• Camera sensitivity: 0.008 Lux (Color, F1.5, 30 IRE), 0.0008 Lux (F1.5, B/W, 30 IRE), 0 Lux (IR)
• S/N ratio: 56 dB
• White balance: auto/manual
• WDR 120 dB
• Backlight compensation: BLC / HLC / WDR (120 dB)
• Shutter: auto/manual 1/3~1/100000 s
• Gain control (AGC): auto/manual
• Noise reduction: 3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• 2 streams
• Resolutions: 8M (3840×2160), 6M (3072×2048), 5M (3072×1728) (2592×1944), 4M (2880×1620) (2688×1520), 3M (2048×1536) (2304×1296), 2M (1920×1080), 1.3M (1280×960), 720P (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288/352×240)
• Main stream: 3840×2160 (1~25/30 fps)
• Second stream: 704×576 (1~25 fps), 704×480 (1~30 fps)
• Bitrate: H.264: 3 Kbps~8192 Kbps, H.265: 3 Kbps~8192 Kbps
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED, range 40 m
• Microphone: yes
• Audio input: 1, audio output: 1
• Audio compression: G.711A / G.711Mu / G.726 / PCM
• Alarm input: 1, alarm output: 1
• Memory card slot: microSD 256 GB
• Web service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion detection: 4
• Privacy masks: 4
• Network: RJ-45 10/100 Mbps
• Compliance: ONVIF (S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour
• Power supply: 12 VDC / PoE (802.3af)
• Power consumption: max 7.3 W
• Housing colour: white
• Ingress protection: IP67
• IK10: yes
• Operating conditions: -30°C~+60°C, max 95% RH
• Dimensions: Ø122×93.4 mm
• Weight: 0.5 kg
• AI - Built-in intelligent functions: built-in intelligent recognition and image analysis algorithms
• AI - Perimeter protection: area intrusion, line crossing
• AI - Object recognition: person/mechanical vehicle recognition for area intrusion, line crossing reduces false alarms
• AI - SMD: SMD Plus

Specifications

• Brand: BCS
• MPN: L-DIP48VSR4-Ai1
• Product line: BCS LINE
• Camera type: Dome
• Resolution: 8 MP
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 3840(H)×2160(V)
• RAM: 256 MB
• ROM: 128 MB
• Lens: motorized zoom
• Focal length: 2.7~13.5 mm
• Aperture: F1.5
• Focus: auto/manual
• Iris: auto
• Optical zoom: 5×
• Digital zoom: 16×
