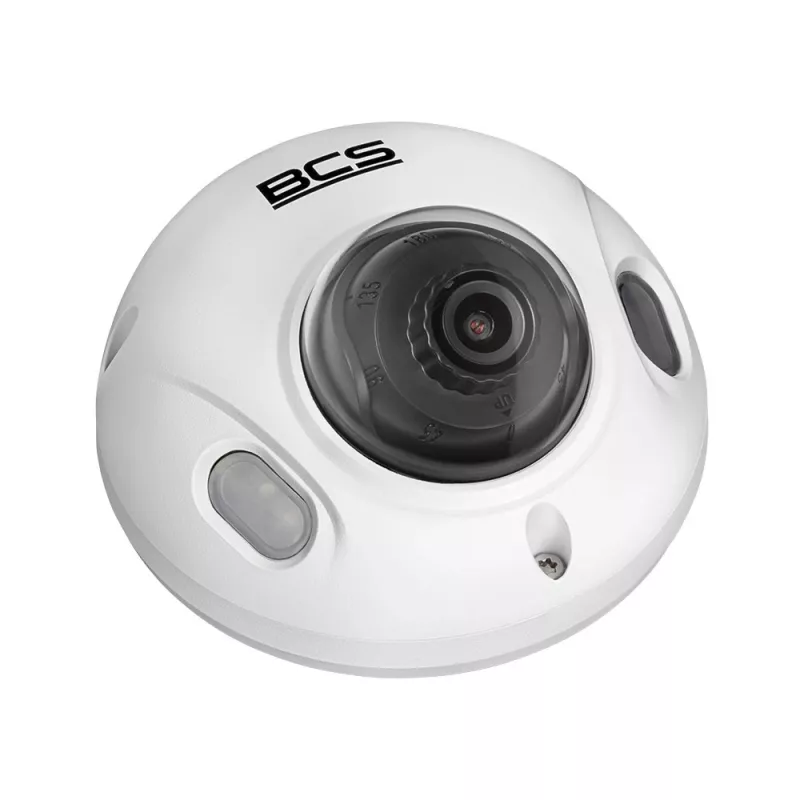

BCS-L-DMIP25FSR3-Ai1 telecamera IP dome 5MP

The BCS-L-DMIP25FSR3-Ai1 is a 5MP IP dome camera from the BCS LINE series. It features a 1/2.7" PS CMOS sensor, a fixed 2.8mm lens, and SkyLight technology. The camera offers WDR of 120dB, IR range up to 30m, and an IP67/IK10-rated housing. It includes built-in intelligent functions such as perimeter protection and object recognition.

Key features

• 5MP IP dome camera
• 1/2.7" PS CMOS sensor
• SkyLight technology
• Fixed 2.8mm lens
• WDR 120dB
• IR range up to 30m
• Alarm 1/1, audio 1/1, microphone
• IP67, IK10 housing
• Built-in intelligent functions

Specifications

• Product name: BCS-L-DMIP25FSR3-Ai1
• Product line: BCS LINE
• Camera type: Dome
• Resolution: 5MP
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2960(H)×1688(V)
• RAM: 512MB
• ROM: 128MB
• Lens: fixed
• Focal length: 2.8mm
• Aperture: F1.6
• Focus: fixed
• Iris: fixed
• Digital zoom: 16×
• Angle of view: H: 111°, V: 58°, D: 132°
• DORI: Detect 64m / Observe 25m / Recognize 13m / Identify 6m
• Camera sensitivity: 0.005Lux (Color, F1.6, 30IRE), 0.0005Lux (B/W, F1.6, 30IRE), 0Lux (IR)
• S/N ratio: 56dB
• White balance: Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR (120dB)
• Shutter: Auto / manual 1/3~1/100000s
• Gain control: Auto / manual
• Noise reduction: 3D DNR
• Defog: Electronic
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 3
• Resolutions: 5M (2960×1668) (2880×1620) / 4M (2688×1520) (2560×1440) / 3M (2048×1536) (2304×1296) / 2M (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240)
• Main stream: 2960×1668 (1~20fps), 2880×1620 (1~20fps), 2688×1520 (1~25fps)
• Second stream: 704×576 (1~25fps), 704×480 (1~30fps)
• Third stream: 1920×1080 (1~25/30fps)
• Bitrate: H.264: 3 Kbps~8192 Kbps, H.265: 3 Kbps~8192 Kbps
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED
• Illuminator range: 30m
• Microphone: Yes
• Audio input: 1
• Audio output: 1
• Audio compression: G.711A / G.711Mu / G.723 / G.726 / PCM
• Alarm input: 1
• Alarm output: 1
• Memory card slot: microSD 256GB
• Web service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion detection: 4
• Privacy masks: 4
• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF (S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
• Power supply: 12VDC / PoE (802.3af)
• Power consumption: max 7.2W
• Housing colour: White
• IP rating: IP67
• IK10: Yes
• Operating conditions: -40°C~+60°C max 95% RH
• Dimensions: Ø111×65mm
• Weight: 0.42 kg
• Ai - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• Ai - Perimeter protection: Area intrusion, line crossing
• Ai - Object recognition: Person/vehicle recognition for area intrusion, line crossing reduces false alarms
• Ai - SMD: SMD 4.0
