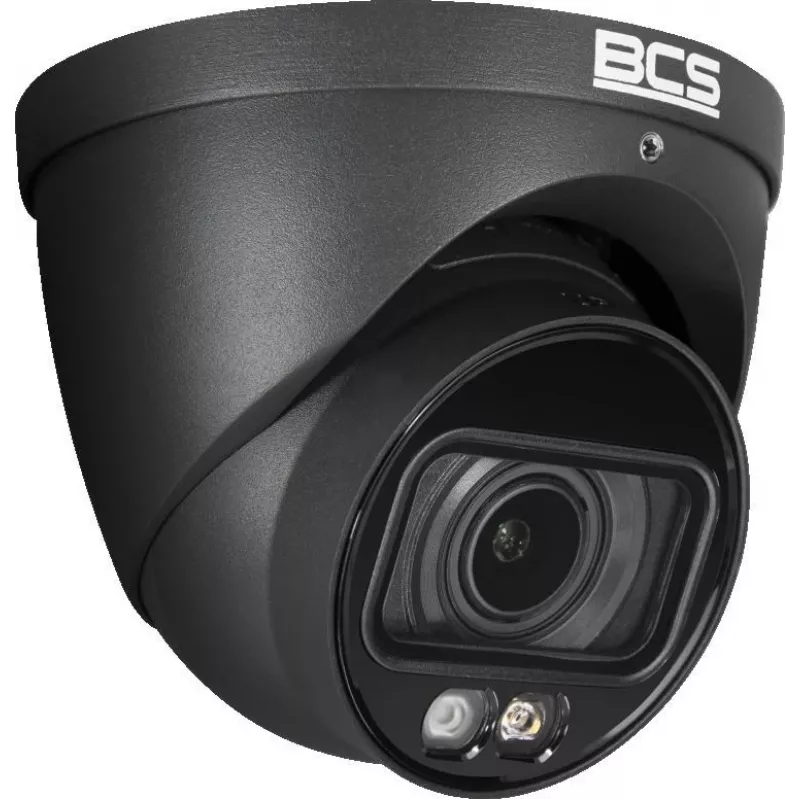

BCS-L-EIP58VCR5L4-Ai1-G telecamera IP dome 8MP

The BCS-L-EIP58VCR5L4-Ai1-G is an 8MP IP dome camera from the BCS LINE series. It features a 1/2.7'' CMOS sensor with Progressive Scan and a motorized zoom lens with 2.7~13.5 mm focal length.

Key features

• 8 Mpx resolution (3840×2160)
• 1/2.7'' CMOS sensor, Progressive Scan
• Motorized zoom lens 2.7~13.5 mm, F1.4, auto/manual focus, auto iris
• Optical zoom 5×, digital zoom 16×
• IR LED + WhiteLight illumination, IR range 50m, WhiteLight range 40m
• NightColor, microphone
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG, Ai Coding
• AI functions: perimeter protection, object recognition (person/vehicle), SMD 4.0, AcuPick
• IP67, operating temperature -30°C~+60°C

Specifications

• Model: BCS-L-EIP58VCR5L4-Ai1-G
• Product line: BCS LINE
• Camera type: Dome
• Resolution: 8 Mpx
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 3840(H)×2160(V)
• RAM: 1GB
• ROM: 256MB
• Lens: motorized zoom
• Focal length: 2.7~13.5 mm
• Aperture: F1.4
• Focus: Auto / manual
• Iris: Auto
• Optical zoom: 5×
• Digital zoom: 16×
• Angle of view: H: 114°~32° / V: 58°~17° / D: 138°~36°
• DORI: Detect 85~280m / Observe 34~112m / Recognize 17~56m / Identify 8.5~28m
• Camera sensitivity: 0.007Lux(Color,F1.4,30IRE) / 0.0007Lux(B/W,F1.4,30IRE) / 0Lux(IR)
• S/N ratio: 56dB
• White balance (AWB): Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB) / SSA / AFS
• Shutter: Auto / manual 1/3~1/100000s
• Gain control (AGC): Auto / manual
• Noise reduction: 3D DNR
• RoI: Region of Interest
• Image stabilization: Electronic (EIS)
• Defog: Electronic
• Image rotation: Mirror, Flip 0°/90°/180°/270° (corridor mode)
• Number of streams: 3
• Resolutions: 8M / 6M / 5M / 4M / 3M / 1080p / 720p / D1 / VGA / CIF
• Main stream: 3840×2160@(25/30 fps)
• Second stream: 1920×1080@(25/30 fps)
• Third stream: 1920×1080@(25/30 fps)
• Bitrate: H.264: 3–16384 kbps / H.265: 3–16384 kbps
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding
• Day/Night: ICR mechanical infrared filter
• Illuminator type: IR LED + WhiteLight
• IR range: 50m
• WhiteLight range: 40m
• NightColor: Yes
• Microphone: Yes
• Audio compression: G.711A / G.711Mu / G.723 / G.726 / PCM
• Storage: FTP, SFTP, NAS
• Memory card slot: microSD 256GB
• Support: Web, BCS Manager (Windows/Linux/MAC), Mobile App (iOS/Android)
• Motion detection: 4 zones
• Privacy masks: 8
• Network: RJ-45 10/100 Mbps
• Compliance: ONVIF(S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
• Security: video/firmware/configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filter, X.509 certificates, syslog, HTTPS, 802.1x
• Power supply: 12VDC / PoE(802.3af)
• Power consumption: max 9.8W
• Housing colour: Graphite
• IP rating: IP67
• Operating conditions: -30°C~+60°C, max 95% RH
• Dimensions: Ø122×108.3mm
• Weight: 0.69 kg
• AI – intelligent functions: built-in image recognition and analysis algorithms
• AI – perimeter protection: area intrusion, line crossing
• AI – object recognition: person / motor vehicle (false alarm reduction)
• AI – SMD: SMD 4.0
• AI – smart search: AcuPick – smart search for person/vehicle objects in recordings
