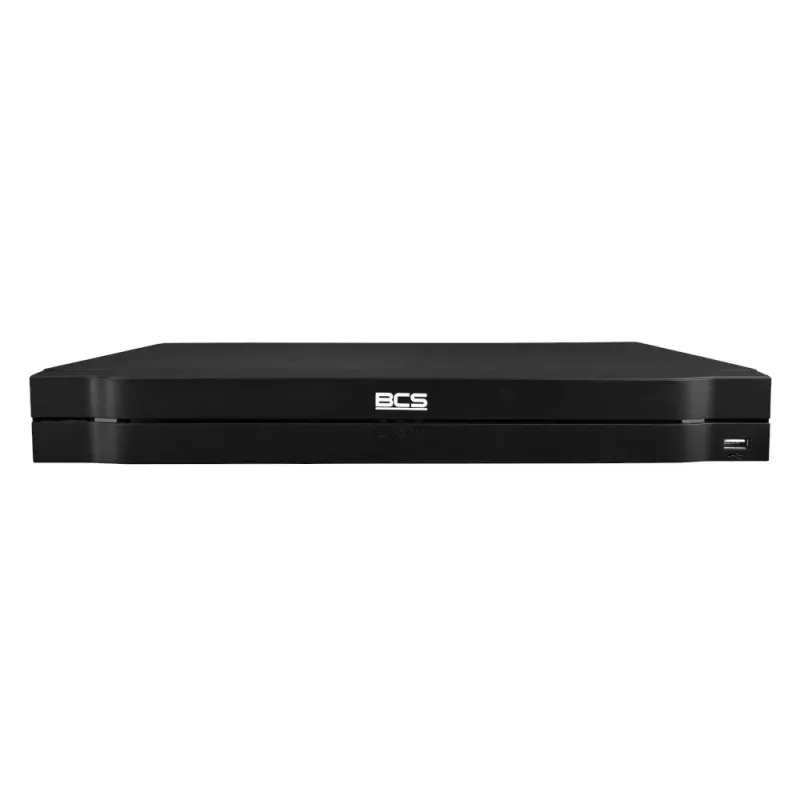

BCS-L-XVR1602-AI DVR Penta-brid 16 canali 5M-N/1080P con riconoscimento facciale e protezione perimetrale

The BCS-L-XVR1602-AI is a 16-channel penta-brid digital video recorder that supports HDCVI, AHD, HDTVI, CVBS, and IP cameras, delivering 5M-N resolution at 10 fps on analog channels and up to 6 MP on IP channels. With H.265+ compression, AI-powered SMD Plus, perimeter protection, and face detection, it offers intelligent surveillance and efficient storage for professional security installations.

Overview

Engineered for demanding multi-camera environments, this hybrid recorder combines 16 analog inputs with 8 additional IP channels, expandable to 24 IP channels when analog inputs are unused. It records at up to 5M-N (10 fps) or 1080P (15 fps) on analog channels, while IP cameras can reach 6 MP resolution. The embedded Linux OS ensures stable operation, and dual video outputs (HDMI and VGA) provide flexible monitoring options.

What stands out

• AI-powered analytics: SMD Plus for human/vehicle classification, perimeter protection on 4 channels, and face detection on 2 channels.
• Advanced H.265+ compression reduces bandwidth and storage requirements by up to 50% compared to H.264.
• Penta-brid flexibility: works with HDCVI, AHD, HDTVI, CVBS, and IP cameras, protecting your existing investment.
• Supports up to 10 TB SATA HDD for extensive local recording.
• ONVIF Profile S/T compliance ensures compatibility with third-party IP cameras.

Technical details

• Video Inputs: 16 analog (BNC) + 8 IP, max 24 IP channels when analog disabled
• Analog Recording: 5M-N @10fps, 4M-N/1080P @15fps, 1080N/720P/960H/D1/CIF @25fps
• IP Camera Resolution: up to 6 MP
• Compression: H.265+/H.265/H.264+/H.264
• AI Features: SMD Plus, Perimeter Protection (4ch), Face Detection (2ch), AI Coding
• Video Outputs: 1x HDMI, 1x VGA (max 1920x1080)
• Audio: 1x RCA input, 1x RCA output (coaxial audio supported on 16 channels)
• Network: 1x RJ-45 10/100 Mbps Ethernet
• Storage: 1x SATA port, up to 10 TB HDD
• USB: 2x USB 2.0
• Power: DC12V/2A
• OS: Embedded Linux
• Mobile Apps: BCS Manager, DMSS
• ONVIF: Profile S, T

Our verdict

For installers seeking a future-proof hybrid DVR with built-in AI analytics, the BCS-L-XVR1602-AI delivers exceptional value. Its penta-brid compatibility, efficient H.265+ compression, and intelligent detection features make it a reliable core for small to medium-sized surveillance systems.
