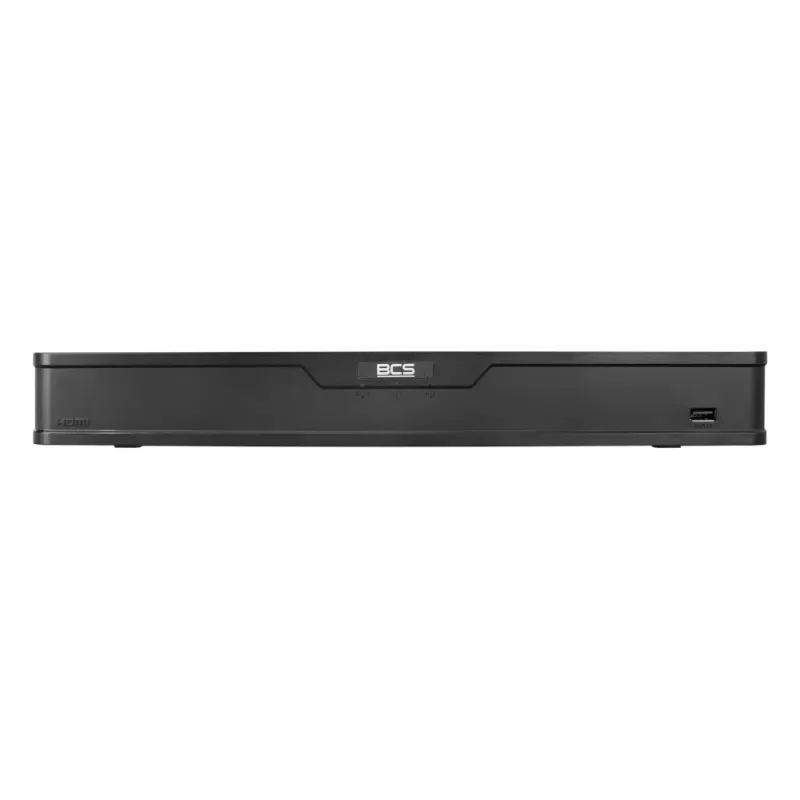

BCS NVR PoE 4K 16 Canali BCS-P-NVR1602-A-4KE-16P(3)

The BCS-P-NVR1602-A-4KE-16P(3) is a professional 16-channel network video recorder (NVR) with built-in PoE switch, designed for IP surveillance systems. It supports up to 8MP (4K) resolution per channel and features H.265+ compression for efficient storage. With 16 PoE ports (130W total budget), it simplifies installation by powering cameras directly. The NVR offers dual SATA III bays for up to 20TB storage, AI-based perimeter protection and SMD Plus on 4 channels, and comprehensive alarm/audio I/O.

Advantages

High-resolution recording up to 4K, integrated PoE for easy setup, AI analytics for smart detection, and robust storage capacity.

Suitable for

• Medium to large security installations requiring 16 IP cameras
• Retail, office, warehouse, and industrial surveillance
• Users needing AI features like intrusion detection and object filtering

Key specifications

• 16 IP camera channels, up to 8MP (4K) each
• 16x PoE ports (IEEE 802.3af/at), 130W total budget
• 2x SATA III HDD bays, up to 10TB each (20TB max)
• H.265+/H.265/H.264+/H.264 compression
• 1x HDMI (4K), 1x VGA (1080P) output
• 1x Gigabit Ethernet, 160 Mbps bandwidth
• AI: Perimeter Protection (4ch), SMD Plus (4ch)
• 4 alarm inputs, 2 alarm outputs, 1 audio in/out
• ONVIF Profile S/T/G compatible

Recommendations

For optimal performance, use with BCS PoE cameras and enterprise-grade HDDs. Ensure adequate ventilation and stable power supply.
