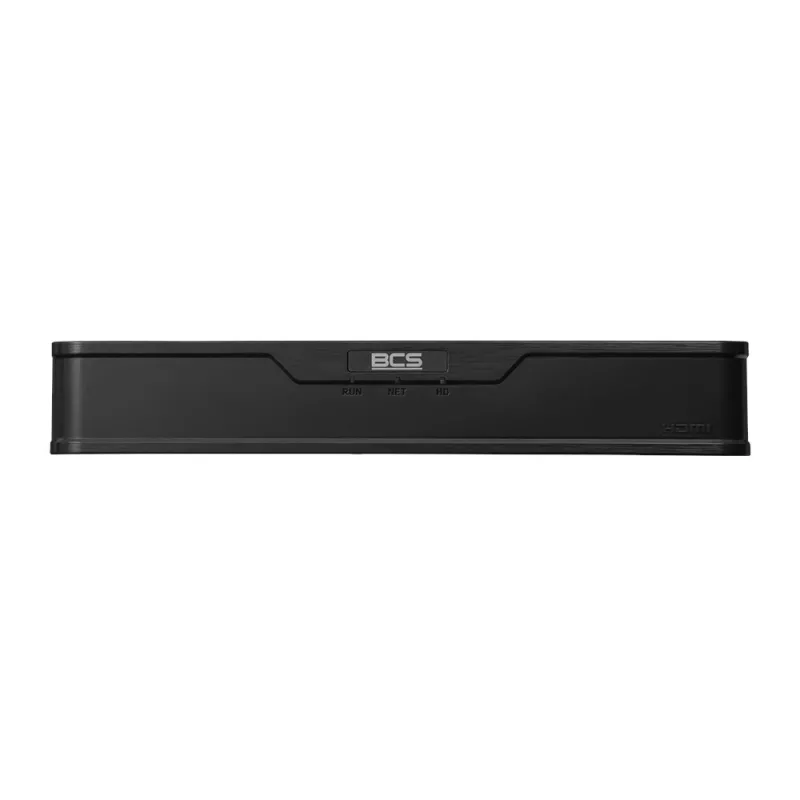

BCS POINT Registratore BCS-P-NVR0801-4K-8P NVR 4K 8 canali con 8 porte PoE

The BCS POINT Recorder BCS-P-NVR0801-4K-8P is a high-performance 8-channel network video recorder designed for professional surveillance systems. Supporting up to 8MP (4K UHD) resolution, it delivers crystal-clear video quality. Equipped with 8 PoE ports (IEEE 802.3af/at), it simplifies installation by powering cameras directly. Ideal for small to medium-sized businesses, retail stores, and offices.

Advantages

• 8-channel 4K recording with H.265+ compression saves bandwidth and storage.
• 8 built-in PoE ports eliminate the need for separate power supplies.
• Smart IVS analytics (intrusion, tripwire) enhance security.
• Remote access via DMSS app for real-time monitoring.

Suitable for

• Small to medium businesses
• Retail stores and shops
• Office environments
• Warehouses and storage facilities

Key specifications

• Video Input Channels: 8
• Max Recording Resolution: 8MP (4K UHD)
• PoE Ports: 8 (IEEE 802.3af/at)
• Max Incoming Bandwidth: 80 Mbps
• Video Compression: H.265+/H.265/H.264+/H.264
• Video Outputs: 1x HDMI (up to 4K), 1x VGA
• HDD Bays: 1x SATA (up to 10TB)
• Network Interface: 1x RJ45 Gigabit Ethernet
• USB Ports: 2x USB 2.0
• Audio: 1x RCA In / 1x RCA Out
• Alarm: 4x In / 1x Out
• Power Supply: DC 48V / 2.5A
• Power Consumption: <10W (without HDD)
• Operating Temperature: -10°C to +55°C
• Smart Features: Motion Detection, IVS (Intrusion, Tripwire)
• Mobile Access: DMSS App
• Simultaneous Playback: 8 channels

Recommendations

For optimal performance, pair with BCS POINT cameras and a compatible SATA HDD (up to 10TB). Ensure network stability for remote access.
