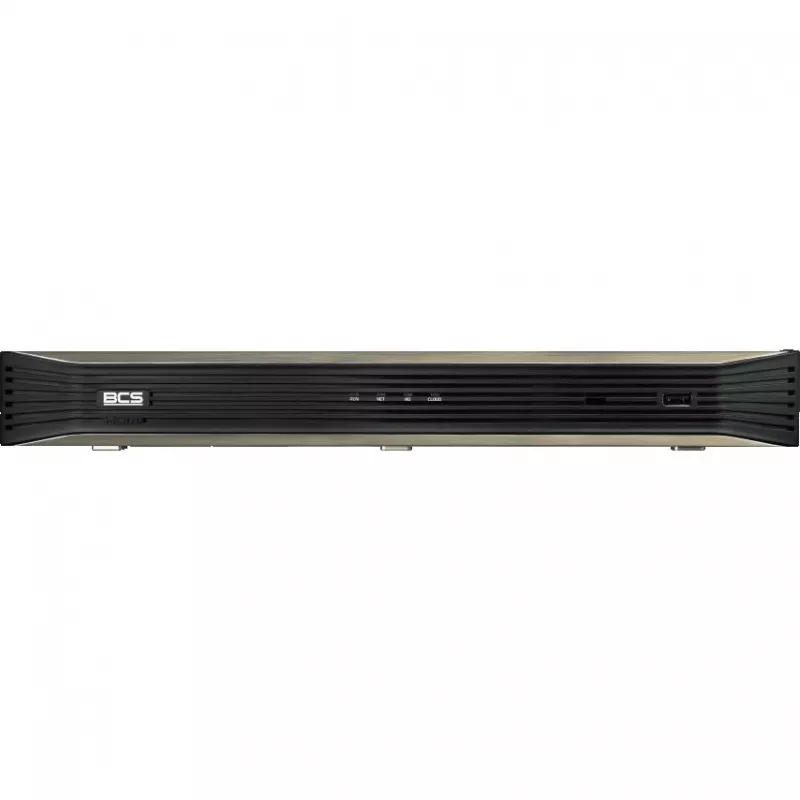

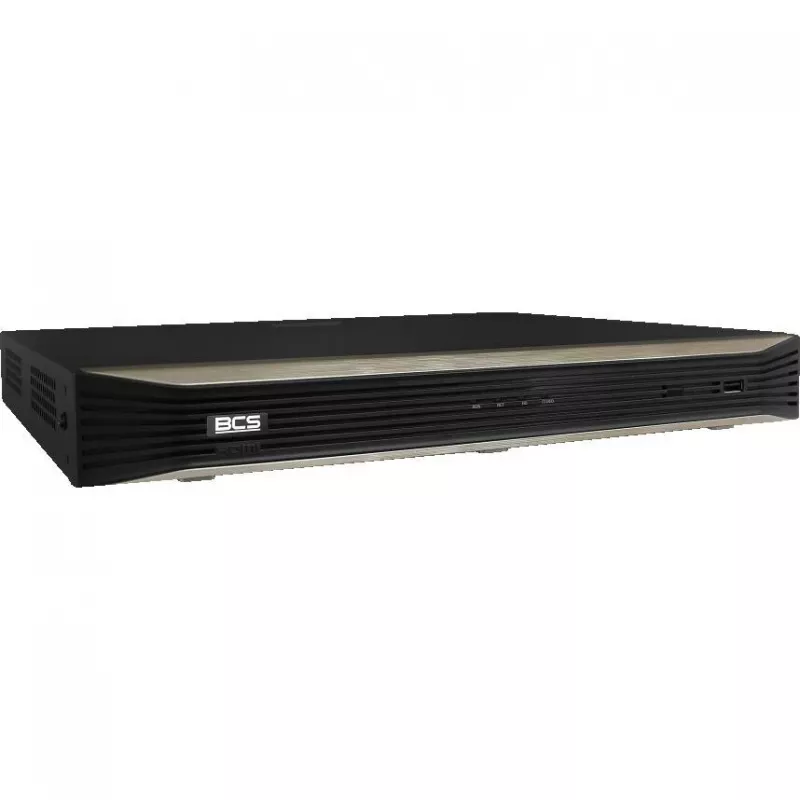

BCS POINT registratore NVR 4K 32 canali BCS-P-NVR3202-A-4K(5)

The BCS POINT BCS-P-NVR3202-A-4K(5) is a high-performance 32-channel network video recorder (NVR) designed for professional surveillance systems. Supporting up to 8MP (4K UHD) resolution, it delivers crystal-clear video quality. With dual SATA bays supporting up to 10TB each, it offers ample storage for extended recording. The NVR features H.265+ compression for efficient bandwidth and storage usage, and supports P2P cloud access via the BCS Point mobile app for remote monitoring.

Advantages

This NVR provides reliable 24/7 recording with smart features like motion detection and privacy masking. Its embedded Linux OS ensures stability and security. The 160 Mbps incoming/outgoing bandwidth handles high-resolution streams smoothly. Dual video outputs (HDMI up to 4K, VGA up to 1080p) allow flexible display options.

Suitable for

• Medium to large retail stores
• Office buildings and warehouses
• Educational campuses
• Residential complexes
• Any location requiring 32-channel surveillance with 4K support

Key specifications

• 32 IP camera channels
• Max recording resolution: 8MP (4K UHD)
• Video compression: H.265+, H.265, H.264+, H.264
• 2 SATA HDD bays, up to 10TB each
• Incoming/outgoing bandwidth: 160 Mbps

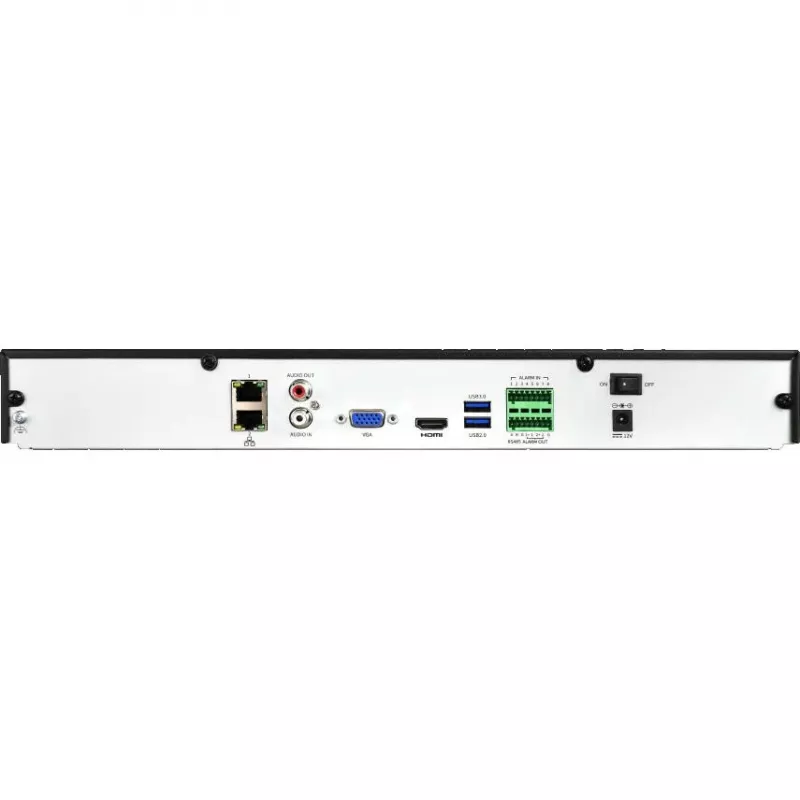

• Video outputs: 1x HDMI (4K), 1x VGA (1080p)
• Audio: 1x RCA in, 1x RCA out
• Network: 1x Gigabit Ethernet
• USB: 1x USB 3.0 (front), 2x USB 2.0 (rear)
• Alarm: 4 inputs, 1 output
• Power: DC 12V/4A, consumption <10W (without HDD)
• Mobile app: BCS Point
• Smart functions: Motion detection, privacy masking, video loss, ANR

Recommendations

For optimal performance, use compatible BCS POINT cameras and enterprise-grade SATA HDDs. Ensure proper ventilation and stable power supply. The NVR supports up to 10TB per bay; for 24/7 recording, consider using surveillance-rated drives.
