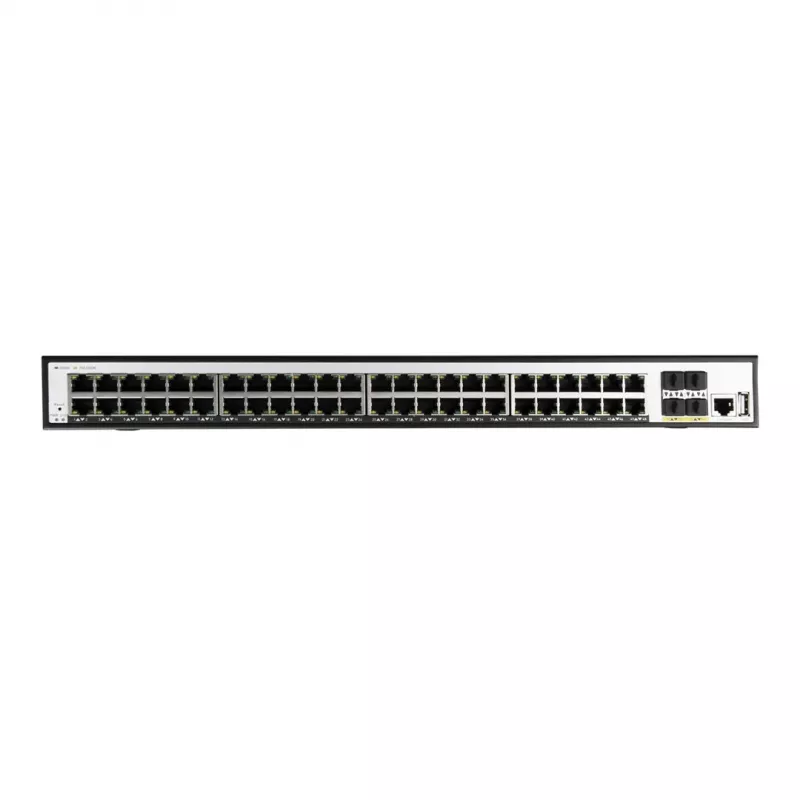

BCS SP48G-4SFP-M Switch Managed Gigabit L2+ 48 Porte con 4 Uplink SFP

The BCS SP48G-4SFP-M is a high-performance Layer 2+ managed switch designed for enterprise and SMB networks. It features 48 Gigabit Ethernet ports and 4 SFP uplink slots, delivering robust switching capacity and advanced management capabilities. Ideal for network aggregation or access layer deployments, this switch offers comprehensive security, QoS, and VLAN features to optimize network performance and reliability.

Advantages

With a switching capacity of 104 Gbps and a forwarding rate of 77.38 Mpps, the SP48G-4SFP-M ensures seamless data flow even under heavy traffic. Its L2+ management provides advanced features like VLAN, QoS, and link aggregation, while the 4 SFP uplinks offer flexible fiber connectivity. The switch supports jumbo frames up to 9.6 KB, enhancing throughput for large data transfers. Energy-efficient design with a maximum power consumption of only 35 W reduces operational costs.

Suitable for

• Enterprise network access and aggregation layers
• SMB networks requiring high port density and management
• Surveillance systems with multiple IP cameras
• VoIP deployments needing QoS prioritization

Key specifications

• 48x 10/100/1000Base-T Gigabit RJ45 ports
• 4x 1000Base-X SFP uplink slots
• Switching capacity: 104 Gbps
• Forwarding rate: 77.38 Mpps
• MAC address table: 16K entries
• Jumbo frame support: up to 9.6 KB
• VLAN support: 802.1Q, port-based, protocol-based, private VLAN
• QoS: 8 priority queues, SP/WRR/SP+WRR, DSCP, CoS
• Spanning Tree: STP, RSTP, MSTP
• Link Aggregation: LACP, static trunk
• Security: ACL, port security, DHCP snooping, 802.1X, RADIUS, TACACS+
• Multicast: IGMP snooping v1/v2/v3, MLD snooping v1/v2
• Management: Web GUI, CLI (Telnet, SSH), SNMP v1/v2c/v3, RMON
• Power: Internal AC 100-240V, 50/60Hz, max 35W
• Mounting: 1U rack-mountable
• Operating temperature: 0°C to 50°C

Recommendations

For optimal performance, use high-quality SFP modules and ensure proper ventilation in the rack. The switch supports both copper and fiber uplinks, making it versatile for various network topologies. Regular firmware updates are recommended to maintain security and feature enhancements.
