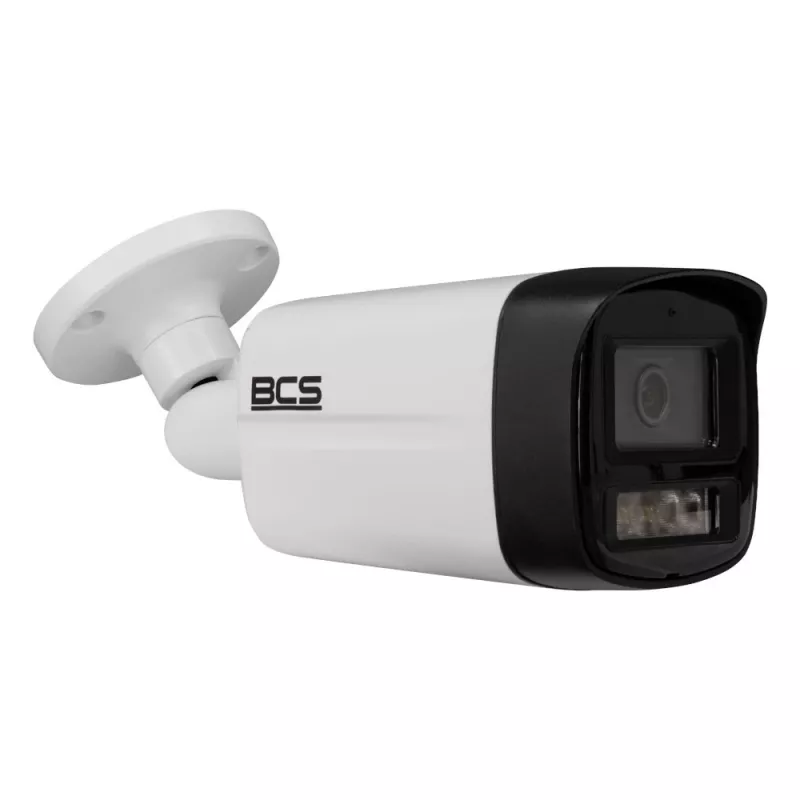

BCS Telecamera bullet Analog HD 5MP BCS-TA15FR4L4, obiettivo 3,6mm, IR 40m, IP67

The BCS BCS-TA15FR4L4 is a high-performance 5MP analog HD bullet camera designed for reliable outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 5-megapixel resolution (2592x1944) at 20fps. With 4-in-1 video output (HDCVI/HDTVI/AHD/CVBS), it offers flexible integration with existing systems. The fixed 3.6mm lens provides a wide field of view, while smart IR technology ensures clear night vision up to 40 meters. Built with a durable metal housing and IP67 rating, this camera withstands harsh weather conditions. Ideal for perimeter monitoring, parking lots, and commercial properties.

Advantages

High 5MP resolution for detailed imaging; versatile 4-in-1 video output; long-range IR up to 40m with smart IR to prevent overexposure; robust IP67 metal housing for outdoor use; low power consumption (max 4.1W) for energy efficiency.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Warehouse and industrial sites
• Retail and commercial premises

Key specifications

• Sensor: 1/2.7" CMOS
• Max Resolution: 5MP (2592x1944)
• Video Output: HDCVI / HDTVI / AHD / CVBS
• Lens: Fixed 3.6mm
• IR Range: Up to 40m (Smart IR)
• Min Illumination: 0.005 Lux (Color), 0 Lux (B/W IR on)
• Day/Night: Auto (ICR) / Color / B/W
• WDR: DWDR
• Noise Reduction: 2D DNR
• Backlight Compensation: BLC / HLC
• Gain Control: AGC
• Power: 12V DC, max 4.1W
• Ingress Protection: IP67
• Housing Material: Metal
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a compatible 12V DC power supply and ensure proper cable connections. This camera supports up to 20fps at 5MP; for higher frame rates, consider reducing resolution. Pair with a BCS DVR or compatible recorder for full feature support.
