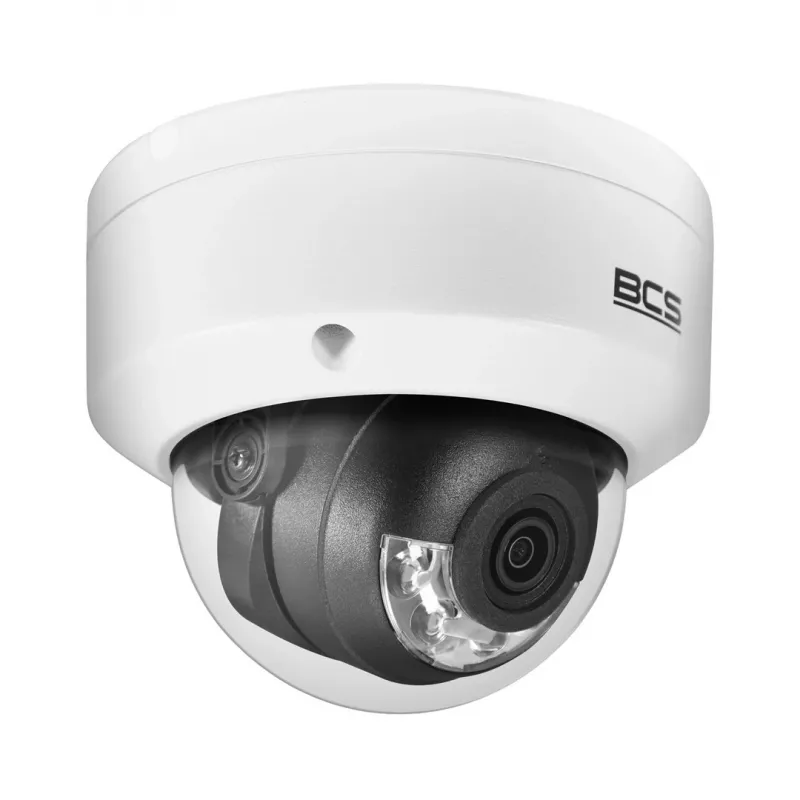

BCS Telecamera IP dome IR 4MP BCS-V-DIP24FSR3L3-Ai1(2) 2.8mm

The BCS-V-DIP24FSR3L3-Ai1(2) is a high-performance 4MP IR dome IP camera designed for professional indoor and outdoor surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 2560x1440 resolution at 25fps. Equipped with a 2.8mm fixed lens providing a 102° horizontal field of view, this camera is ideal for monitoring wide areas such as corridors, entrances, and retail spaces. With Smart IR technology, it offers clear night vision up to 30 meters. The camera supports multiple video compression formats including H.265+/H.265/H.264+/H.264/MJPEG, ensuring efficient bandwidth and storage usage. Its robust metal housing with IP67 weatherproof and IK10 vandal-resistant ratings guarantees reliable operation in harsh environments. Powered by DC 12V or PoE (802.3af), it integrates easily into existing networks. Advanced AI functions include Perimeter Protection, Smart Motion Detection (SMD), and Face Detection, enhancing security intelligence. A built-in microphone enables audio monitoring, and the MicroSD card slot (up to 256GB) provides local storage. With 120dB True WDR, it handles challenging lighting conditions effectively.

Advantages

High 4MP resolution with 120dB True WDR for clear images in varying light. Smart IR up to 30m for reliable night vision. AI-powered analytics reduce false alarms. Durable IP67/IK10 design ensures long life. Flexible power options (DC12V/PoE).

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics facilities
• Residential complexes and parking areas
• Schools and public institutions

Key specifications

• Sensor: 1/2.7" 4MP Progressive Scan CMOS
• Resolution: 2560x1440 (4MP)
• Lens: 2.8mm fixed, FOV 102°
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Power: DC 12V, PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in microphone
• Local Storage: MicroSD up to 256GB
• AI Functions: Perimeter Protection, SMD, Face Detection
• WDR: 120dB True WDR
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera at a height of 2.5-3m for best coverage.
