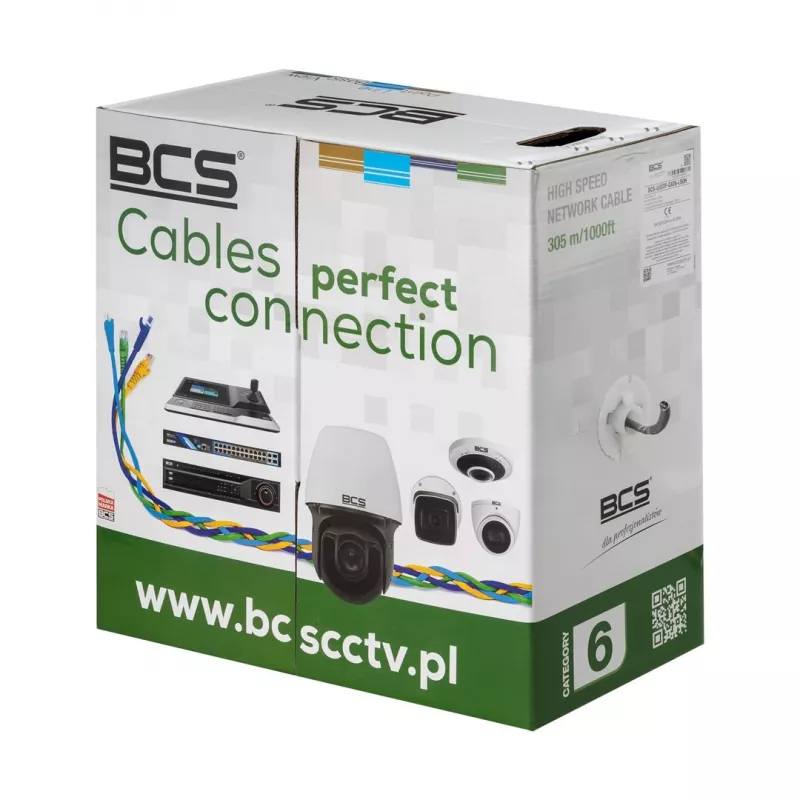

BCS U/UTP CAT6 LSOH cavo patch

The BCS U/UTP CAT6 LSOH patch cable is a high-performance, unshielded twisted pair cable designed for reliable Gigabit Ethernet and 10 Gigabit Ethernet networks. With a Low Smoke Zero Halogen (LSOH) jacket, it ensures safety in indoor environments by reducing toxic and corrosive emissions during a fire. The cable features 23 AWG pure copper conductors and a cross separator to minimize crosstalk, delivering stable data transmission up to 250 MHz.

Advantages

This cable offers excellent signal integrity and supports Power over Ethernet (PoE), making it ideal for powering devices like IP cameras and wireless access points. The LSOH jacket provides enhanced fire safety, complying with IEC 60332-1-2, IEC 61034-2, and IEC 60754-2 standards. Its durable construction ensures long-lasting performance in structured cabling systems.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Office networks and enterprise LANs
• Indoor installations where fire safety is a priority
• PoE applications such as IP cameras, VoIP phones, and access points

Key specifications

• Cable Type: U/UTP (Unshielded Twisted Pair)
• Category: Cat6
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Conductor Material: Pure Copper (Cu)
• Conductor Gauge: 23 AWG
• Number of Pairs: 4
• Number of Conductors: 8
• Max Bandwidth: 250 MHz
• Max Data Rate: 1 Gbps up to 100m, 10 Gbps up to 55m
• Standard Compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Flame Retardancy: IEC 60332-1-2
• Smoke Density: IEC 61034-2
• Halogen Content: IEC 60754-2
• Insulation Material: HDPE
• Cross Separator: Yes (Spline)
• Outer Diameter: Approx. 6.2 mm
• Application Environment: Indoor
• PoE Support: Yes
• Operating Temperature: -20°C to +60°C
• Impedance: 100 ± 15 Ω (1-250 MHz)

Recommendations

For optimal performance, use with Cat6 compatible connectors and ensure proper installation practices. This cable is ideal for new installations or upgrades to support higher bandwidth applications.
