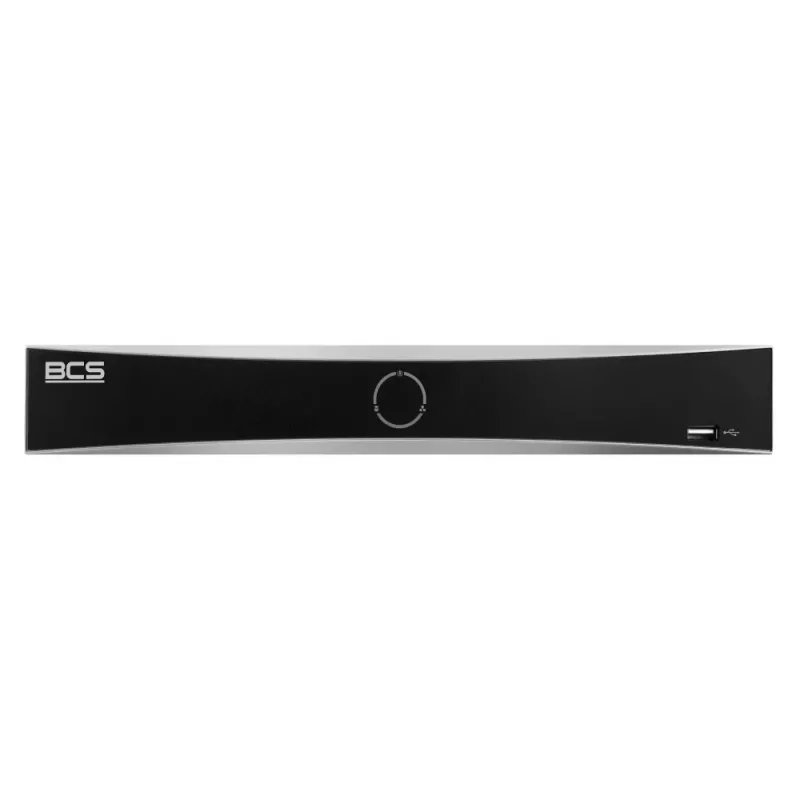

BCS Videoregistratore di rete 4 canali 4K BCS-V-NVR0401-A-4KE(3)

Managing multiple IP cameras without a central recording unit can lead to scattered footage, storage headaches, and security gaps. The BCS 4-Channel 4K Network Video Recorder solves this by consolidating up to four IP cameras into one reliable, high-resolution surveillance hub. With support for 8MP (4K) recording per channel, this NVR ensures every detail is captured with exceptional clarity, making it ideal for small to medium-sized installations where image quality is non-negotiable.

Who is it for

This NVR is perfect for homeowners, retail shops, offices, and small warehouses that need a straightforward yet powerful video surveillance solution. It suits users who already have or plan to install up to four ONVIF-compliant IP cameras and want a dedicated recorder with local storage, remote access, and 4K output to a monitor or TV.

Main features

• Supports up to 4 IP cameras with a maximum resolution of 8MP (4K) per channel, delivering ultra-sharp video.
• Advanced H.265+ compression reduces bandwidth and storage requirements by up to 50% compared to H.264, without sacrificing quality.
• Simultaneous HDMI (up to 4K) and VGA (up to 1080p) outputs allow flexible connection to modern or legacy displays.
• One SATA bay accommodates a hard drive up to 8TB, providing ample local storage for continuous recording.
• ONVIF 2.4 compliance ensures compatibility with a wide range of IP cameras from different manufacturers.
• Remote viewing and management via iOS and Android apps, plus web browser access, keeps you connected from anywhere.
• Compact and energy-efficient design with a power consumption of less than 10W (excluding HDD).

Specifications

• Video Input Channels: 4
• Max Recording Resolution: 8MP (4K) per channel
• Video Compression: H.265+, H.265, H.264+, H.264
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 20 Mbps
• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio Inputs: 1x RCA
• Audio Outputs: 1x RCA
• HDD Bays: 1x SATA, up to 8TB capacity
• Network Interface: 1x RJ-45 10/100 Mbps Ethernet
• USB Ports: 2x USB 2.0
• Power Supply: DC 12V / 1.5A
• Power Consumption: < 10W (without HDD)
• Operating Temperature: -10°C to +55°C
• ONVIF Support: Yes (ONVIF 2.4)
• Mobile Access: iOS, Android

Tips

Pair this NVR with a surveillance-grade hard drive (such as WD Purple or Seagate SkyHawk) for 24/7 reliability. To maximize storage efficiency, enable H.265+ on compatible cameras. For remote access, ensure the NVR is connected to a router with internet access and use the manufacturer's app for easy setup. Position the NVR in a well-ventilated area to maintain optimal operating temperature.
