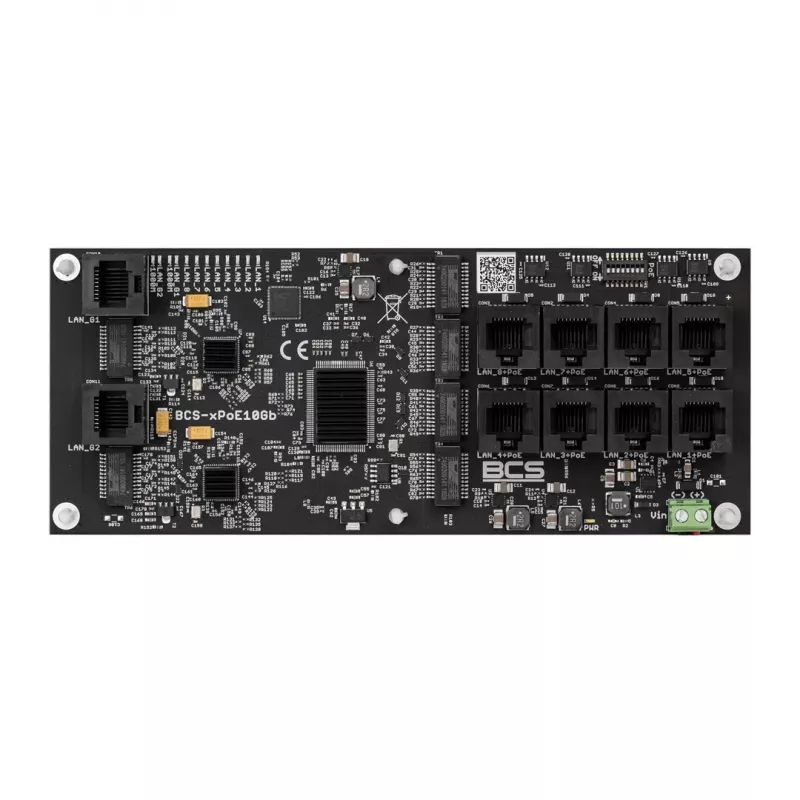

BCS-xPoE10Gb Extender PoE 10Gb

The BCS-xPoE10Gb is a high-performance 10 Gigabit PoE extender designed to extend both data and power over long distances. It supports IEEE 802.3af/at/bt standards, delivering up to 90W input and 71W output, making it ideal for powering high-demand devices such as PTZ cameras, wireless access points, and digital signage.

Advantages

With support for 10GBASE-T and backward compatibility with 1/2.5/5GbE, this extender ensures future-proof network speeds. Its rugged metal housing and wide operating temperature range (-40°C to +75°C) guarantee reliable performance in harsh environments. Plug-and-play installation simplifies deployment without external power adapters.

Suitable for

• Extending PoE++ connections up to 100 meters
• Industrial and outdoor networking applications
• Powering high-wattage devices like PTZ cameras and Wi-Fi 6 access points

Key specifications

• 2x RJ45 ports: 1x PoE In, 1x PoE Out
• Data rate: 10/100/1000/2.5G/5G/10GBASE-T
• PoE standard: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Max PoE input: 90W, output: 71W
• Jumbo frame support up to 10KB
• Wall-mountable or desktop installation

Recommendations

For optimal performance, use Cat6a or higher cabling. Ensure the upstream PoE switch provides sufficient power budget for the connected device.
