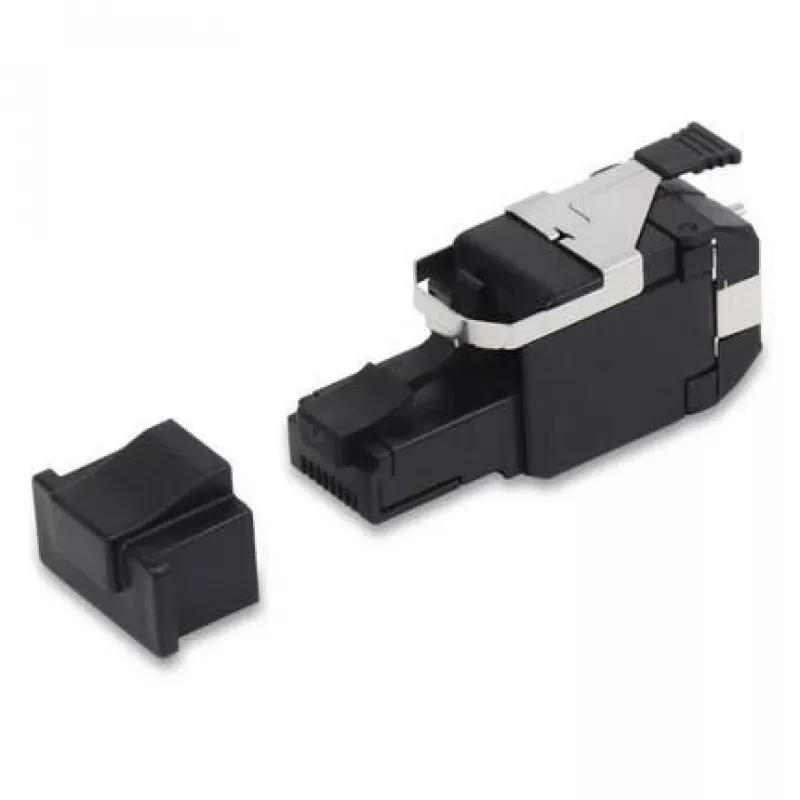

Belden RVAFPUBK-B24 REVConnect 10GX connettore maschio RJ45 terminabile sul campo, categoria 6A, nero

For network professionals who need to build custom-length Category 6A patch cords on site, the Belden RVAFPUBK-B24 REVConnect 10GX UTP plug offers a tool-less termination path that eliminates the guesswork of traditional field-terminated RJ45 connectors. The REVConnect core aligns all eight conductors in a single motion, ensuring consistent performance and reducing rework on every job.

Highlights

• Category 6A performance in an unshielded, field-terminable RJ45 plug
• REVConnect core supports solid or stranded conductors, 22–26 AWG
• Tool-less termination or optional REVConnect termination tool for speed
• 50 microinch gold over nickel contacts for reliable, long-life connections
• Supports IEEE 802.3bt PoE up to 100W (Type 1–4)
• UL 94V-0 flame-retardant housing, black finish

In daily use

Terminating a Category 6A plug in the field often means fighting with load bars, foil wraps, and inconsistent pair geometry. With REVConnect, you strip the cable, insert the conductors into the core, and press—the core handles pair separation and seating. The result is a plug that meets Category 6A channel requirements without a shielded shell, ideal for high-density patch panels, access points, and PoE-powered devices where bend radius and cable management matter. The black housing blends into dark cable runs and equipment racks, while the 750-cycle mating durability ensures repeated re-terminations or moves won't degrade the connection.

Full specifications

• Connector type: RJ45 field terminable plug, 8P8C
• Performance: Category 6A (10GX), TIA-568.2-D, ISO/IEC 11801 Class EA
• Shielding: UTP (unshielded twisted pair)
• Termination: REVConnect core, tool-less or with REVConnect tool
• Conductor compatibility: solid and stranded, 22–26 AWG
• Cable diameter range: 5.0–8.5 mm (0.197–0.335 in)
• Contact plating: 50 microinches gold over nickel
• Housing material: high-impact, flame-retardant plastic, UL 94V-0
• Operating temperature: -10°C to +60°C (14°F to 140°F)
• Mating cycles: 750 minimum
• PoE support: IEEE 802.3bt Type 1–4, up to 100W
• Impedance: 100 Ohm
• Compliance: RoHS

Final note

When every link must pass a Category 6A certification, the RVAFPUBK-B24 gives you a repeatable, tool-light method for building custom patch cords that perform as well as factory-made assemblies.
