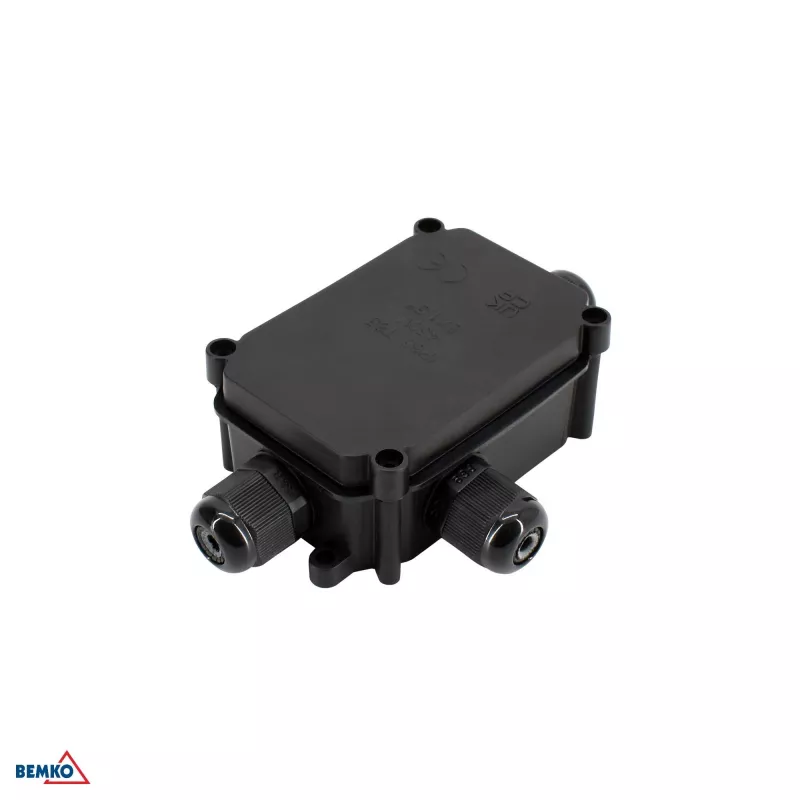

BEMKO E04-HP3-PG9-IP66 Scatola di derivazione stagna con 3 pressacavi IP66

The BEMKO E04-HP3-PG9-IP66 is a high-quality hermetic junction box designed for reliable electrical connections in demanding environments. With an IP66 rating, it offers complete protection against dust and powerful water jets, making it ideal for outdoor and industrial applications. The box comes pre-equipped with three M16 cable glands, ensuring easy and secure cable entry.

Advantages

This junction box provides exceptional durability and safety. Its robust ABS construction and stainless steel lid screws ensure long-lasting performance. The IP66 and IK07 ratings guarantee protection against harsh weather and mechanical impacts. The self-extinguishing, halogen-free material enhances fire safety, while UV resistance ensures suitability for outdoor use.

Suitable for

• Outdoor electrical installations
• Industrial wiring and connections
• Lighting and power distribution systems
• Telecommunications and network infrastructure
• Automation and control systems

Key specifications

• Brand: BEMKO
• Model: E04-HP3-PG9-IP66
• EAN: 5900280977496
• IP Protection Rating: IP66
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Number of Cable Glands: 3
• Cable Gland Size: M16
• External Dimensions (L x W x H): 80 x 80 x 40 mm
• Internal Dimensions (L x W x D): Approx. 72 x 72 x 35 mm
• Color: Grey (RAL 7035)
• Lid Type: Screw-on
• Lid Screw Material: Stainless Steel
• Operating Temperature Range: -25°C to +60°C
• Impact Resistance: IK07
• Flame Retardancy: Self-extinguishing, UL94-V2
• UV Resistance: Yes
• Halogen-Free: Yes
• Rated Insulation Voltage: 690 V AC
• Mounting Type: Surface Mount
• Seal Material: EPDM
• Standards Compliance: EN 60670-1, EN 60670-22
• Cable Entry Method: Pre-drilled holes for glands

Recommendations

For optimal performance, ensure proper cable gland tightening and use appropriate cable diameters. This junction box is suitable for both indoor and outdoor use, but avoid submersion. Always follow local electrical codes and regulations during installation.
