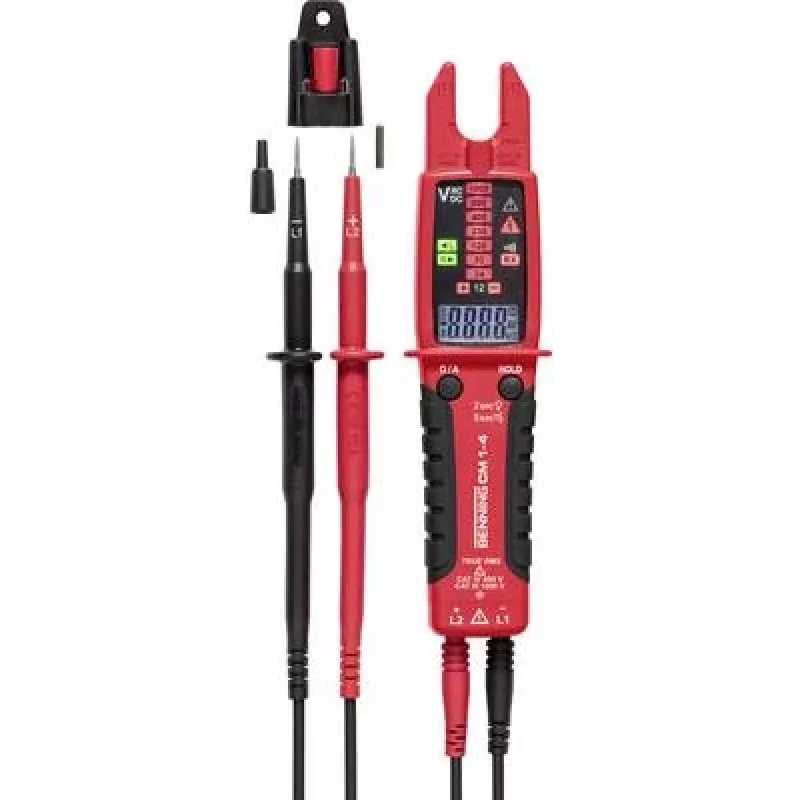

BENNING CM 1-4 pinza amperometrica digitale CAT III 1000V / CAT IV 600V, 6000 counts, True RMS 044686

Digital clamp meter for AC/DC current up to 600 A with 6000-count display and True RMS measurement. CAT III 1000 V / CAT IV 600 V safety rating for industrial and building installations.

Advantages

Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and temperature. Auto-ranging with data hold and backlit LCD. Jaw opening of 30 mm accommodates large conductors.

Suitable for

• Electricians and maintenance technicians
• Industrial and commercial electrical work
• HVAC and building installation testing

Key specifications

• Display counts: 6000
• True RMS: Yes
• AC current: 0.1 A – 600 A
• DC current: 0.1 A – 600 A
• AC voltage: 0.1 mV – 1000 V
• DC voltage: 0.1 mV – 1000 V
• Resistance: 0.1 Ω – 60 MΩ
• Capacitance: 1 nF – 6 mF
• Frequency: 0.01 Hz – 60 kHz
• Temperature: -40 °C to +400 °C
• Jaw opening: 30 mm
• Continuity test: Yes
• Diode test: Yes
• Auto ranging: Yes
• Data hold: Yes
• Display type: LCD with backlight

Recommendations

For reliable clamp measurements in demanding electrical environments, the BENNING CM 1-4 offers True RMS accuracy and a wide range of functions in a robust design.
